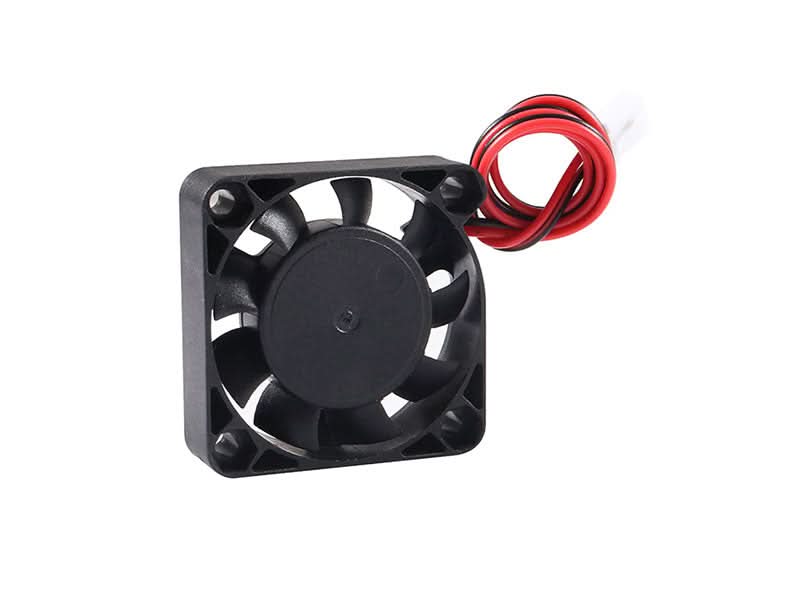

12V Fan 4010 for 3D Printer

DESCRIPTION

The 12V Fan 4010 is a compact, high-performance DC cooling fan designed for precision thermal management in space-constrained applications. Measuring 40 x 40 x 10mm, this fan delivers reliable, targeted airflow where it is needed most — making it the go-to cooling solution for 3D printer hotends, stepper motor drivers, electronic control boards, heat sinks, HTPC systems, and embedded computing platforms such as the Raspberry Pi.

The 4010 form factor strikes the ideal balance between compact dimensions and effective airflow output, making it a preferred choice for OEM builds and DIY electronics projects alike. The internal driver circuit is housed entirely within the fan body, requiring only a 2-wire power connection for operation — keeping installation clean and straightforward.

TECHNICAL DETAILS

• Rated Voltage: DC 12V (Operating range: 7V – 13.5V)
• Rated Current: 0.10A – 0.14A (±10%)
• Fan Speed: 5,500 – 7,000 RPM (±10%)
• Airflow: 6.86 – 7.9 CFM
• Noise Level: 22 – 27 dBA
• Service Life: Up to 50,000 hours
• Connector: 2-Pin XH2.54
• Cable Length: 100mm

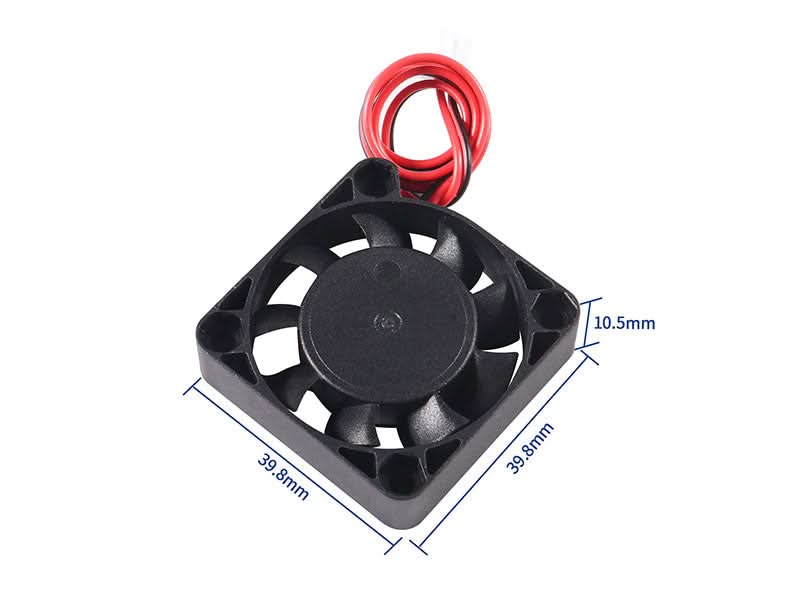

• Dimensions: 40 x 40 x 10mm
• Frame Material: ABS Plastic

SHIPPING LIST

• 1x 12V Fan 4010
