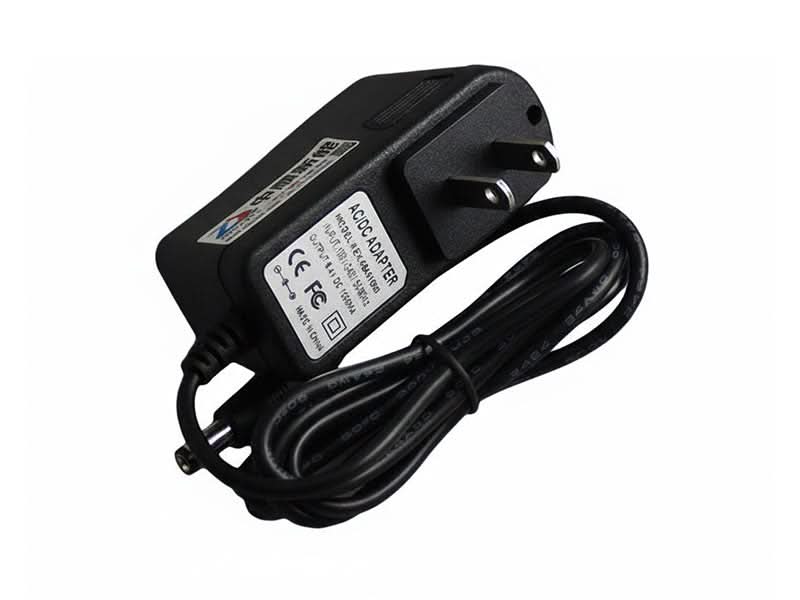

7.4V Lithium-Ion Battery Charger

DESCRIPTION

A 7.4V Lithium-Ion Battery Charger is a specialized power management device designed to safely and efficiently charge two-cell (2S) Li-ion or Li-Po battery packs. Because Lithium-Ion chemistry is sensitive to overvoltage and thermal instability, these chargers utilize a precise Constant Current / Constant Voltage (CC/CV) charging algorithm.

Whether used in RC vehicles, medical devices, or portable electronics, a 2S charger ensures that each cell reaches its peak voltage of 4.2V, resulting in a total pack voltage of 8.4V when fully charged.

FEATURES

• Over-Voltage Protection (OVP): Prevents the cells from exceeding 4.2V, which could lead to thermal runaway.
• Short-Circuit Protection: Automatically cuts power if a short is detected in the output.
• Reverse Polarity Protection: Protects the circuitry if the battery is connected incorrectly.
• LED Status Indicators:
  • Solid Red: Charging in progress.
  • Solid Green: Fully charged / Standby.

APPLICATIONS

• RC Hobbyists: Powering cars, drones, and boats.
• Professional Equipment: Wireless microphones and portable scanners.
• Lighting: High-lumen LED bicycle lights and headlamps.
• Robotics: Arduino and Raspberry Pi-based mobile robots using 2S packs.

TECHNICAL DETAILS

• Input Voltage: 110V - 240V AC
• Output Voltage: 8,4V DC (Nominal 7.4V)
• Charging Current: 1A

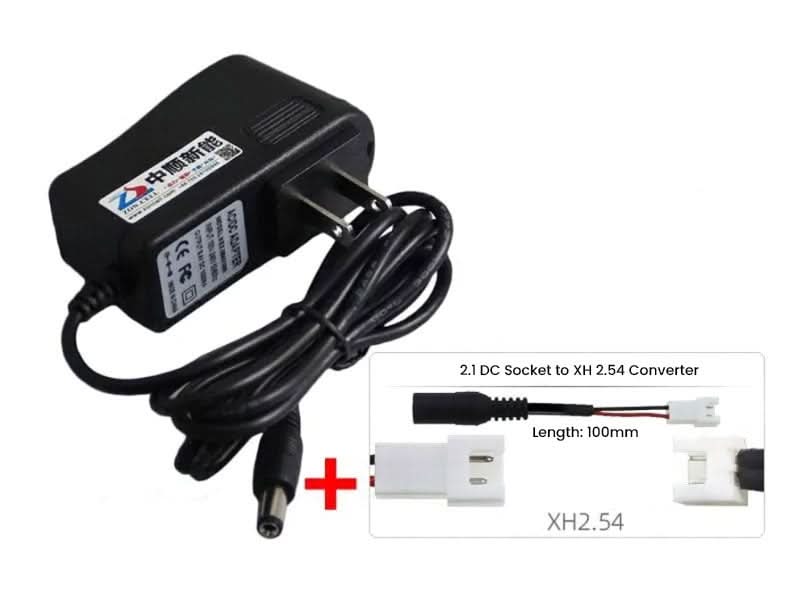

SHIPPING LIST

• 1x 7.4V Lithium-Ion Battery Charger
• 1x 2.1 DC Socket to XH 2.54 Converter
