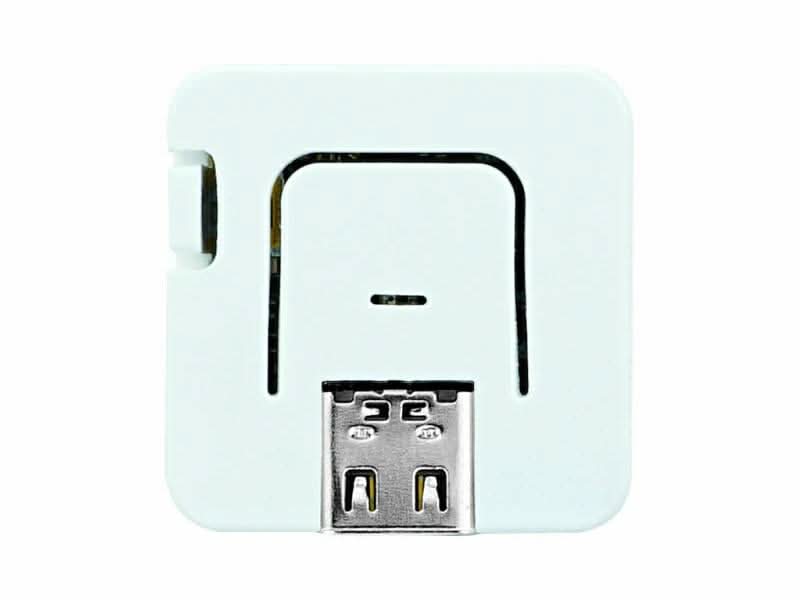

AtomS3 Lite ESP32S3 Dev Kit

DESCRIPTION

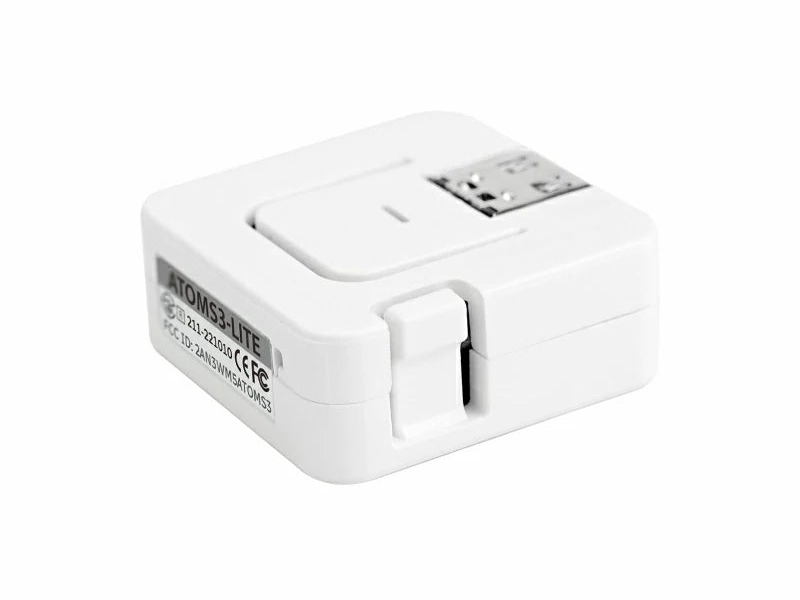

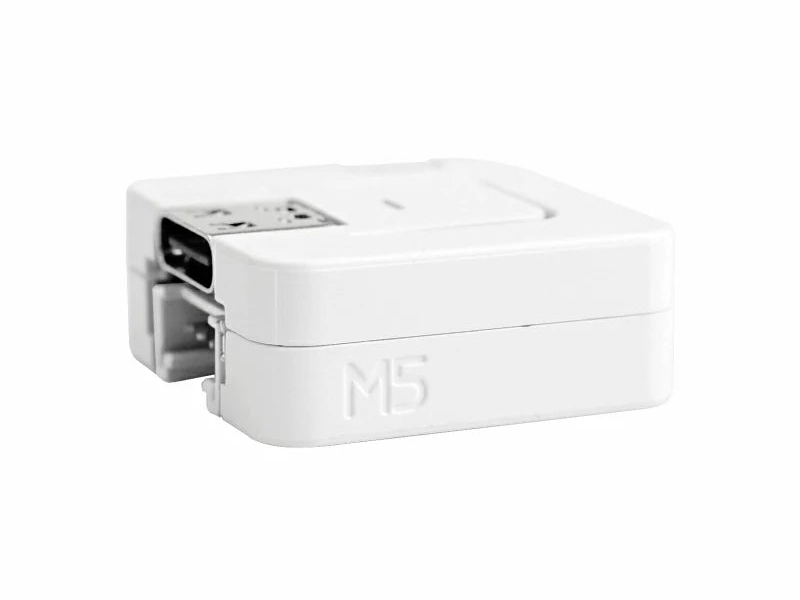

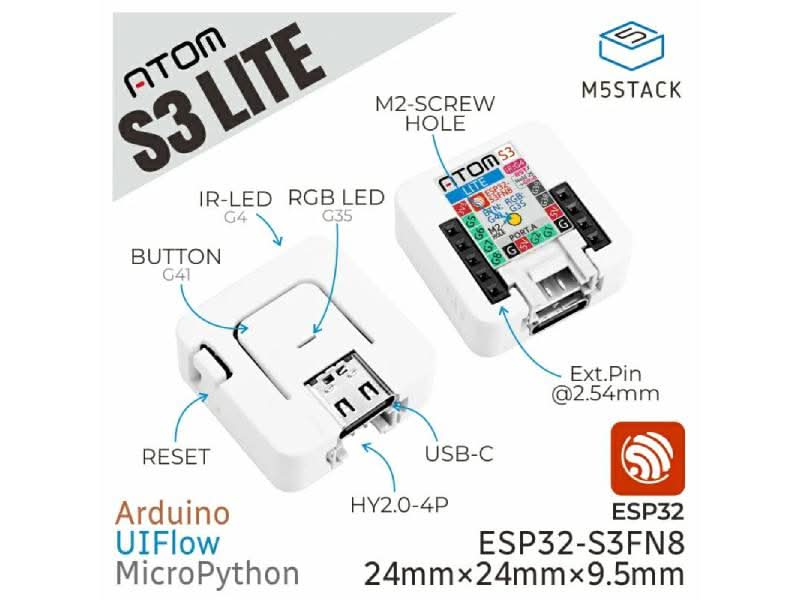

AtomS3-Lite is a programmable controller of the Atom series within the M5Stack development kit lineup, featuring ESP32-S3 as the main controller and measuring just 24.0 x 24.0 x 9.5mm. It adopts the ESP32-S3FN8 solution with 8MB SPI flash, integrated Wi-Fi, built-in 3D antenna, and a 5V to 3.3V power circuit. The device offers an IR transmitter LED, RGB status indicator, button, and HY2.0-4P interface. Power pins and six GPIO female headers are routed out at the bottom for easy expansion. The onboard USB Type-C port enables program download and serial communication, and an M2 screw hole on the back provides mounting options. This module is ideal for various embedded smart device applications.

FEATURES

• Developed based on ESP32-S3FN8
• Built-in USB download function
• Programmable button
• Infrared transmission function
• Expandable pins and interfaces
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

APPLICATIONS

• IoT Nodes
• Microcontrollers

TECHNICAL DETAILS

• SoC: ESP32-S3FN8
• Flash: 8MB
• RGB: WS2812C-2020
• DC-DC: SY8089
• Operating Temp: 0 ~ 40°C
• Power Voltage: 5V
• Power Method: Type-C
• Output Voltage: 3.3V

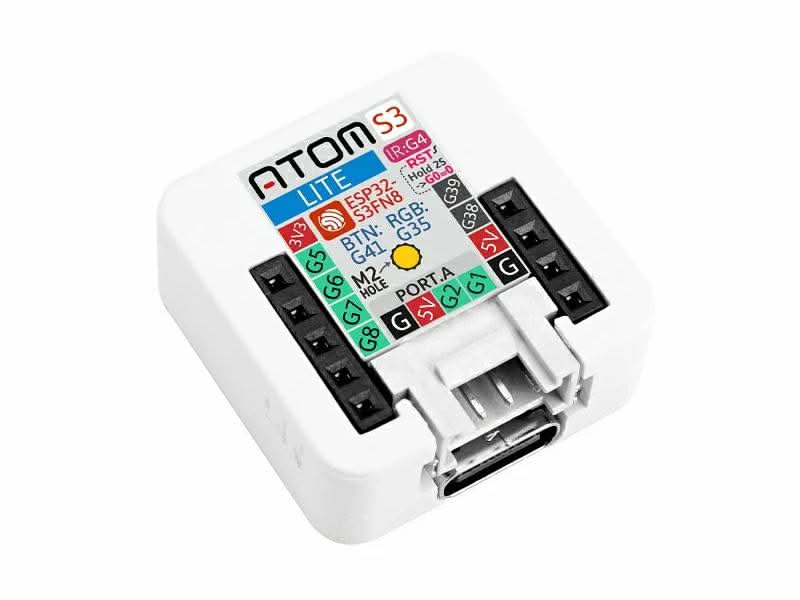

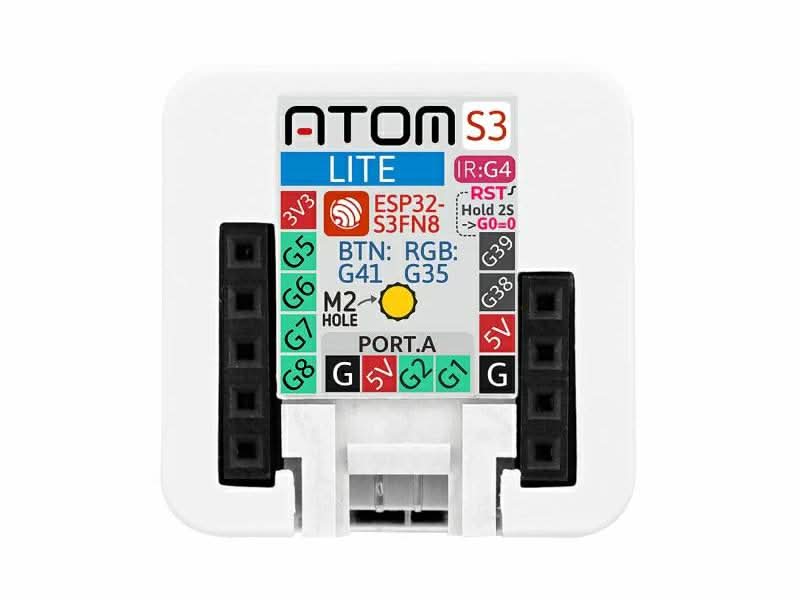

• IO Interface ×6: G5/G6/G7/G8/G38/G39

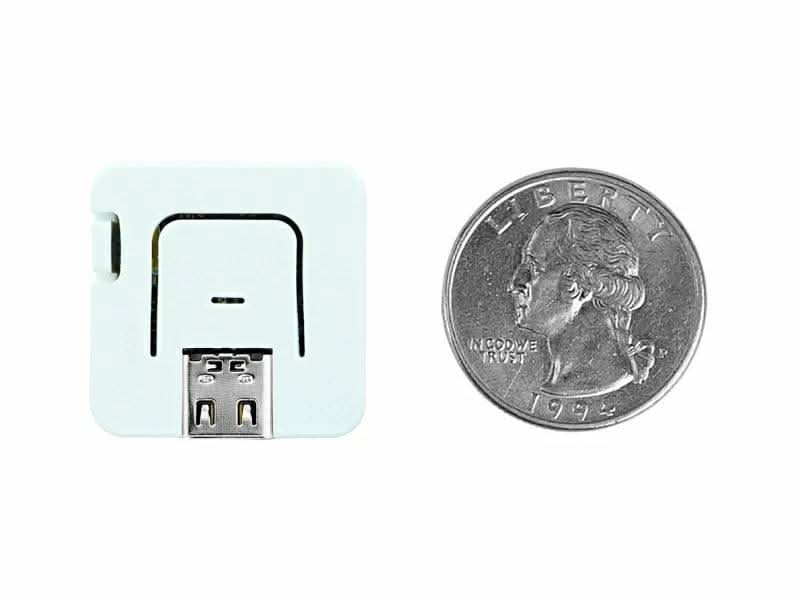

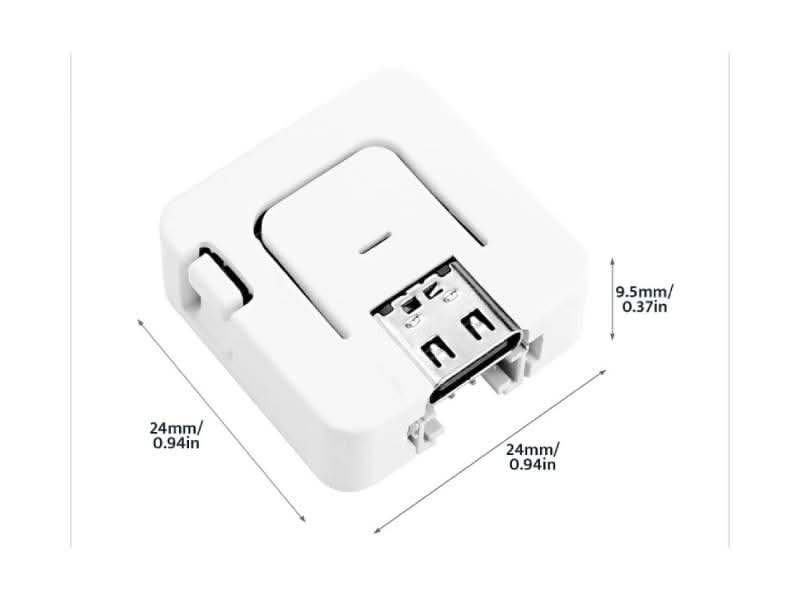

• Product Size: 24.0 x 24.0 x 9.5mm
• Product Weight: 5.3g
• Package Size: 85.0 x 65.0 x 12.2mm
• Gross Weight: 11.0g

DOCUMENTS

• Click here

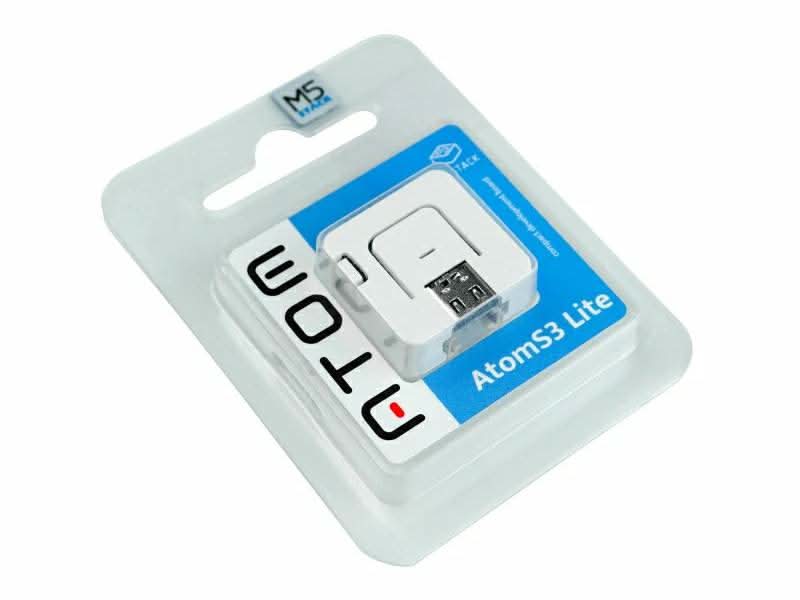

SHIPPING LIST

• 1x AtomS3-Lite
