Brass Inserts M2 M3 M4 M5 185pcs

DESCRIPTION

This 185-piece brass heat-set insert kit adds strong, reusable metric threads to 3D-printed and moulded plastic parts, covering five sizes from M2 to M5. Each knurled insert is pressed in with a soldering iron or heat-set tip, melting into the surrounding plastic and locking firmly in place as it cools, making it a workshop essential for makers, school D&T labs and prototyping teams across Singapore.

Double-band diagonal knurling resists both pull-out and rotation under screw torque, while the smooth lead-in collar at the base self-centres each insert in its pilot hole for straight, flush installation.

FEATURES

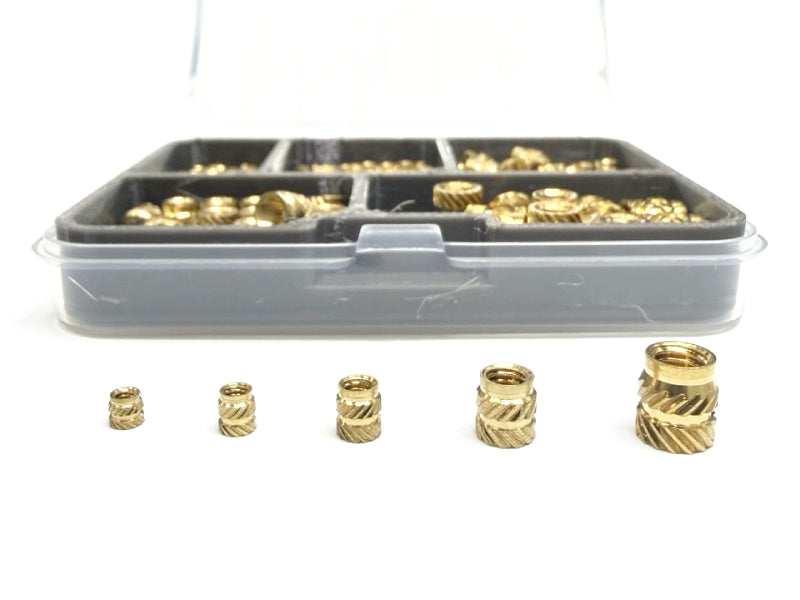

• 185 inserts across five metric sizes: M2 (50pcs), M2.5 (50pcs), M3 (50pcs), M4 (20pcs) and M5 (15pcs)
• Solid brass construction for fast, even heat transfer during installation
• Double-band diagonal knurling grips the plastic to resist pull-out and rotation
• Unknurled lead-in collar guides each insert into the hole for straight alignment
• Creates durable metal threads that withstand repeated screw assembly and disassembly

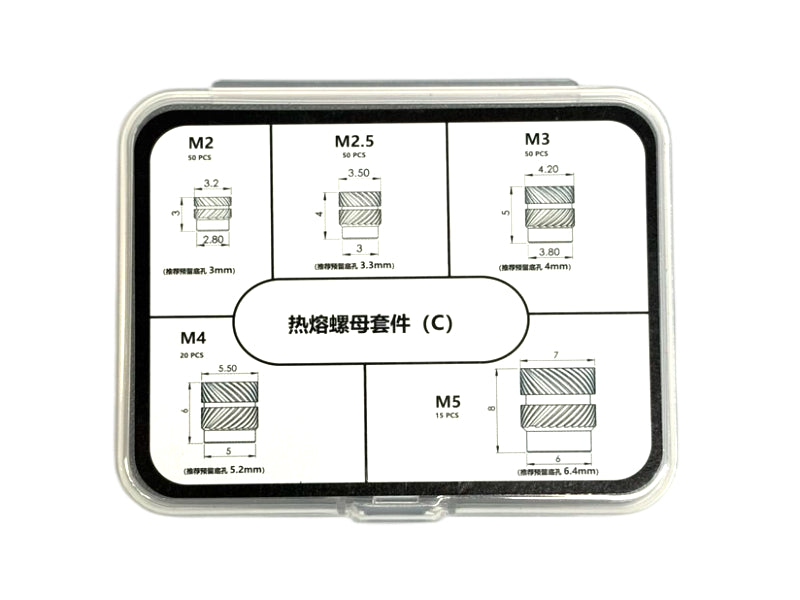

• Recommended pilot hole diameters printed on the lid for quick reference

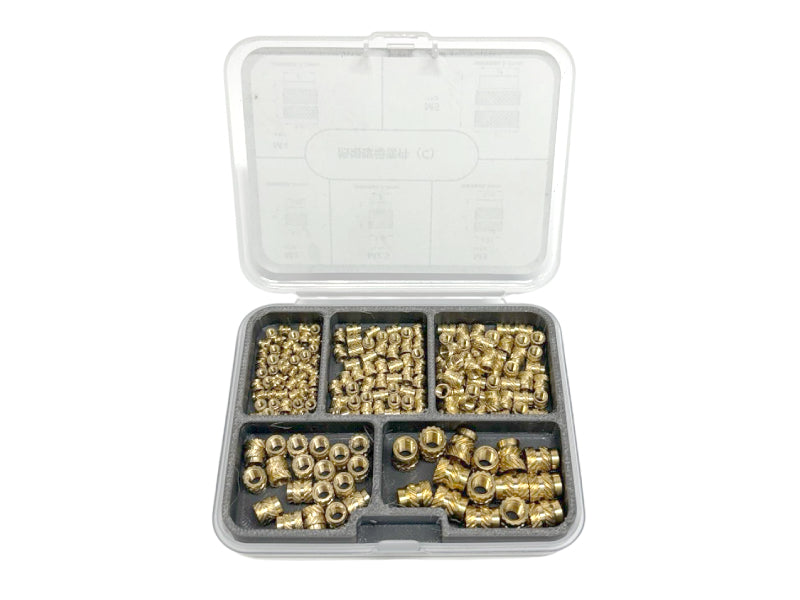

• Supplied in a clear compartment box with each size sorted separately

APPLICATIONS

• Adding reusable threaded mounting points to 3D-printed enclosures and cases
• Assembling printed robot chassis, brackets and camera mounts
• Securing PCBs and development boards to printed bosses and standoffs
• Repairing stripped screw holes in plastic housings
• Rapid prototyping and small-batch production of plastic parts
• School D&T, STEM and maker-space projects

TECHNICAL DETAILS

• Material: Brass
• Type: Knurled heat-set threaded insert
• Thread Sizes: M2, M2.5, M3, M4, M5
• Total Quantity: 185pcs
• Installation: Soldering iron or heat-set tip
• Compatible Materials: PLA, PETG, ABS, ASA and other thermoplastics
• M2 (50pcs): Outer Diameter 3.2mm, Length 3mm, Lead-in Diameter 2.8mm, Recommended Hole 3.0mm
• M2.5 (50pcs): Outer Diameter 3.5mm, Length 4mm, Lead-in Diameter 3.0mm, Recommended Hole 3.3mm
• M3 (50pcs): Outer Diameter 4.2mm, Length 5mm, Lead-in Diameter 3.8mm, Recommended Hole 4.0mm
• M4 (20pcs): Outer Diameter 5.5mm, Length 6mm, Lead-in Diameter 5.0mm, Recommended Hole 5.2mm
• M5 (15pcs): Outer Diameter 7.0mm, Length 8mm, Lead-in Diameter 6.0mm, Recommended Hole 6.4mm

SHIPPING LIST

• 50x M2 Brass Heat-Set Insert
• 50x M2.5 Brass Heat-Set Insert
• 50x M3 Brass Heat-Set Insert
• 20x M4 Brass Heat-Set Insert
• 15x M5 Brass Heat-Set Insert
• 1x Compartment Storage Box
