CardKB Mini Keyboard Programmable Unit V1.1 (MEGA8A)

DESCRIPTION

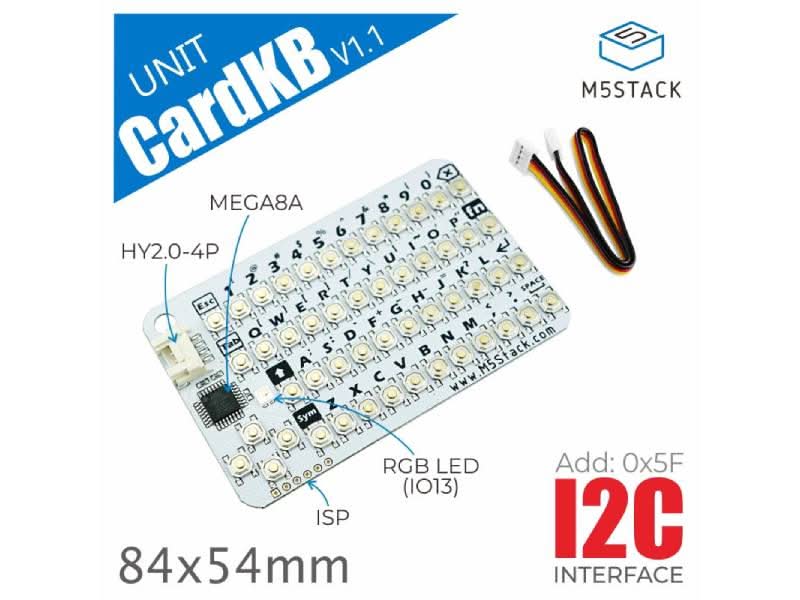

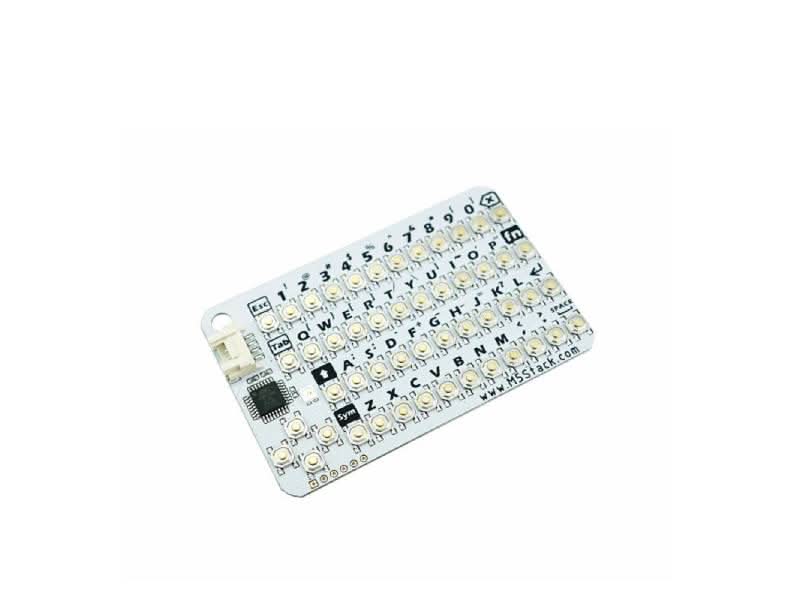

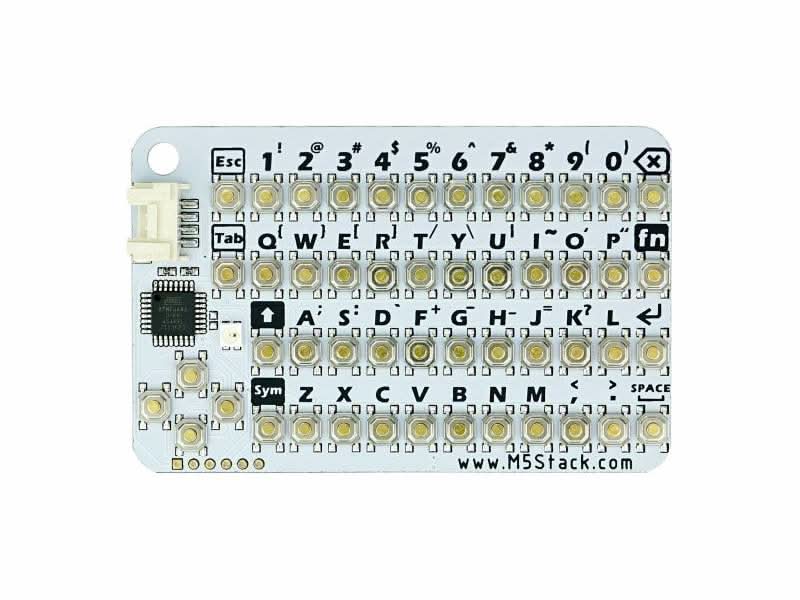

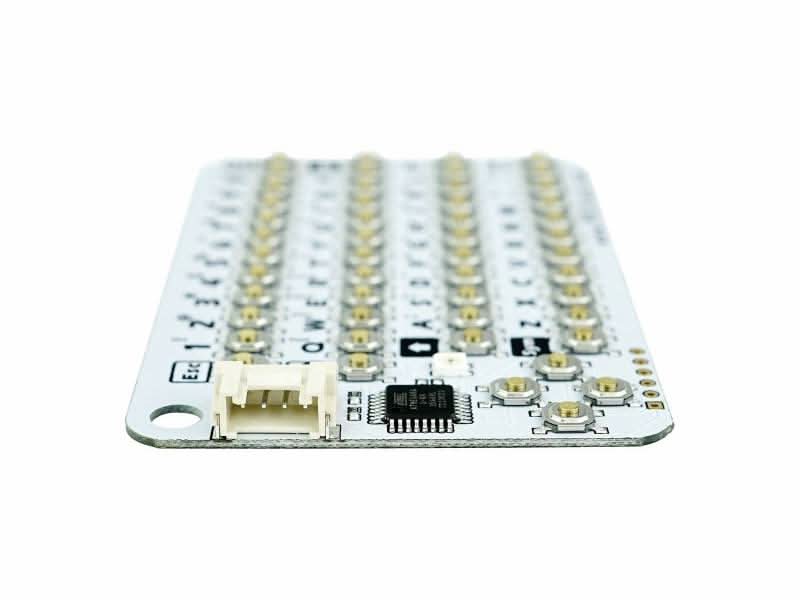

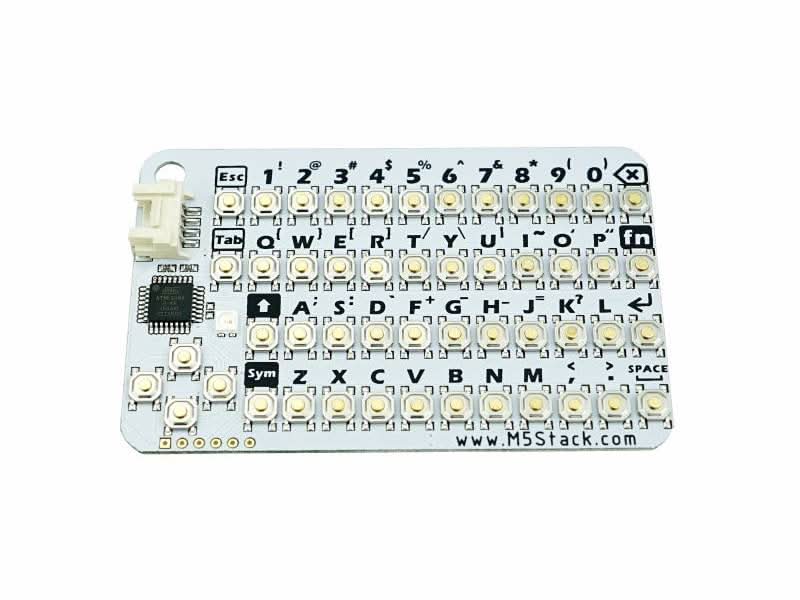

Unit CardKB v1.1 is a card-sized QWERTY 50-key PCB matrix keyboard that uses ATMega8A as the encoding MCU, with an output interface of I2C. It has one onboard RGB-LED to indicate keyboard status.

FEATURES

• Full keyboard input with multiple key combinations.
• HY2.0-4P interface, supports UIFlow and Arduino.

APPLICATIONS

• Keyboard peripheral for M5Stack Core

TECHNICAL DETAILS

• MCU: ATMega8A
• Number of Keys: 50
• RGB LED: 1 pc
• Communication Interface: I2C Communication @0x5F
• Product Size: 88.0 x 54.0 x 5.0mm
• Product Weight: 14.3g
• Package Size: 170.0 x 120.0 x 7.0mm
• Gross Weight: 18.0g

DOCUMENTS

• Click here

SHIPPING LIST

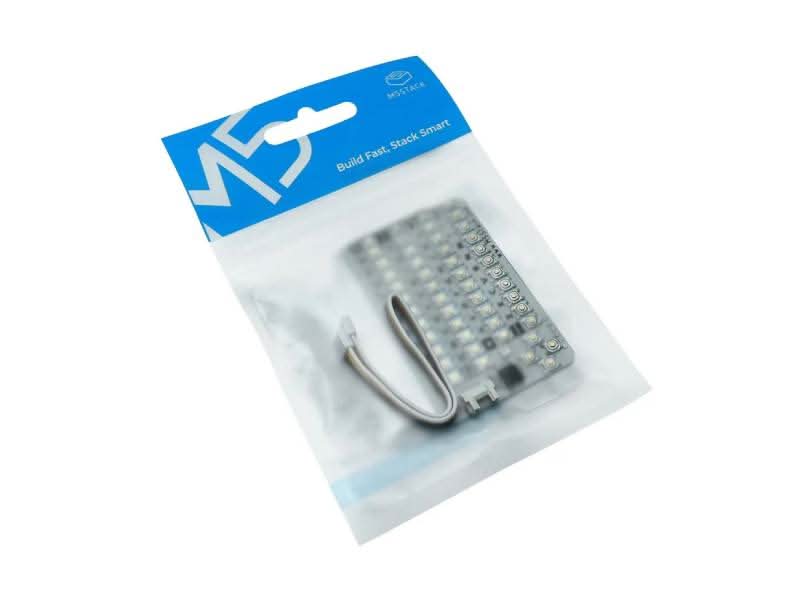

• 1x Unit CardKB v1.1
• 1x HY2.0-4P Grove connection cable (20cm)
