DESCRIPTION
This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.
The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

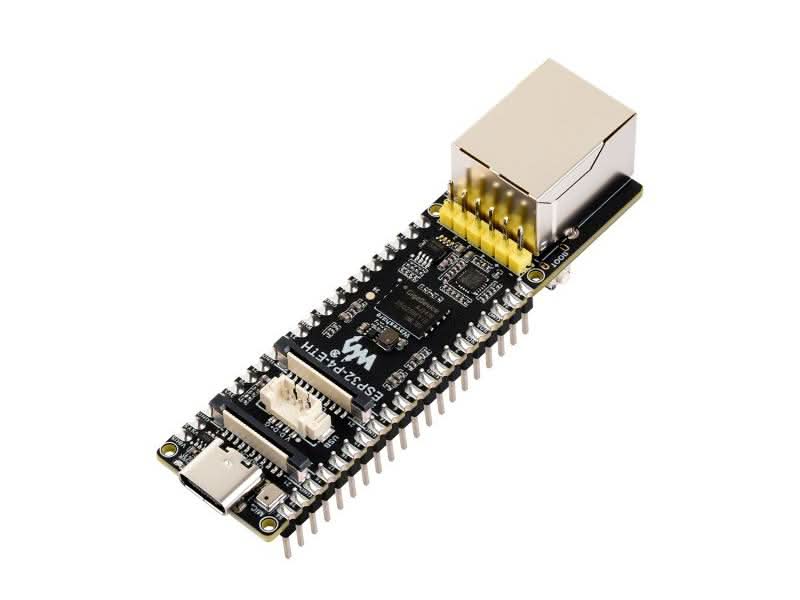

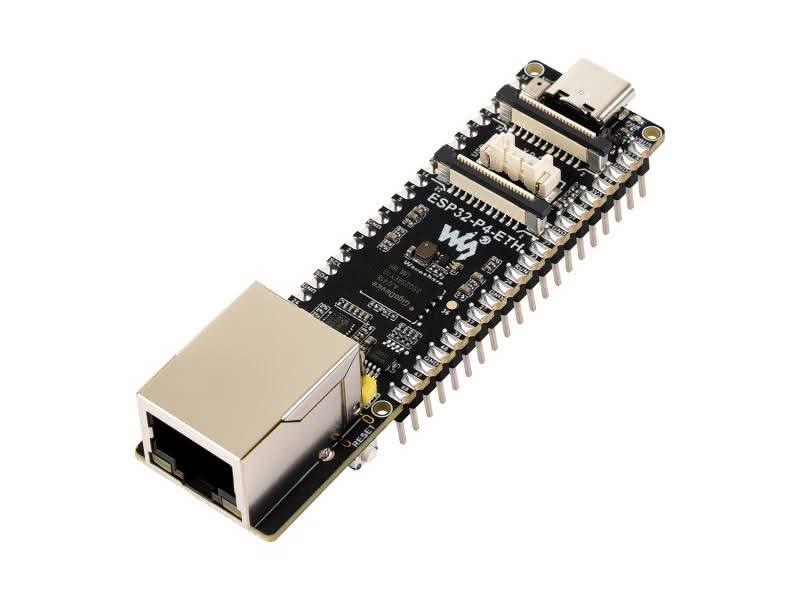

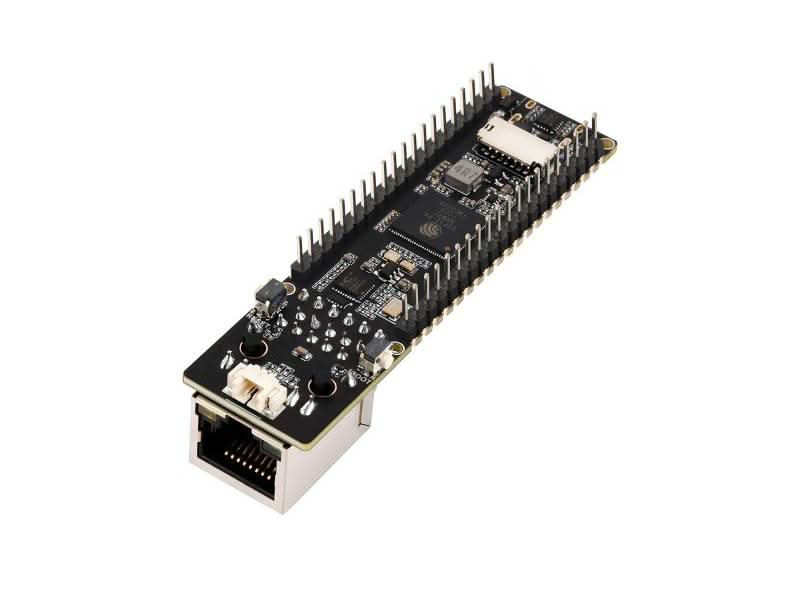

ESP32-P4-ETH DEVELOPMENT BOARD
High-performance Development Board Based On ESP32-P4
Rich Human-machine Interfaces
FEATURES
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG codecs, Pixel Processing Accelerator (PPA),
- Image Signal Processor (ISP) and H.264 video encoder
- 32MB PSRAM in the chip's package, onboard 32MB Nor Flash
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc.
- Adapting 2*20 GPIO headers with 27 x remaining programmable GPIOs
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
HIGHLY INTEGRATED AND POWERFUL PERFORMANCE
Adopts ESP32-P4 Module, onboard 32MB Nor Flash
TWO POWER SUPPLY METHODS
Supports both PoE and USB Type-C power supply
POE MODULE, SUPPORTS POE POWER SUPPLY
Provides Both Network Connection And Power Supply In Only One Ethernet Cable

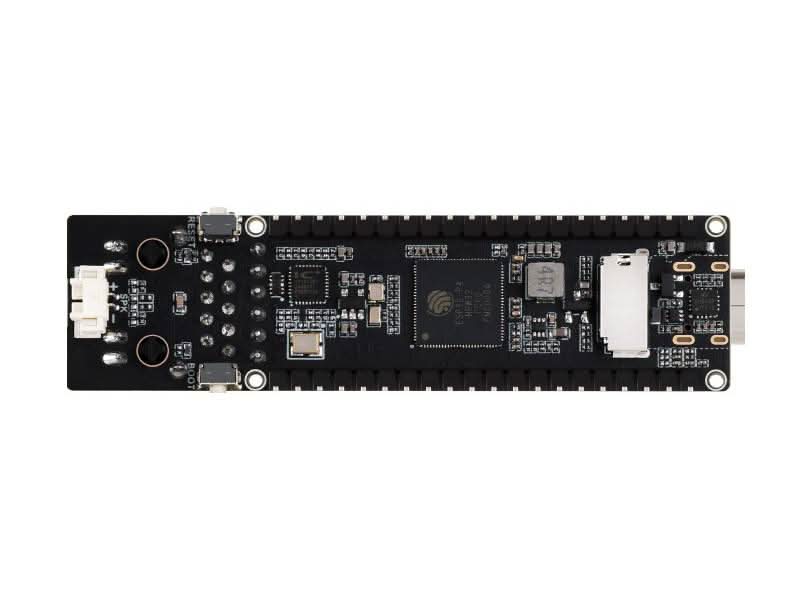

WHAT'S ON BOARD
-
ESP32-P4NRW32: ESP32-P4 chip, with 32MB PSRAM
- 100M RJ45 Ethernet port
- 32MB Nor Flash
-
Display interface: MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screens
-
Camera interface: MIPI-CSI (2-lane), supports OV5647 camera, etc.
-
Type-C port: for power supply, program burning
- Onboard microphone
-
Speaker header: MX1.25 2P connector, supports 8Ω 2W speaker
-
4PIN USB header: USB OTG 2.0 High Speed interface

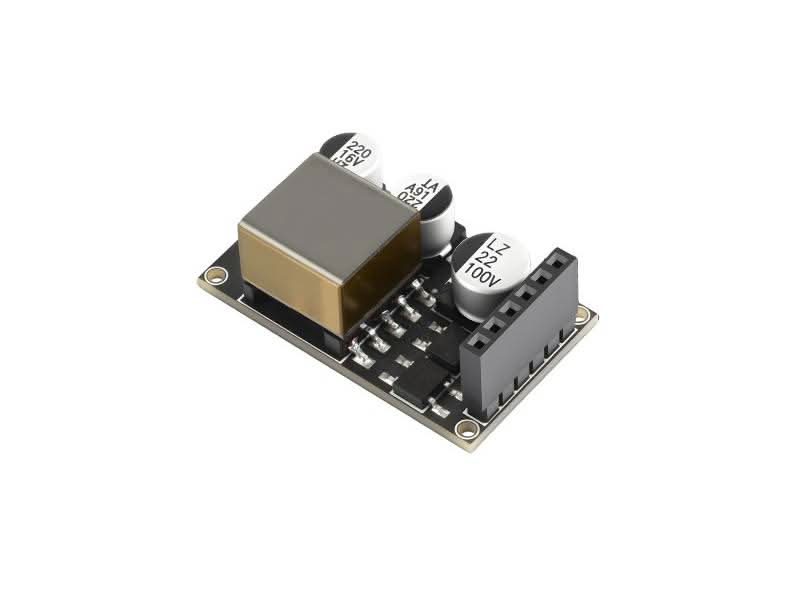

- PoE module & power supply header
-
BOOT button: Press it when powering on or resetting to enter download mode
- RST Reset button
- Power indicator
-
TF card slot: SDIO 3.0 interface protocol
PIN DEFINITION
OUTLINE DIMENSIONS
RESOURCES
SHIPPING LIST
- 1x ESP32-P4-ETH-M
- 1x PoE module
- 1x Screws pack
