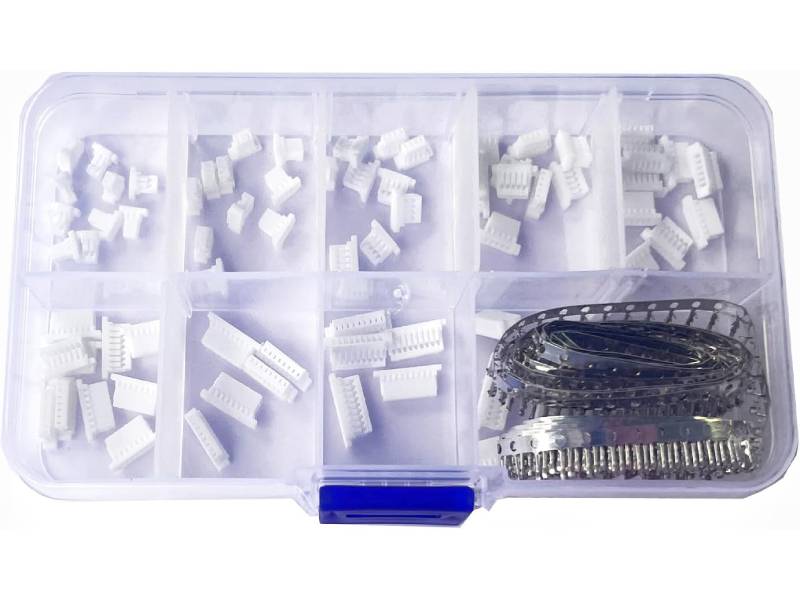

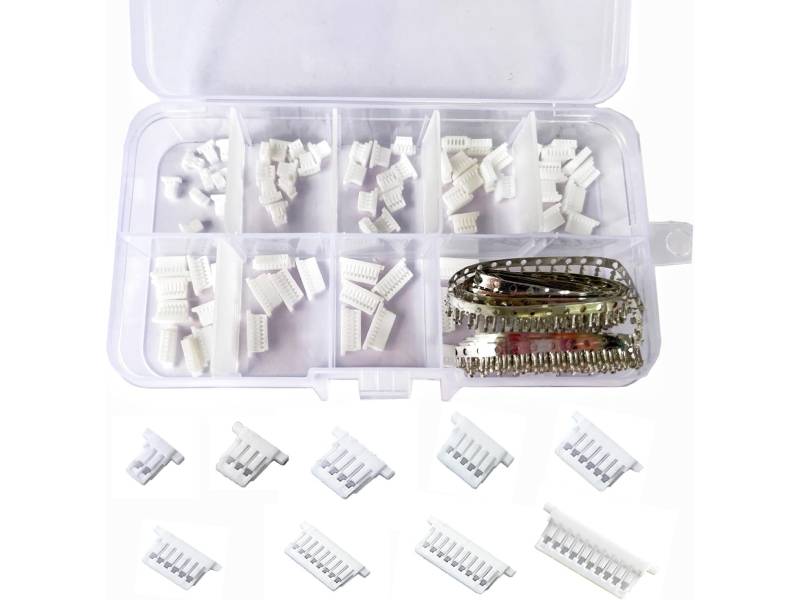

JST SH 1.0mm Connector Kit

DESCRIPTION

The JST SH 1.0mm Connector Kit gives makers and engineers a complete set of ultra-compact 1.0mm pitch connectors and matching crimp terminals for building custom wiring harnesses in space-constrained electronics projects. Commonly used for battery connections, sensor wiring, and internal board-to-board links, JST SH connectors are a staple in wearable electronics, drones, and compact IoT devices.

With housings from 2-pin through 10-pin and hundreds of crimp terminals included, this kit covers the vast majority of JST SH wiring needs in one purchase.

FEATURES

• 1.0mm pitch JST SH-style connector housings
• Pin counts from 2P through 10P covered in a single kit
• 420x crimp terminals included for extensive rework and prototyping
• Compact form factor ideal for space-constrained wiring
• Compatible with standard JST SH crimping tools

APPLICATIONS

• Wearable electronics and compact IoT device wiring
• Drone and RC battery/sensor connections
• Board-to-board internal wiring harnesses
• Robotics and small-scale prototyping
• Repair and rework of existing JST SH cable assemblies

TECHNICAL DETAILS

• Connector Type: JST SH 1.0mm pitch
• Pin Counts: 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P
• Crimp Terminals Included: 420x

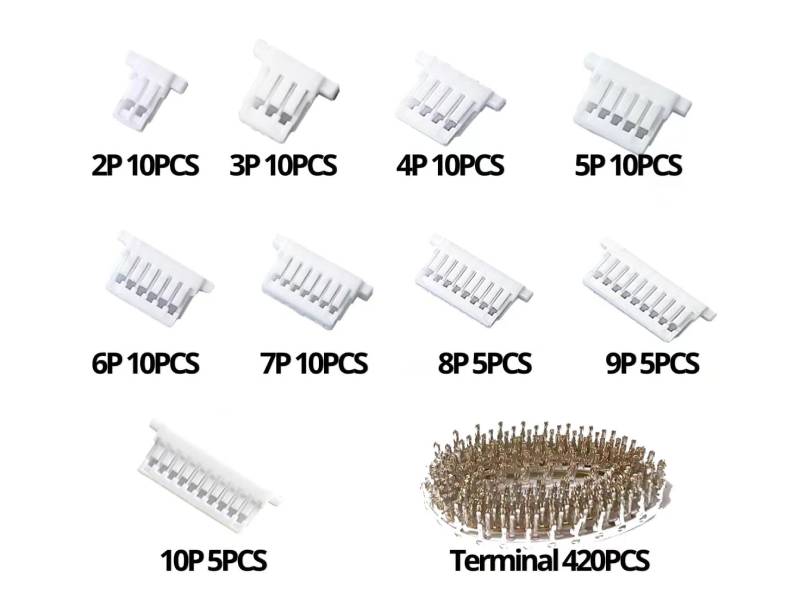

SHIPPING LIST

• 10x JST SH 1.0 Connector 2P
• 10x JST SH 1.0 Connector 3P
• 10x JST SH 1.0 Connector 4P
• 10x JST SH 1.0 Connector 5P
• 10x JST SH 1.0 Connector 6P
• 10x JST SH 1.0 Connector 7P
• 5x JST SH 1.0 Connector 8P
• 5x JST SH 1.0 Connector 9P
• 5x JST SH 1.0 Connector 10P
• 420x JST SH 1.0 Crimp Terminals
