DESCRIPTION

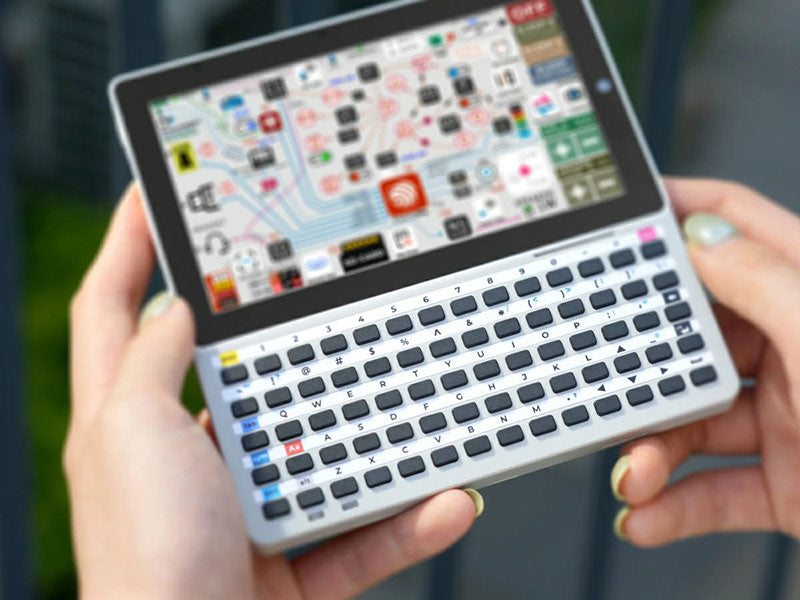

The Keyboard for Tab5 is a purpose-designed input accessory for the M5Stack Tab5 tablet, providing a full physical keyboard experience for text entry, command input, and interactive control. Tailored for Singapore's IoT, education, and industrial automation communities, it transforms the Tab5 into a more versatile and productive handheld terminal or HMI device.
The keyboard connects seamlessly to the Tab5, enabling comfortable data entry without relying on the touchscreen, making it particularly useful for field technicians and automation engineers.
FEATURES
- Designed specifically for the M5Stack Tab5 tablet — plug-and-play compatibility
- Compact layout optimised for handheld and desktop use
- Physical key input for faster, more accurate text entry versus touchscreen
- Lightweight and portable, suitable for field and lab environments
- Durable construction for repeated daily use
- Enhances Tab5 usability for terminal emulation, data logging, and HMI applications
APPLICATIONS
- Industrial HMI data entry and machine control with the Tab5
- Field data collection and form-filling in IoT deployments
- Education and lab environments requiring physical keyboard input
- Terminal emulation and command-line interfacing on the Tab5
- Productivity enhancement for portable computing and note-taking

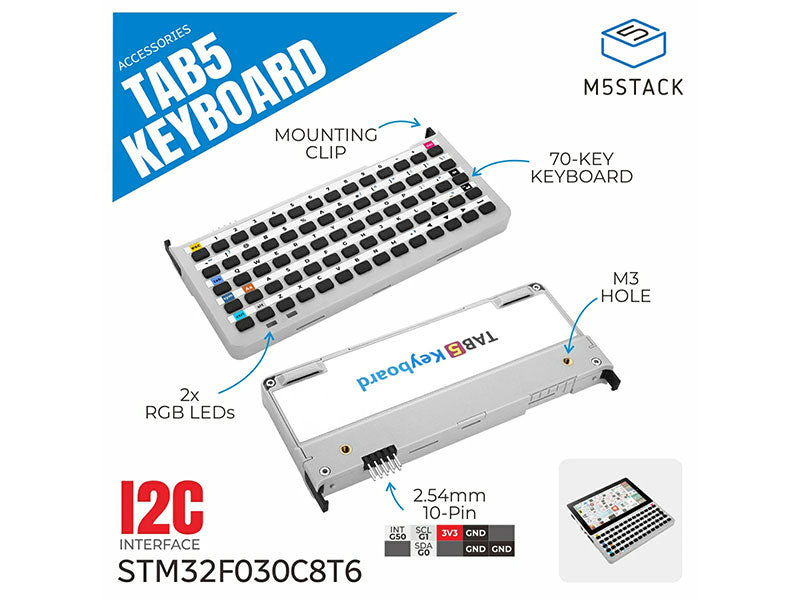

TECHNICAL DETAILS
- MCU: STM32F030C8T6

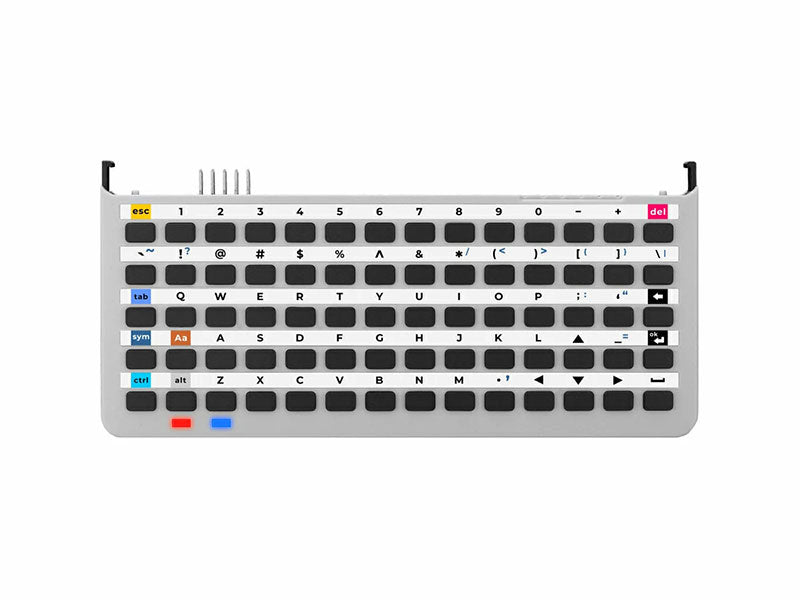

- Keys: 70-key keyboard
- I2C Address: 0x6D (default)
- RGB LED: 2 x WS2812E-1313

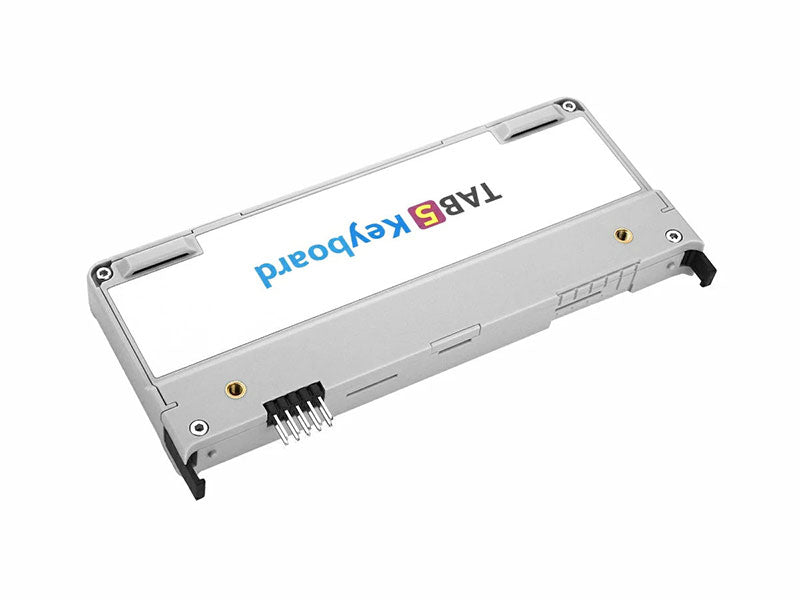

- Interface: 2 x 5 PIN header, 2.54mm pitch
- Standby Power: DC 3.3V@14.5mA
- Operating Power: RGB (white) maximum brightness: 3.3V@21.5mA, Input (RGB off): 3.3V@14.5mA
- Product Size: 128.0 x 59.4 x 13.1mm
- Product Weight: 65.2g
- Package Size: 147.0 x 82.0 x 16.5mm
- Gross Weight: 97.4g
