DESCRIPTION

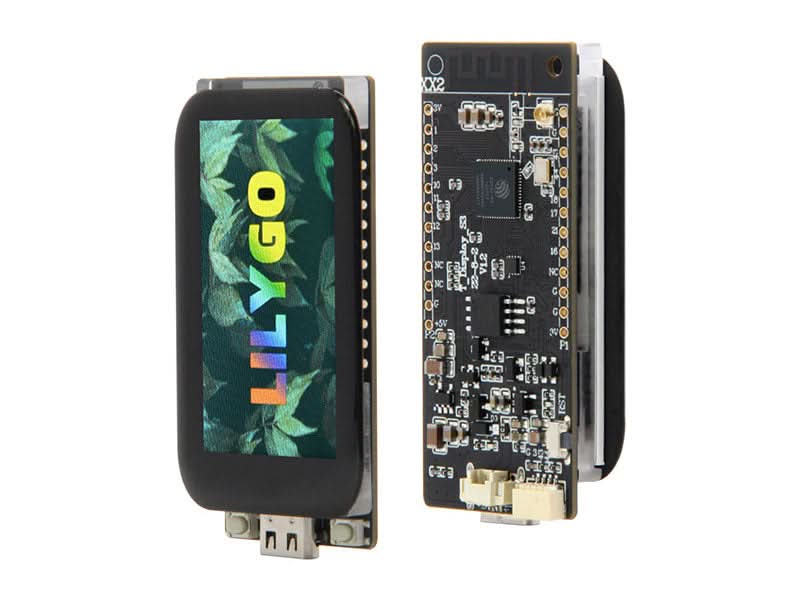

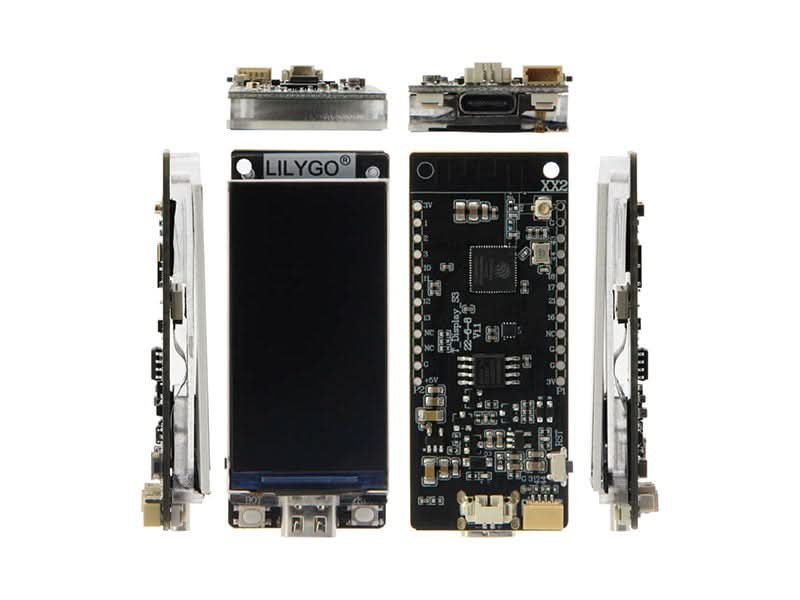

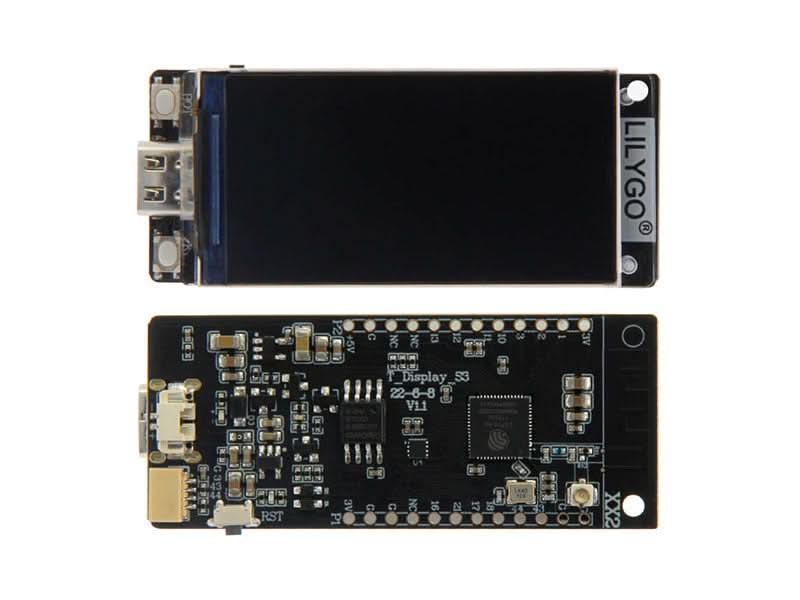

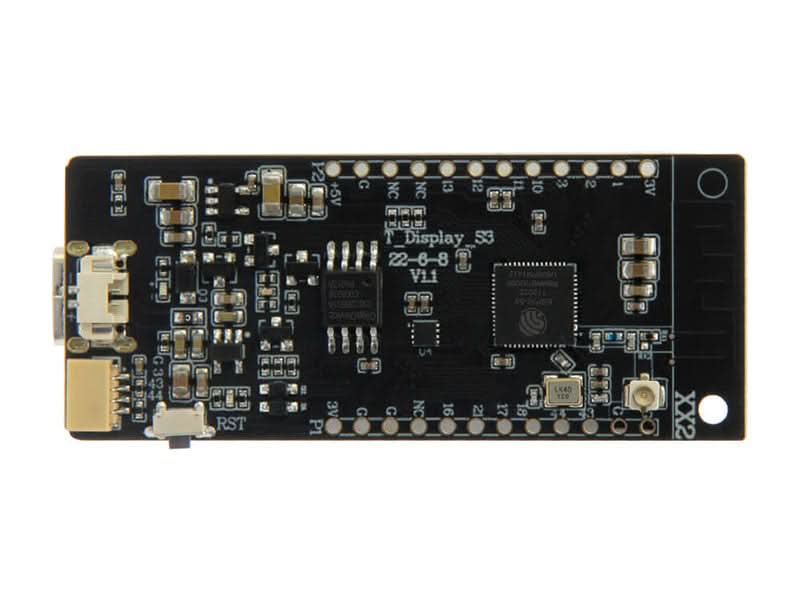

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
FEATURES
- Comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
- Screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
- Acrylic plate fixed.
- T-Display series design.
TECHNICAL DETAILS
- MCU: ESP32-S3R8 Dual-core LX7 microprocessor
- Wireless Connectivity: Wi-Fi 802.11, BLE 5 + BT mesh
- Programming Platform: Arduino-ide, Micropython
- Flash: 16MB
- PSRAM: 8MB

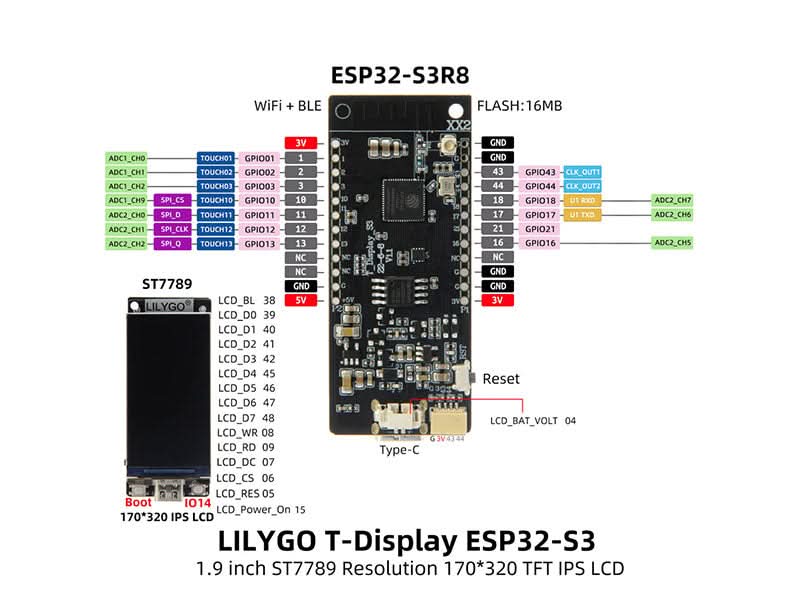

- Bat voltage detection: IO04
- Onboard functions: Boot + Reset + IO14 Button
- LCD: 1.9" diagonal, Full-color TFT Display
- Drive Chip: ST7789V
- Resolution: 170(H)RGB x320(V) 8-Bit Parallel Interface
- Working power supply: 3.3v
- Support: STEMMA QT / Qwiic, JST-SH 1.0mm 4-PIN
- Connector: JST-GH 1.25mm 2PIN

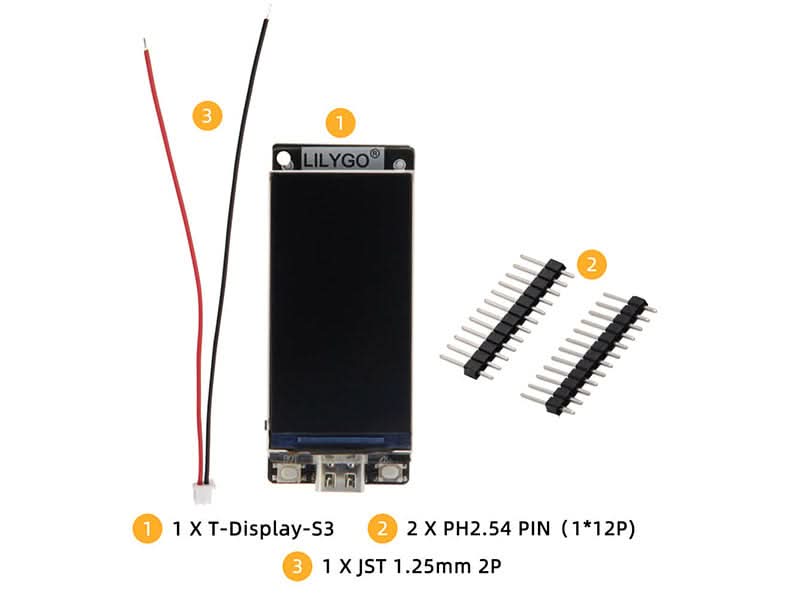

SHIPPING LIST
- 1x T-Display-S3
- 2x PH2.54 (1*12P)
- 1x JST 1.25mm 2P

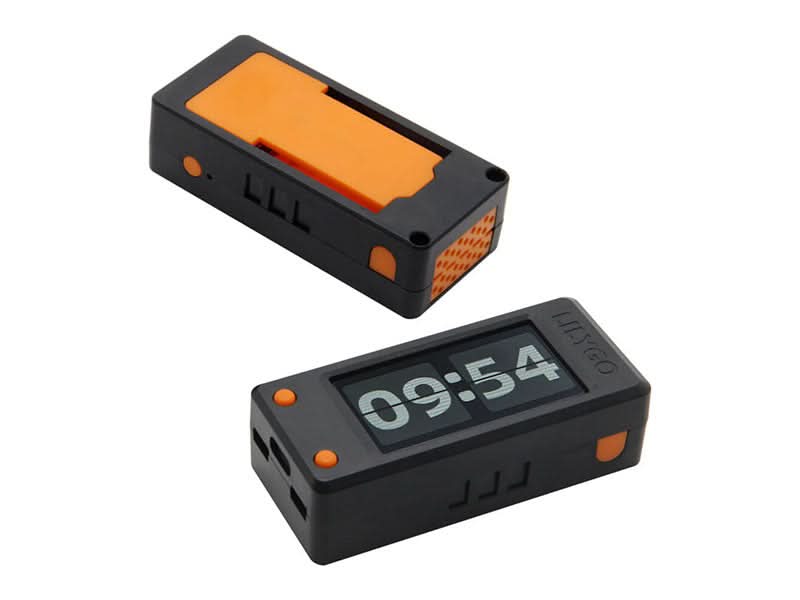

- 1x Black Shell
