DESCRIPTION
T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
FEATURES
- Comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
- Screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
- Acrylic plate fixed.
- T-Display series design.
APPLICATIONS
- DIY creation
- LoRa networking
- GPS positioning
- IOT terminal control
- Stem education product

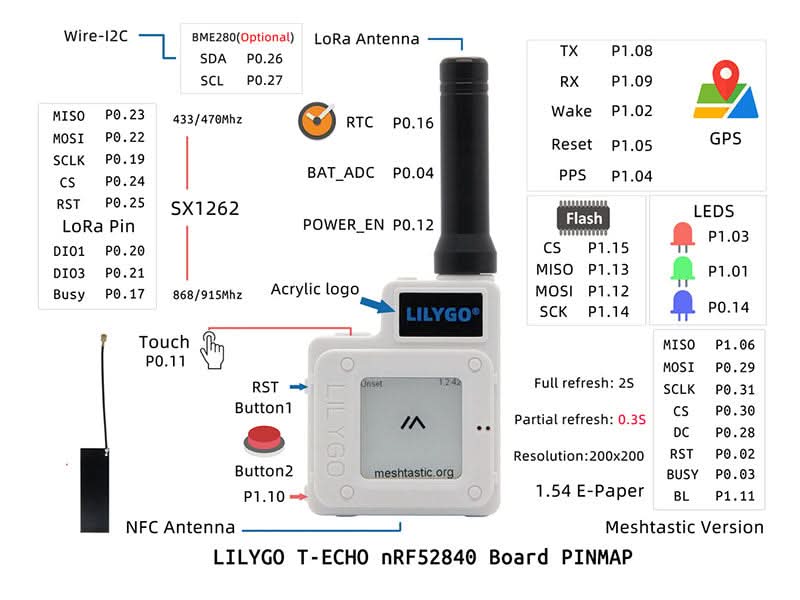

TECHNICAL DETAILS
- MCU: NRF52840
- FLASH: 2MB
- RAM: 2MB
- Bus Interfaces: UART, SPI, TWI, PDM, 12S, QSPI
- Wireless Connectivity: Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee
With BME280 temperature pressure sensor
- SX1262 LoRa Transceiver: Long Range, Low Power
- Frequency: 915Mhz
- Enclosure material: ABS
- Version: BME280 version
- Battery Capacity: 850mAh
1.54-inch SPI E-Paper Display
- Grey level: 2
- Resolution: 200x200
- Full refresh time: 2s
L76K Multi-System Positioning GNSS module
- Support System: GPS, GLONASS, BeiDou, QZSS
- Support Function: LNA, SAW Filter, AGNSS, 1PPS, Improved receiving and anti-interference attributes

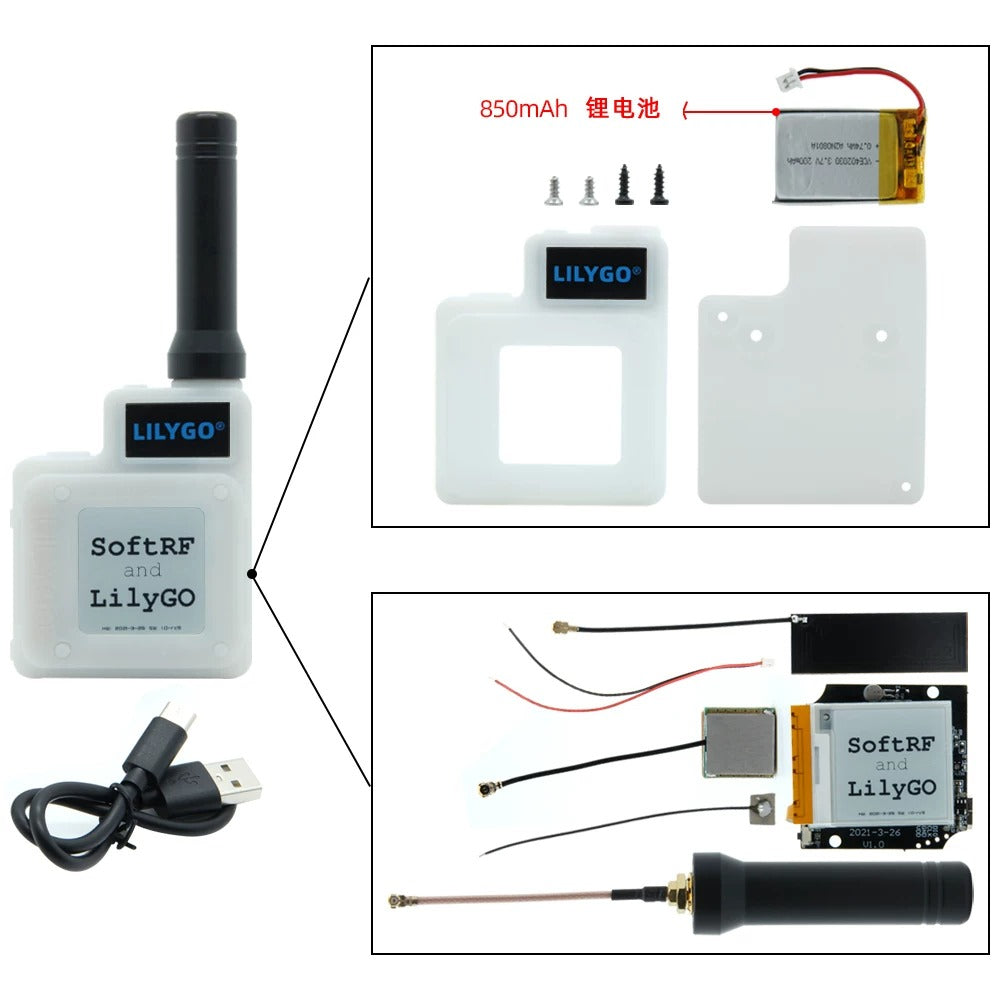

SHIPPING LIST
- 1x LILYGO T-Echo Meshtastic
- 1x USB A-C Cable
