DESCRIPTION
Add a measuring device to your project with this load cell. You can measure accurately the weight of objects up to 1 gram accuracy. There are 4 screw holes on the load cell, 2 for base mounting and 2 for plate mounting where your object will sit on.

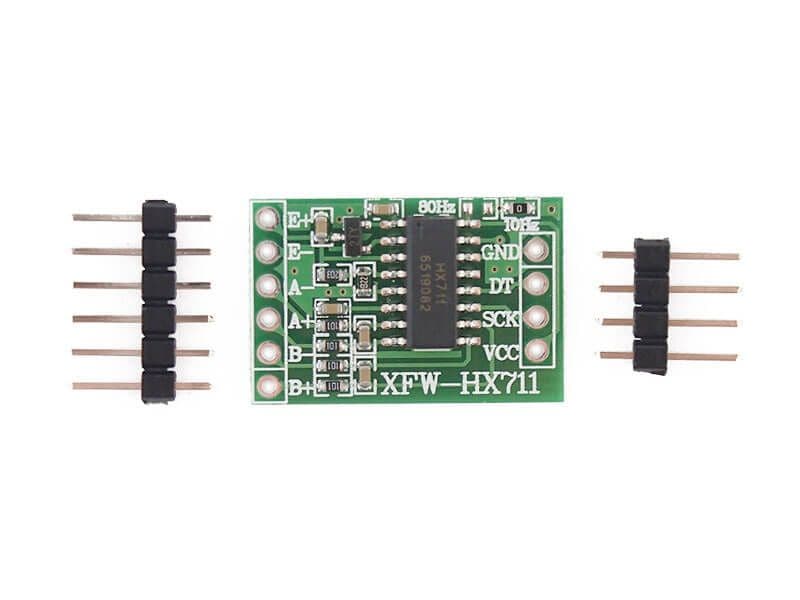

Simply pair it with a load cell amplifier HX711 and you can start reading the values into your microcontroller.
TECHNICAL DETAILS
- Rated Load: 1kg 5kg 10kg 20kg
- Rated Output: 2.0±10%mV/V
- Excitation: 5 - 15v
- Zero Balance: ±5% R.O.
- Nonlinearity: ±0.02% R.O.
- Hysteresis: ±0.015% R.O.
- Nonrepeatability: ±0.015 R.O.
- Creep(30min): ±0.03 R.O.
- Safe Overload: 150% F.S.
- Ultimate Overload: 200% F.S.
- Compensated Temperature: -10°C to +40°C
- Operating Temperature: -20 to 60°C
- Temperature Shift Zero: ±0.05% R.O./10°C
- Temperature Shift Span: ±0.03% R.O./10°C
- Input Resistance: 1130±20Ω
- Output Resistance: 1000±10Ω
- Insulation Resistance: > 2000MΩ
- Ingress Protection: IP65
- Material: Aluminum Alloy
- Mounting Screws: M4
- Wiring Code: Red--E+ Black--E- Green--S+ White--S-
SHIPPING LIST
- 1x Load Cell 1kg 5kg 10kg 20kg
>
