Load Cell Kit 10kg
Load Cell Kit 10kg
Load Cell Kit 10kg
Load Cell Kit 1kg 10kg

Load Cell Kit 1kg 10kg

Option | 1kg Assembled

Only 2 left!
$18.00
$18.00
Sold Out
Product Details
  • Variant: 1kg Assembled
  • SKU: SEN-WEI-015
  • In Stock: 2

Load Cell Kit 1kg 10kg

$18.00
$18.00
Sold Out

Option

1kg Assembled

DESCRIPTION

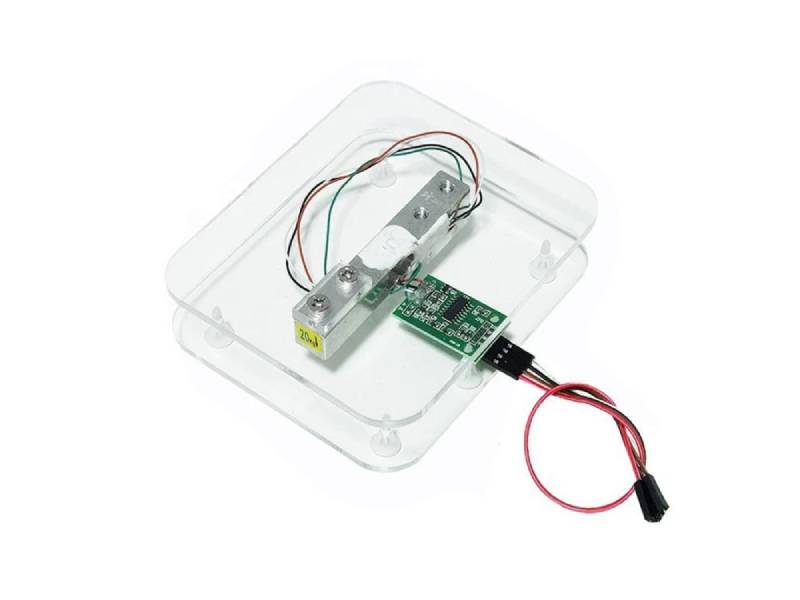

Add a measuring device to your project with this load cell. You can measure accurately the weight of objects up to 1 gram accuracy. The load cell has been assembled nicely into a kit with 2 acrylic plates and a HX711 A/D converter for your convenience so you can directly connect to Arduino to get started.


TECHNICAL DETAILS

  • Operation Voltage: 3.3V - 5V
  • Operation Current: 1.5mA
  • Load Cell Rating: 1kg / 10kg
  • Tray Diameter: 10cm
  • Kit Height: 3.5cm
  • AD Module: HX711 (24 bit high precision A/D converter)
  • Post-Calibration Accuracy: Within 1g


SHIPPING LIST

  • 1x Load Cell Kit Assembled
  • 4x Jumper Wire Female-Female 20cm
