DESCRIPTION

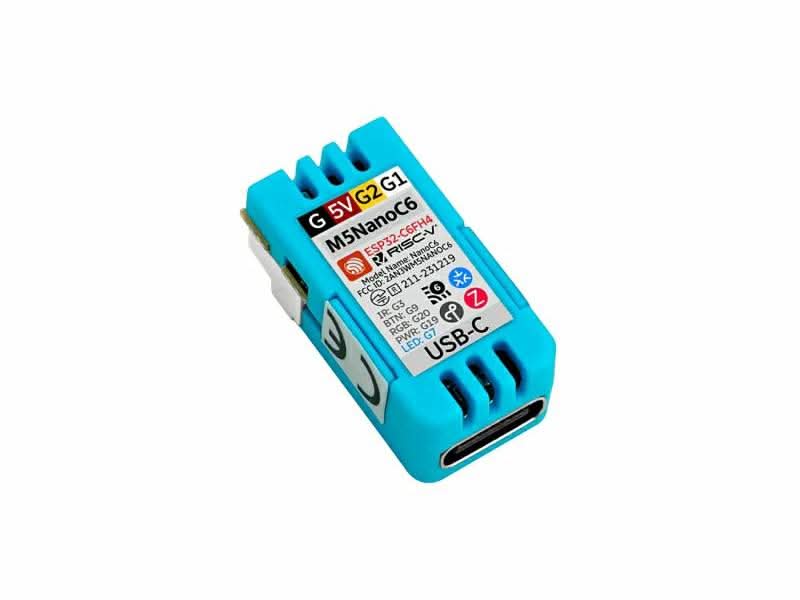

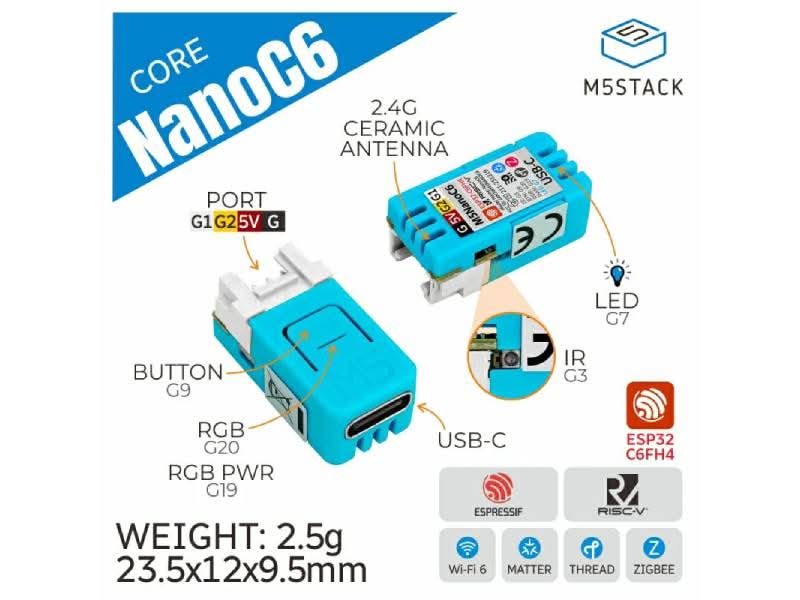

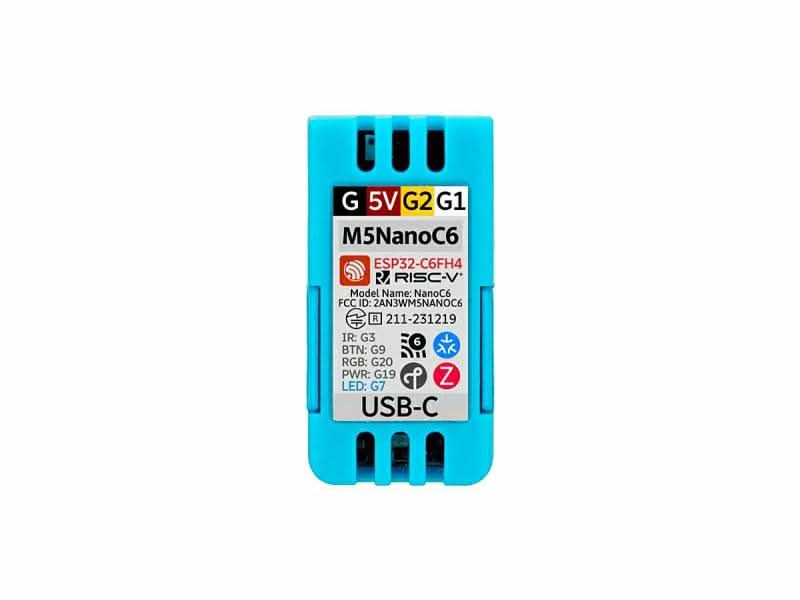

NanoC6 is a micro and low-power IoT development board in the M5Stack development kit series. It is equipped with an ESP32-C6FH4 SoC, supporting wireless communication technologies such as Wi-Fi 6 and ZigBee, and features a built-in infrared transmitter for convenient control of infrared IoT devices. The onboard ceramic antenna ensures a stable wireless communication connection.
Additionally, the device is equipped with programmable RGB LEDs, allowing for personalized visual effects in projects. The inclusion of a Grove interface enables flexible expansion with various M5 devices (customizable to connect different types of devices, such as those following UART/I2C communication protocols), providing developers with rich hardware expansion possibilities.
This development board is suitable for smart homes, industrial automation, health monitoring, and IoT devices, offering a comprehensive development solution for innovative projects.
WiFi 6
- M5NanoC6 is the first core control board to support WiFi 6, supporting the 2.4 GHz Wi-Fi 6 protocol (802.11ax) and backward compatibility with 802.11 b/g/n.
- WiFi 6 offers higher speeds, greater capacity, lower latency, and enhanced security compared to previous WiFi protocols.
FEATURES
- Supports (2.4GHz) Wi-Fi 6, Zigbee, and Thread, Matter wireless protocols
- Built-in infrared LED and RGB
- Equipped with Grove interface
- Ceramic antenna
- Compact size
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
APPLICATIONS
- Smart home systems
- Industrial control systems
- Environmental monitoring systems
- Agricultural IoT systems
- Healthcare
- Consumer electronics
- Service robots
TECHNICAL DETAILS
- SoC: ESP32-C6FH4@RISC-V single-core, main frequency 160MHz, supports CDC
- Flash: 4MB
- Wi-Fi: 2.4 GHz Wi-Fi 6 (802.11ax), backward compatible with 802.11b/g/n
- Zigbee: Zigbee 3.0
- Thread: Thread 1.3
- Matter: Supported
- RGB: WS2812
- IR Remote Parameters: IR transmission distance at ∠0°: 632CM, IR transmission distance at ∠45°: 83CM, IR transmission distance at ∠90°: 29CM
- Grove Maximum Output Current: DC 5V@600mA (Output capability depends on USB power supply capacity)
- Standby Current (Deep Sleep Mode): USB Type-C power supply: DC 5V@125.5uA, Grove power supply: DC 5V@50uA
- Standby Current (ULP Mode): USB Type-C power supply: DC 5V@252uA, Grove power supply: DC 5V@201.5uA
- Operating Current: In Wi-Fi mode: DC 5V@106.2mA
- Wi-Fi Range Test (Antenna facing up, back facing the test): 54.9m
- Operating Temperature: 0 ~ 40°C

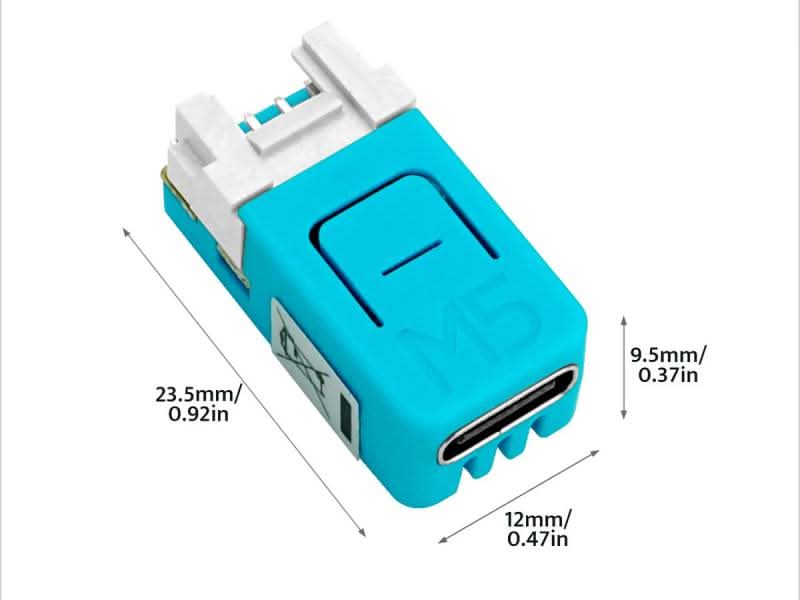

- Product Size: 23.5 x 12.0 x 9.5mm
- Product Weight: 2.7g
- Package Size: 100.6 x 80.0 x 10.5mm
