M5Stick T-Lite Thermal Camera Dev Kit (MLX90640)

DESCRIPTION

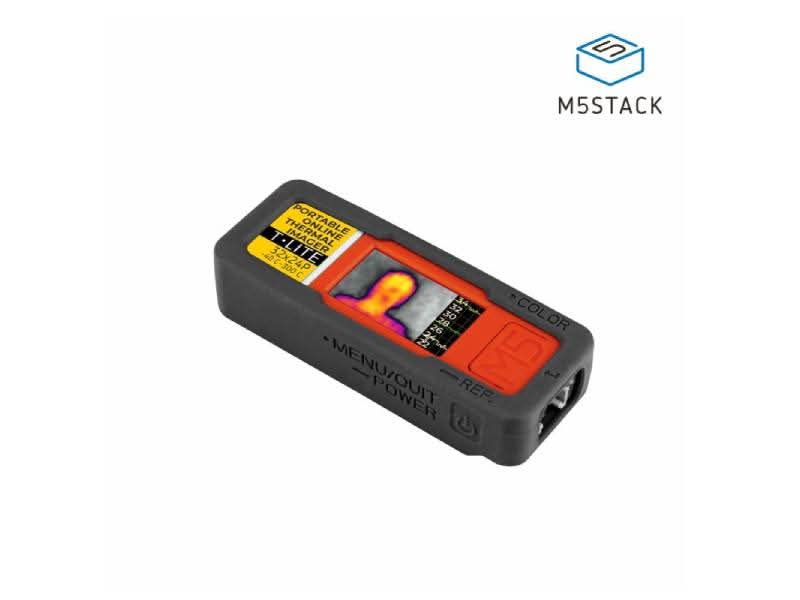

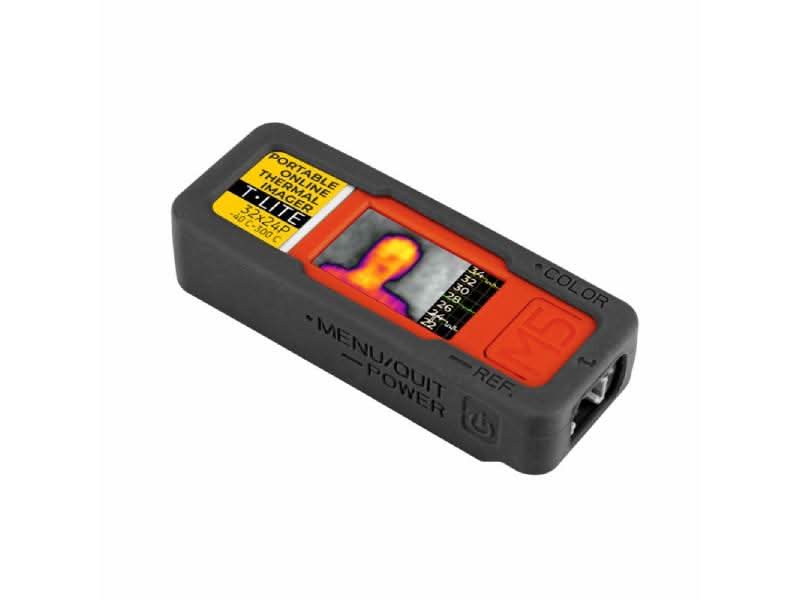

The T-Lite is an integrated thermal imaging temperature measurement device with online detection capabilities. This product is primarily composed of the M5StickC-Plus and HAT THERMAL, utilizing the MLX90640-BAA infrared imaging sensor. The main control is powered by the ESP32-PICO-D4 chip, featuring WIFI functionality, a 135 x 240 resolution TFT screen, and a built-in 160mAh battery. The name "T-Lite" represents Temperature (T) and Lite, signifying compactness and high integration. Users can set up a high-temperature warning function and view temperature images and data in real-time via cloud and local network. M5 also provides an online data API interface, allowing users to access remote images and corresponding data through EZData, facilitating engineering project applications.

FEATURES

• Developed based on ESP32-PICO, WiFi
• User button, LCD (1.14 inch), power/reset button
• 160 mAh lithium battery
• Integrated passive buzzer
• Field of view: 110°×75°
• Temperature measurement range: -40°C ~ 300°C


APPLICATIONS

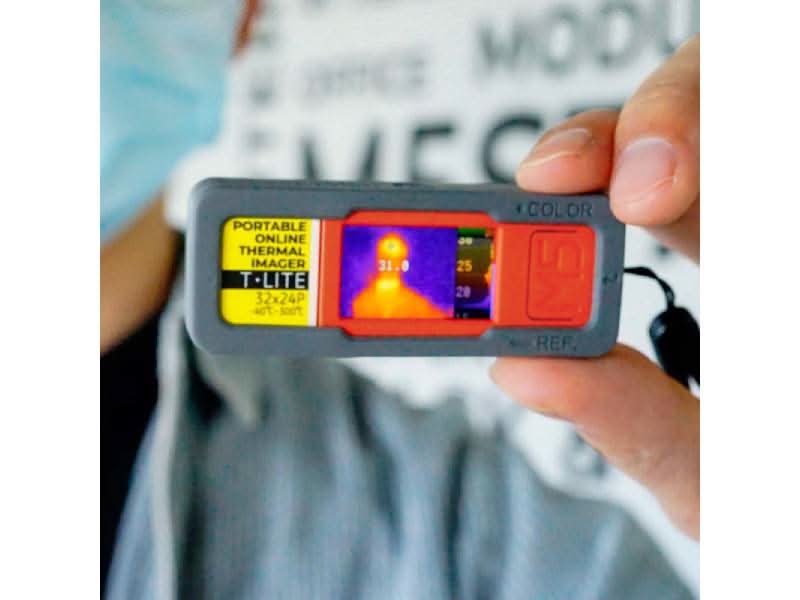

• Temperature detection and warning
• Circuit temperature anomaly monitoring
• High-precision non-contact temperature measurement
• Biological movement monitoring
• Visual infrared imaging

TECHNICAL DETAILS

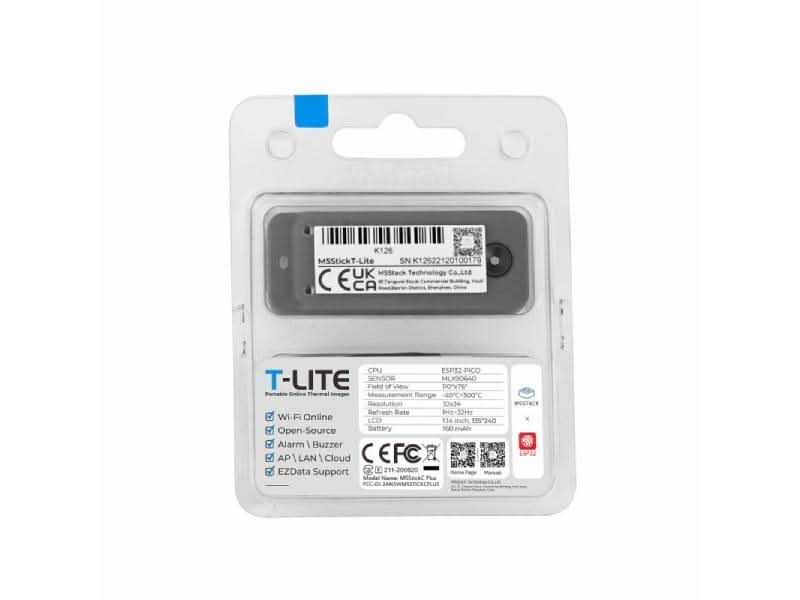

• MCU: ESP32-PICO,240MHz dual core, 600 DMIPS, 520KB SRAM
• Sensor: MLX90640
• Field of View: 110°×75°
• Resolution: 32×24
• Flash Memory: 4MB Flash
• Power Input: 5V @ 500mA
• Port: Type-C
• LCD screen: 1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
• MIC: SPM1423
• Buzzer: Passive buzzer
• PMU: AXP192
• Battery: 160 mAh @ 3.7V
• Product Size: 69.0 x 26.6 x 16.4mm
• Product Weight: 31.0g
• Package Size: 110.0 x 87.0 x 25.0mm
• Gross Weight: 62.9g

DOCUMENTS

• Click here

SHIPPING LIST

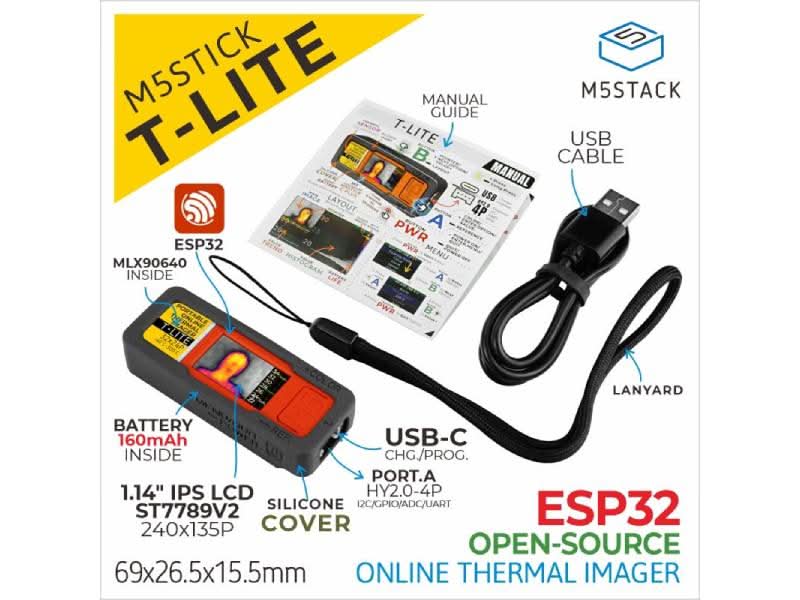

• 1x T-Lite
• 1x StickC-Plus
• 1x Lanyard
• 1x USB Type-C cable (50cm)
• 1x User manual
