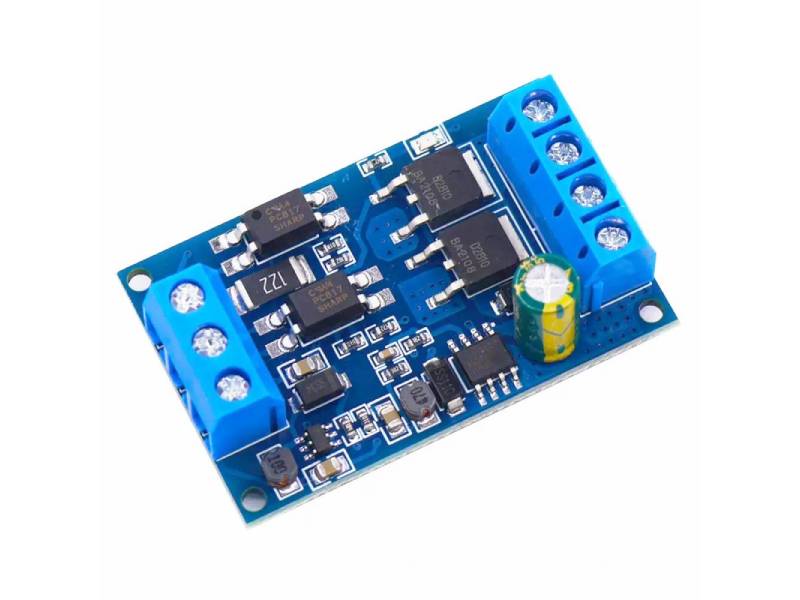

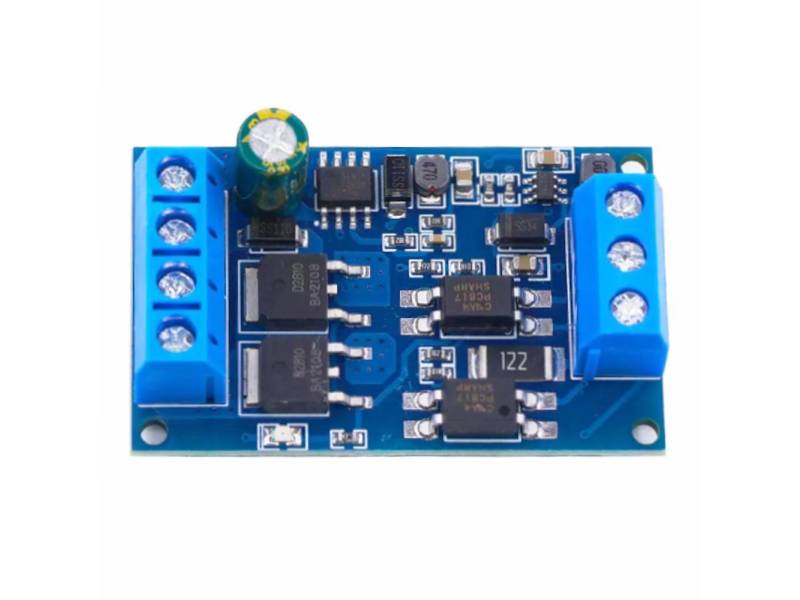

Mosfet Driver Module High Voltage

DESCRIPTION

The Mosfet Driver Module High Voltage is a compact switching module built for controlling high-power loads such as motors, LED strips and solenoid valves from a low-voltage logic signal. It bridges the gap between microcontrollers, PLCs or DC power supplies and demanding 4-60V loads, making it a staple for Arduino, Raspberry Pi and industrial automation projects in Singapore's maker and Industry 4.0 communities.

With a continuous current rating of 10A (up to 15A with additional heat dissipation) and support for PWM signals up to 2.5KHz, it delivers reliable high-power switching in a compact 4.6 x 2.9 x 1.5cm footprint.

FEATURES

• Wide operating voltage range: DC 4V–60V
• High continuous current handling: 10A at room temperature, up to 15A with auxiliary heat dissipation
• Up to 600W switching power capability
• Accepts both high-level (DC 3.0V–24V) and low-level (DC 0V–0.6V) trigger signals
• PWM-compatible with signal frequencies up to 2.5KHz for speed/brightness control
• Compatible with microcontroller I/O, PLC interfaces and DC power supplies
• Rated for unlimited switching cycles
• Wide operating temperature range: -40°C to 85°C

APPLICATIONS

• Driving high-power motors and DC gear motors
• Switching LED strips and light bulbs
• Controlling miniature water pumps
• Actuating solenoid valves
• PWM-based motor speed or LED brightness control
• Industrial automation and PLC-driven switching circuits

TECHNICAL DETAILS

• Operating Voltage: DC 4V–60V
• Continuous Current: 10A at room temperature (up to 15A with heat dissipation)
• Power Rating: 600W
• High-Level Trigger Voltage: DC 3.0V–24V
• Low-Level Trigger Voltage: DC 0V–0.6V
• PWM Signal Frequency: 0–2.5KHz
• Operating Temperature: -40°C to 85°C
• Dimensions: 4.6 x 2.9 x 1.5cm
• Control Input: Single signal only — do not drive with multiple simultaneous control signals

SHIPPING LIST

• 1x Mosfet Driver Module High Voltage
