DESCRIPTION

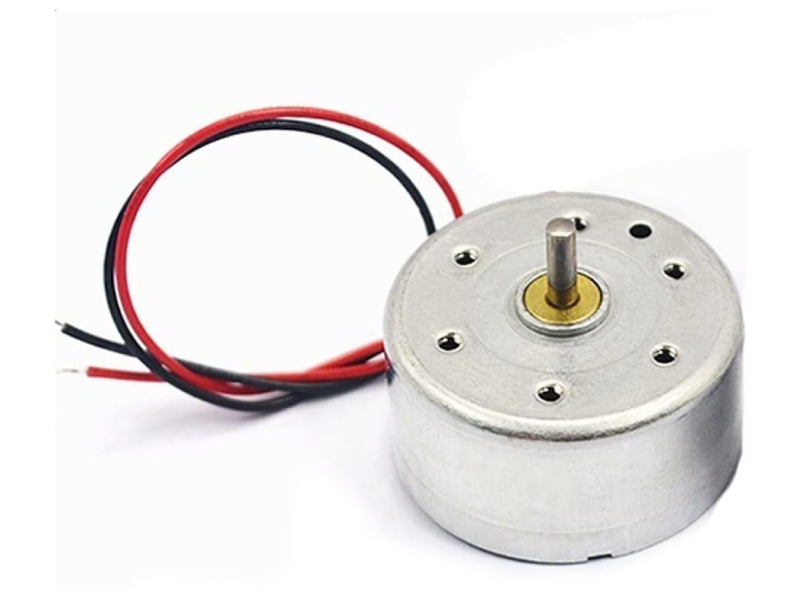

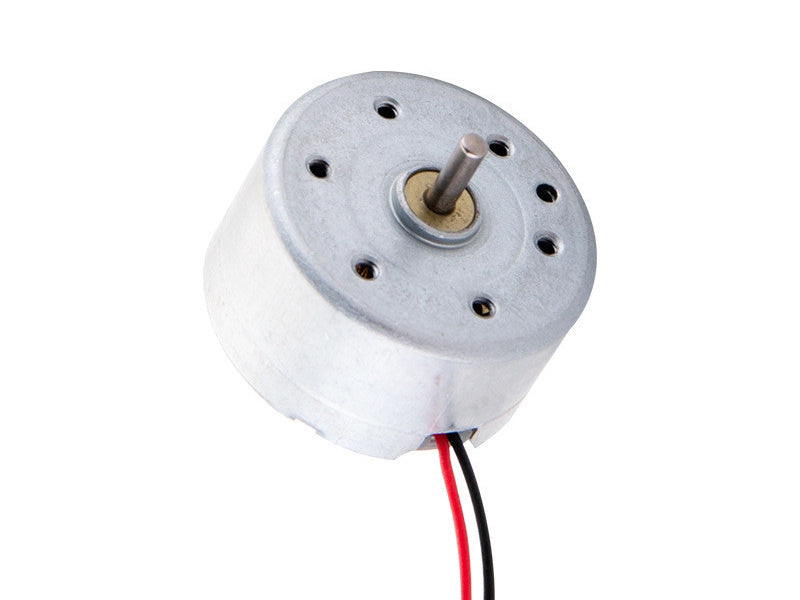

The R300C DC Motor with Wire is a compact brushed motor commonly used in RC cars, toy vehicles, and small robotics builds, offering reliable rotational power straight out of the box. It comes with pre-soldered wire leads, saving makers the extra step of soldering connections before wiring it into a circuit.
Its small form factor and low-voltage operation make it a practical choice for student projects and quick robotics prototypes.
FEATURES
- Compact brushed DC motor, ideal for lightweight robotics builds
- Pre-soldered wire leads for quick, solder-free wiring
- Operates on standard low-voltage DC power (3–6V)
- Simple two-wire interface, no driver circuitry included
- Widely used in RC cars, toy vehicles, and hobby robotics
APPLICATIONS
- RC car and toy vehicle drivetrains
- Small robotics and wheeled robot builds
- STEM and classroom motor experiments
- DIY maker projects needing basic rotational motion
TECHNICAL DETAILS
- Motor Type: R300C brushed DC motor
- Operating Voltage: 3–6V
- No-Load Speed @ 3V: ~3,500 RPM (Very low current draw ~0.02A – 0.05A)
- No-Load Speed @ 6V: ~7,000 RPM (Peak speed limit)
- Rated Output Power: ~0.06 Watt (Designed for low power / solar supply)
- Connection: Pre-soldered wire leads
- Shaft Type: Standard round shaft
- Driver Required: Yes, external motor driver recommended
SHIPPING LIST
- 1x R300C DC Motor with Wire Leads
