DESCRIPTION
The DRV8833 Motor Driver Module is a dual H-bridge breakout board that lets you independently control two DC motors, or a single bipolar stepper motor, directly from an Arduino or other microcontroller. It's a go-to choice for robotics builders in Singapore's maker community who need compact, reliable motor control without designing their own driver circuit.
Built-in protection features like thermal shutdown and undervoltage lockout help keep both the driver and connected motors safe during operation.
FEATURES
- Dual H-bridge design drives two DC motors or one stepper motor
- PWM-compatible inputs for smooth speed control
- Built-in thermal shutdown and undervoltage lockout protection
- Low RDS(on) outputs for efficient power delivery

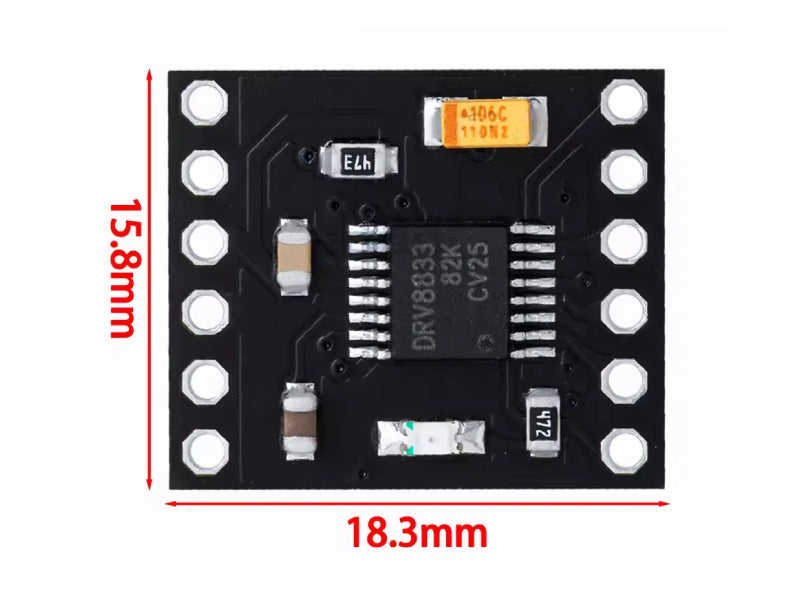

- Compact breakout board
- Wide operating voltage range suitable for battery-powered robots
APPLICATIONS
- Wheeled robot and rover motor control
- RC car and small vehicle drive systems
- Bipolar stepper motor positioning projects
- Arduino and Raspberry Pi robotics kits
TECHNICAL DETAILS
- Driver IC: DRV8833 dual H-bridge
- Motor Channels: 2x DC motor or 1x bipolar stepper
- Operating Voltage: 2.7V–10.8V
- Output Current: 1.5A RMS / Continuous (up to 2.0A Peak)
- Protection: Thermal shutdown, undervoltage lockout

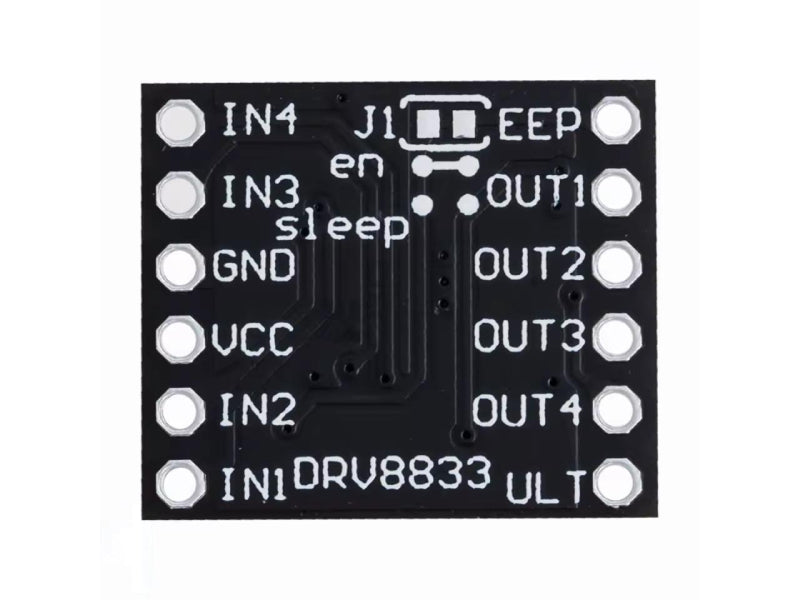

- Control Interface: PWM/direction logic inputs (AIN1, AIN2, BIN1, BIN2)
SHIPPING LIST

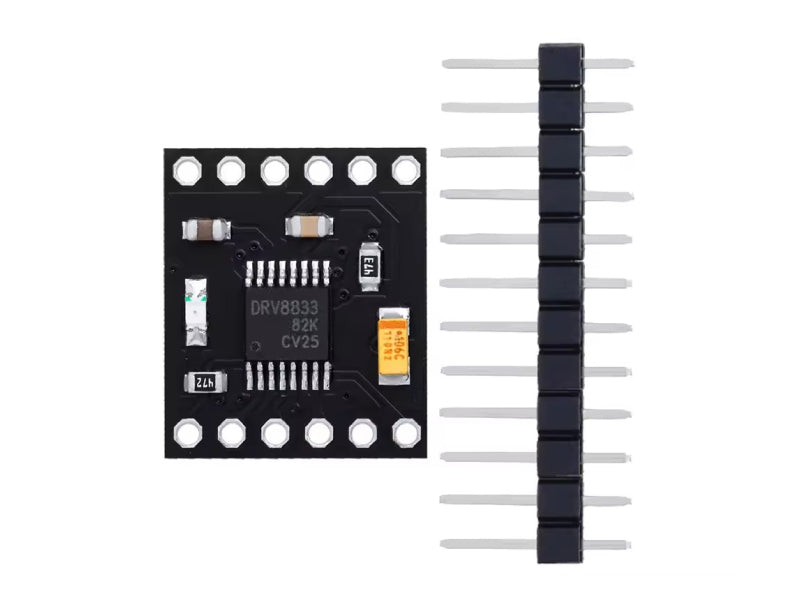

- 1x DRV8833 Motor Driver Module
