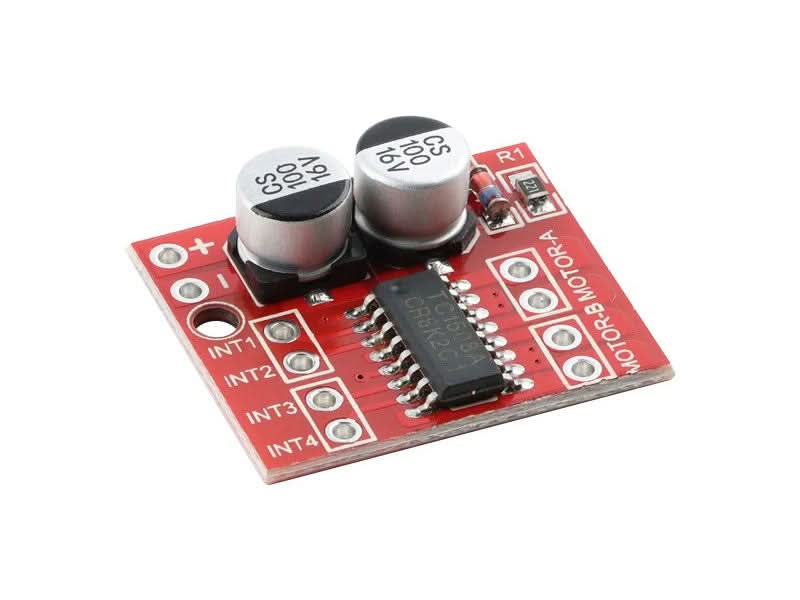

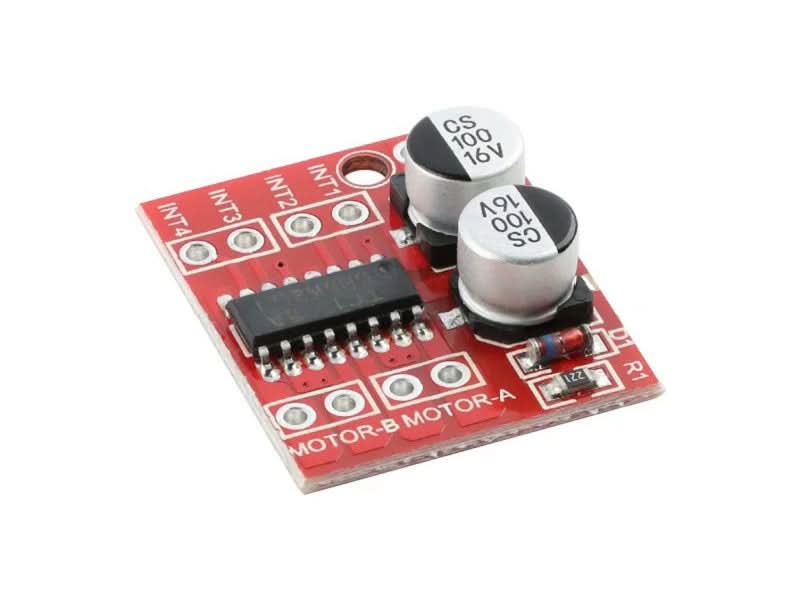

Motor Driver Dual H Bridge TC1508 / L298N Mini

DESCRIPTION

The TC1508 / L298N Mini Dual H-Bridge Motor Driver Module is a compact, high-efficiency motor control solution designed for Arduino projects, robotics, RC cars, and battery-powered automation builds. A popular L298N alternative in a fraction of the size, this module suits hobbyists, students, and engineers across Singapore looking for reliable, low-heat motor control without a heatsink.

The dual H-bridge configuration allows independent control of two DC motors simultaneously, supporting forward rotation, reverse rotation, PWM speed regulation, and braking. It can also drive a single 4-wire, 2-phase bipolar stepper motor. Direction and speed are controlled directly via PWM signals on the input pins — no additional logic circuitry needed.

APPLICATIONS

• Arduino & Raspberry Pi motor control projects
• DIY robotics and robotic arms
• Battery-powered smart cars and toy vehicles
• STEM and maker education kits
• Compact automation rigs and conveyor prototypes

TECHNICAL DETAILS

• Supply Voltage: 2V – 10V DC
• Signal Input Voltage: 1.8V – 7V
• Continuous Output Current: 1.5A per channel (dual channel, 1.5A x 2)
• Peak Current: Up to 2.5A
• Standby Current: less than 0.1µA (near-zero idle draw)

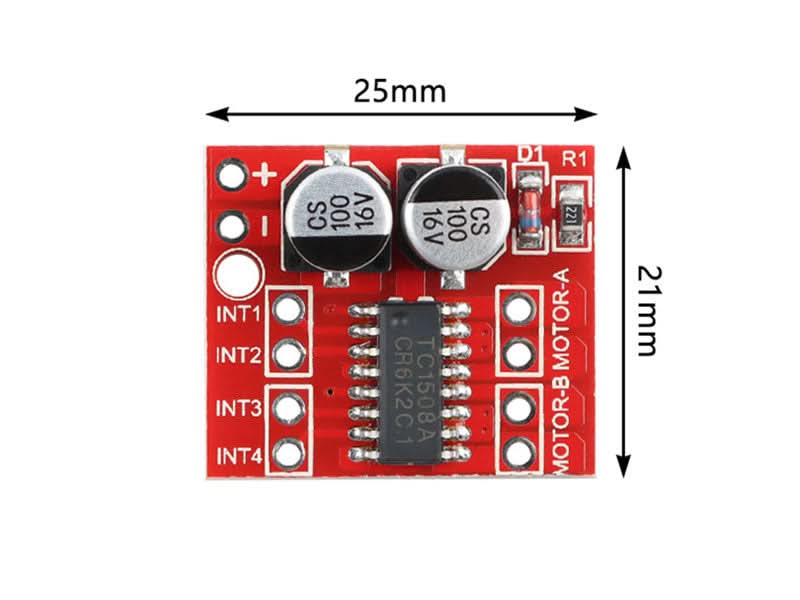

• Module Dimensions: 25mm x 21mm x 5mm
• Mounting Hole Diameter: 2mm

SHIPPING LIST

• 1x Motor Driver Dual H Bridge TC1508 / L298N Mini
