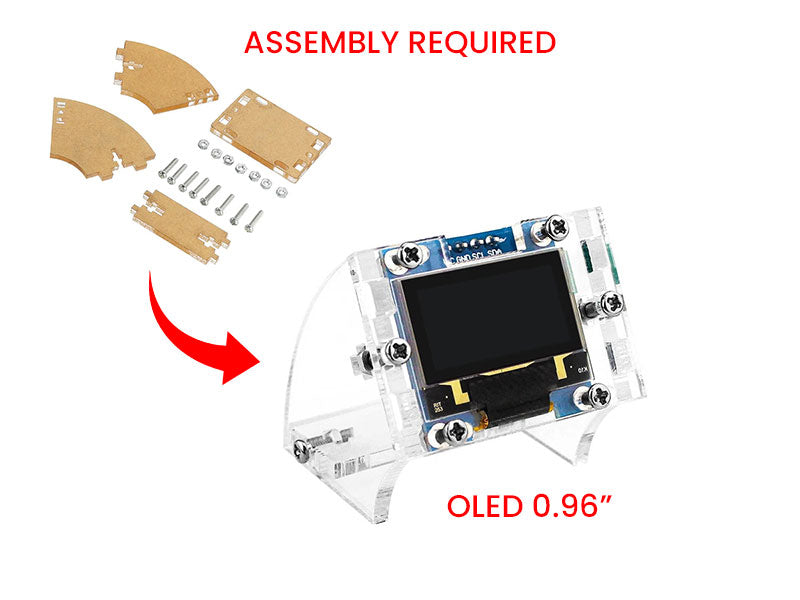

OLED 0.96" Acrylic Casing

OLED 128x64 128x32 12864 12832 0.91 0.96 1.3 2.42 inch

Option | 0.91 inch

$8.20
$8.20
Sold Out
Product Details
  • Variant: 0.91 inch
  • SKU: MOD-DIS-031
  • In Stock: 5

DESCRIPTION

OLED (Organic Light-Emitting Diode) display has a resolution of 128 x 64 / 128x 32 pixels. It uses I2C (0.91", 0.96" and 1.30") and SPI (2.42") protocol for communication.

OLED is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than a LCD. OLED display module also has a much faster response time than an LCD. OLED possesses high application potential for virtually all types of displays.


TECHNICAL DETAILS

  • Input Voltage: 3 - 5V
  • Interface: I2C, SPI
  • Controller: SSD1306 (0.91", 0.96") / SH1106 (1.30") / SSD1309 (2.42")
  • Resolution: 128x 32 (0.91"), 128 x 64 (0.96", 1.30", 2.42")
  • Display: White on Black
  • View Area: 24mm x 7mm (0.91"), 24mm x 13mm (0.96"), 34mm x 23mm (1.30"), 57mm x 29mm (2.42")
  • Active Area: 22mm x 5mm (0.91"), 22mm x 11mm (0.96"), 29mm x 14mm (1.30"), 55mm x 27mm (2.42")
  • Dot Size: 0.154mm x 0.154mm (0.91", 0.96"), 0.21mm x 0.21mm (1.30"), 0.4mm x 0.4mm (2.42")
  • Dot Pitch: 0.17mm x 0.17mm (0.91", 0.96"), 0.23mm x 0.23mm (1.30"), 0.43mm x 0.43mm (2.42")
  • Operating Temperature: -30 to 70°C


SHIPPING LIST

  • 1x OLED Display Module
