PCM5102 I2S DAC with Line Level Output
PCM5102 I2S DAC with Line Level Output
PCM5102 I2S DAC with Line Level Output

PCM5102 I2S DAC with Line Level Output

$7.00
$7.00
Sold Out
Product Details
  • SKU: MOD-BUZ-024
  • In Stock: 6

DESCRIPTION

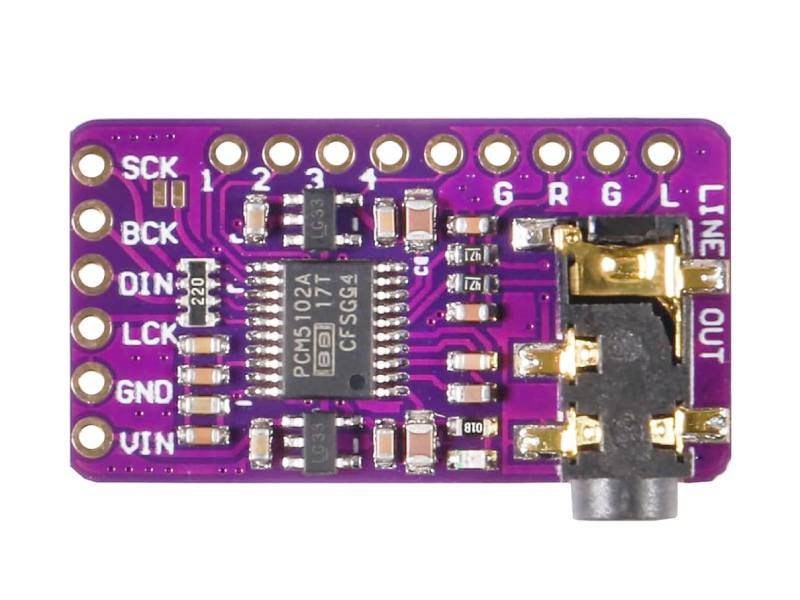

The PCM5102 I2S DAC with Line Level Output converts digital I2S audio streams into high-quality analogue line-level audio, making it a popular choice for Raspberry Pi and microcontroller audio projects. Built around the PCM5102A digital-to-analogue converter chip, it delivers clean stereo output through a standard 3.5mm line-out jack.

The compatible footprint also supports PCM5100 and PCM5101 variants for flexible sourcing.


FEATURES

  • PCM5102A I2S digital-to-analogue converter (DAC) chip
  • Stereo 3.5mm line-level output jack
  • Standard I2S pin interface: SCK, BCK, DIN, LCK, GND, VIN

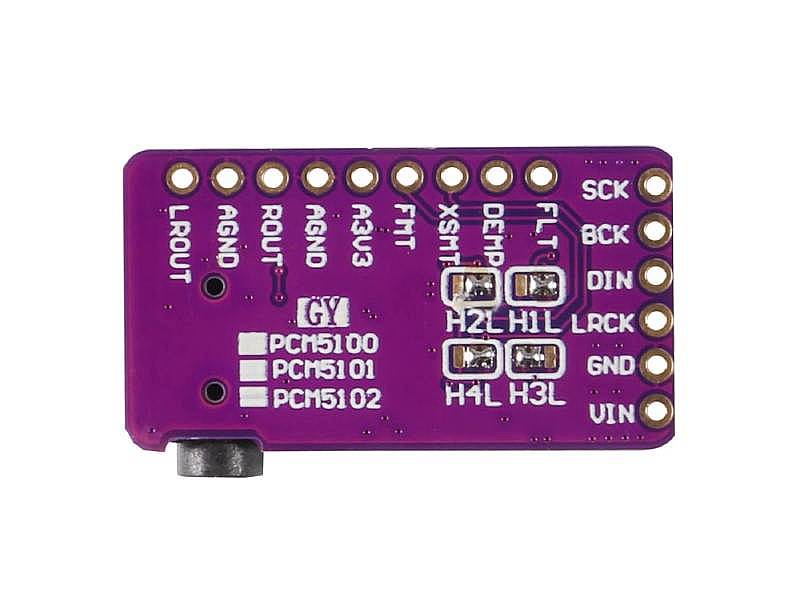

  • Additional format/mute/de-emphasis pins (FMT, XMT, DEMP, FLT) for advanced configuration
  • Compatible with PCM5100/PCM5101/PCM5102 chip variants
  • Includes jumper wires and header pins for quick breadboard setup


APPLICATIONS

  • Raspberry Pi HiFi audio output upgrades
  • Arduino and ESP32 digital audio playback projects
  • DIY audio streaming devices and internet radios
  • Custom MP3/media player builds
  • Audio amplifier front-ends needing clean line-level input


TECHNICAL DETAILS

  • DAC Chip: PCM5102A (also supports PCM5100/PCM5101 footprint)
  • Interface: I2S (SCK, BCK, DIN, LCK, GND, VIN)
  • Output: Stereo line level (3.5mm jack, L/R)
  • Additional Pins: FMT, XMT, DEMP, FLT, A3V3, AGND
  • Operating Voltage: 3.3V-5V

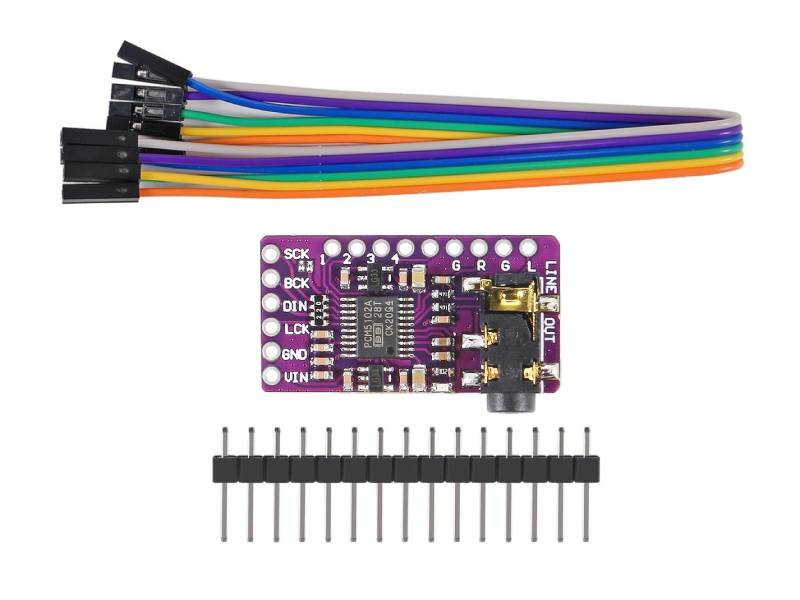

SHIPPING LIST

  • 1x PCM5102 I2S DAC with Line Level Output
  • 1x Female Jumper Wires
  • 1x Male Header Pins
