DESCRIPTION
The KF301 5.0mm Pitch Screw Terminal Block Kit gives electronics engineers, makers, and hobbyists in Singapore a ready stock of reliable PCB-mount connectors in one convenient bundle. With 100 pieces across three configurations — 80× 2-pin, 15× 3-pin, and 5× 4-pin — this kit covers the majority of prototyping and production wiring scenarios without the need to source terminals separately.
The KF301 series features a 5.0mm pitch spacing, striking the ideal balance between compact board footprint and easy wire insertion. Each terminal accepts conductors up to 2.5mm², making it suitable for both signal-level and light power wiring. The green PA66 nylon housing resists heat and provides solid insulation, while the brass contact with tin plating ensures low-resistance, corrosion-resistant connections that hold up over time.
Designed for through-hole PCB mounting, these terminals sit flush and securely on the board. The screw-clamp mechanism allows fast, tool-free wire changes during testing and field installation — a practical advantage when iterating on prototypes or maintaining control panel wiring. Terminals are also side-entry stackable, enabling modular multi-pole configurations by snapping units together when your circuit demands more connections than a single block provides.
Ideal for use in power distribution boards, relay modules, LED driver circuits, home automation wiring, industrial control panels, and Arduino or ESP32 development projects. This mixed-quantity kit is particularly useful for Singaporean makers stocking up for Hackerspaces, school labs, repair workshops, or small-batch product runs where having the right connector on hand avoids project delays.
TECHNICAL DETAILS
- Pitch: 5.0mm
- Mounting Type: Through-hole PCB mount
- Rated Voltage: 300V AC/DC
- Rated Current: 15A
- Wire Range: 28–12 AWG / 0.5–2.5mm²
- Operating Temperature: -30°C to +105°C

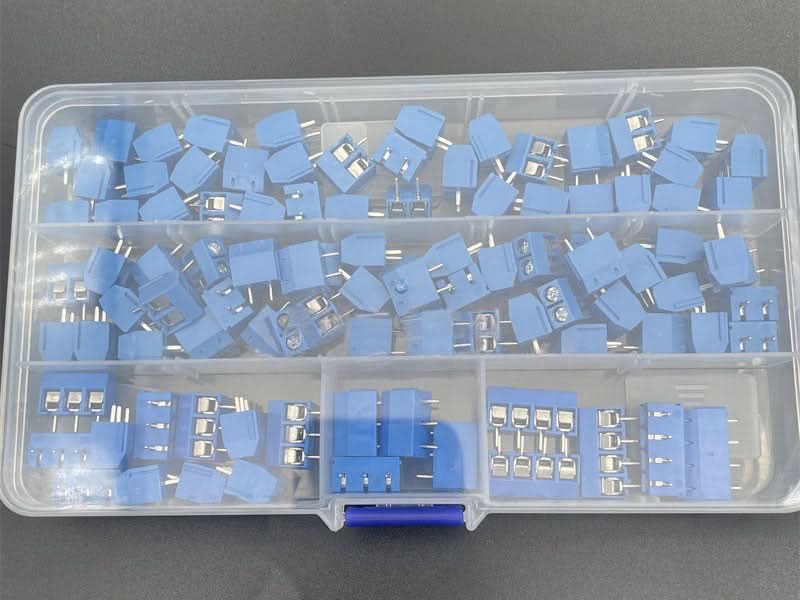

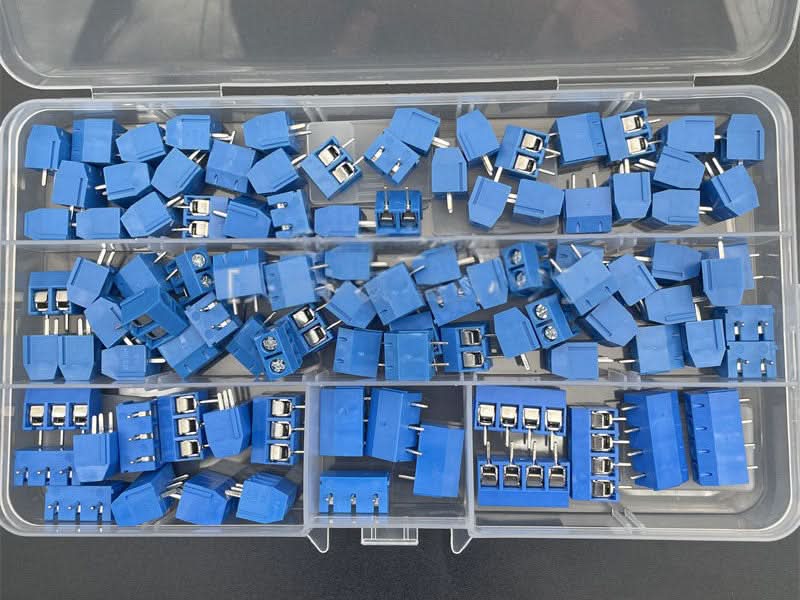

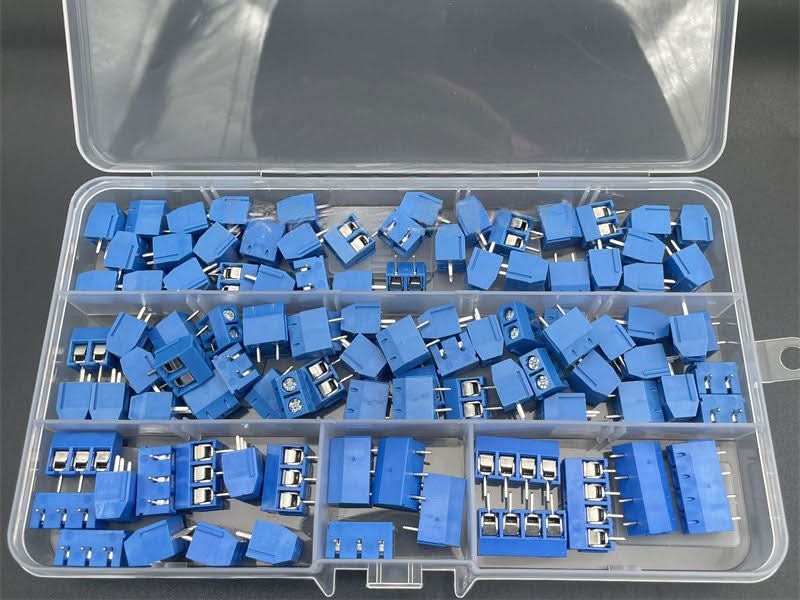

SHIPPING LIST
- 80x KF301-5.0 2P
- 15x KF301-5.0 3P
- 5x KF301-5.0 4P
