DESCRIPTION
The TMC2209 is a high-performance stepper motor driver IC from Trinamic (now part of Analog Devices), engineered for low-noise, highly efficient two-phase stepper motor control. Whether you are building a desktop 3D printer, a CNC router, or an automated lab instrument, the TMC2209 delivers whisper-quiet operation with intelligent motor diagnostics — making it the go-to driver for makers, engineers, and OEM manufacturers across Singapore and Southeast Asia.
Powered by Trinamic's proprietary StealthChop2™ technology, the TMC2209 virtually eliminates the high-pitched whine typically associated with stepper motors, making it ideal for office environments, co-working maker spaces, and noise-sensitive deployments common in Singapore's dense urban settings. Combined with SpreadCycle™ — a high-precision chopper algorithm — it delivers smooth torque and consistent positioning accuracy at higher speeds.
The driver supports UART single-wire interface for full register-level control, enabling dynamic adjustment of current, microstepping resolution, and operating modes at runtime without physical jumper changes. This makes it exceptionally flexible for iterative development and production-line calibration.
Built-in StallGuard4™ sensorless homing technology eliminates the need for physical endstop switches, simplifying mechanical design and reducing component count in tight builds. The integrated CoolStep™ current scaling reduces motor and driver heat dissipation by up to 75%, extending component lifespan in tropical climates where ambient temperatures in Singapore can average 28–32°C year-round.
The TMC2209 is backward-compatible with the widely adopted StepDir interface, allowing direct drop-in replacement on existing RAMPS, SKR, and similar control boards without firmware changes. It is the standard driver on many Creality, Prusa, and BTT printer mainboards shipped globally.
APPLICATIONS
- FDM and resin 3D printers (Creality, Bambu, Voron, Prusa builds)
- CNC milling machines and laser engravers
- Automated pick-and-place systems
- Robotic arms and precision actuators
- Laboratory automation and medical devices
- Camera sliders and gimbal systems
TECHNICAL DETAILS
- Motor Type: 2-phase bipolar stepper
- Supply Voltage: (VM) 4.75V – 29V DC
- Logic Supply Voltage: (VIO) 3.0V – 5.25V (3.3V & 5V compatible)
- Peak Motor Current: 2.8A
- RMS Motor Current (continuous): 2.0A
- Microstepping Resolution: Up to 256 microsteps/full step
- Interface: STEP/DIR + UART (single-wire)
- UART Baud Rate: Up to 500 kBaud
- Chopper Mode: StealthChop2™ / SpreadCycle™
- Sensorless Homing: StallGuard4™
- Thermal Shutdown: Yes (integrated)
- Short Circuit Protection: Yes (to GND and supply)
- Overcurrent Protection: Yes
- Operating Temperature: –40°C to +125°C
- Standby Current Reduction: CoolStep™ (up to 75% saving)
- Diagnostic Output: Yes (DIAG pin, configurable)
- Interpolation: MicroPlyer™ (to 256 microsteps)

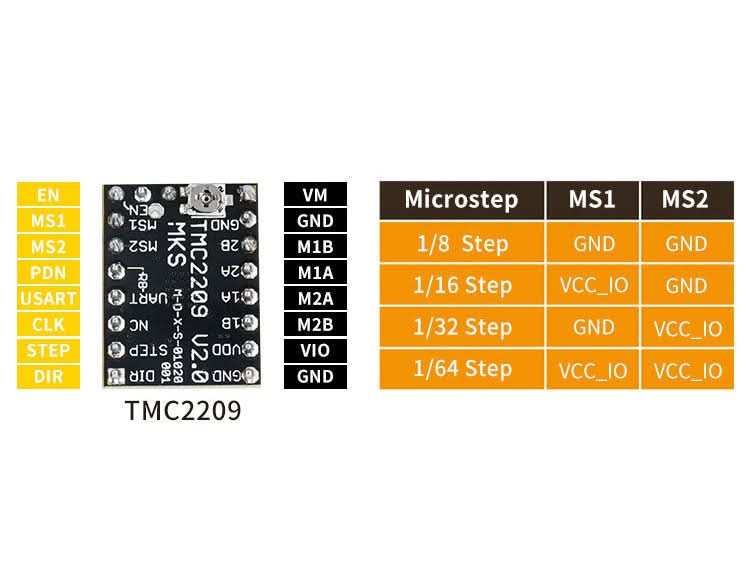

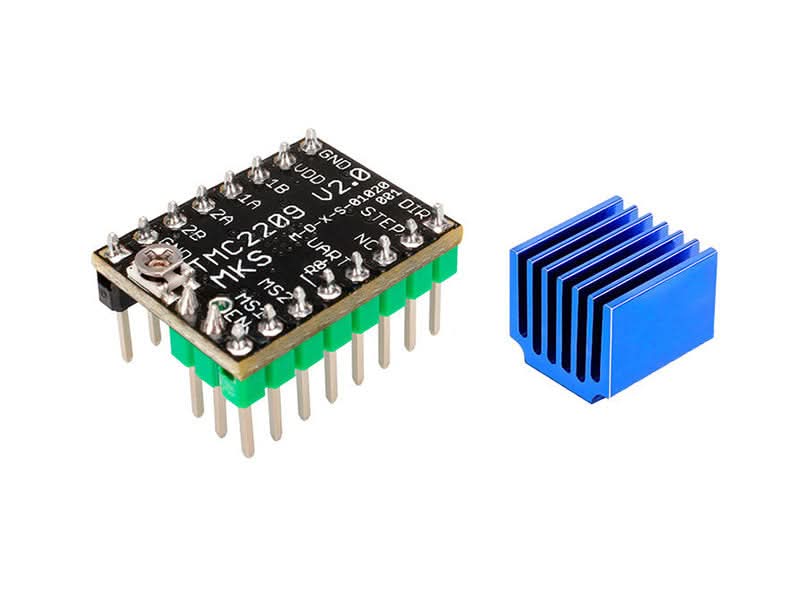

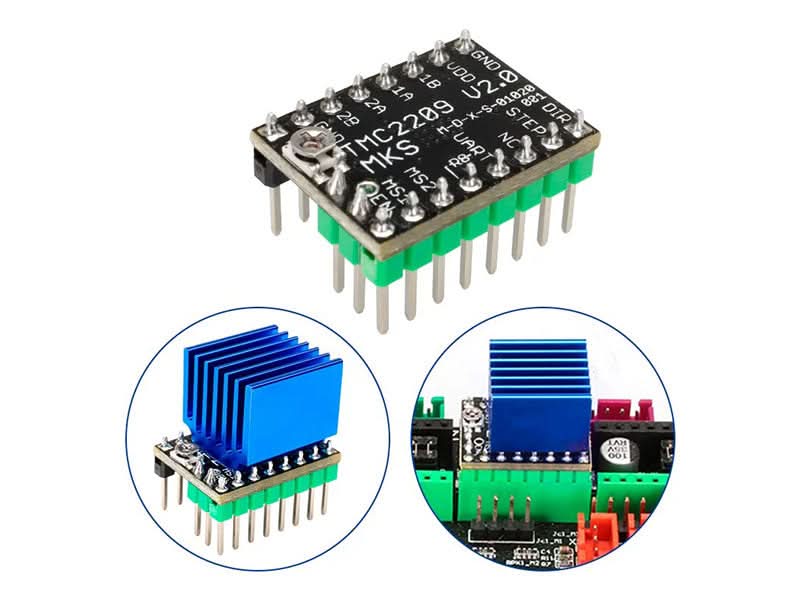

SHIPPING LIST
- 1x Stepper Motor Driver TMC2209
- 1x Heat Sink
