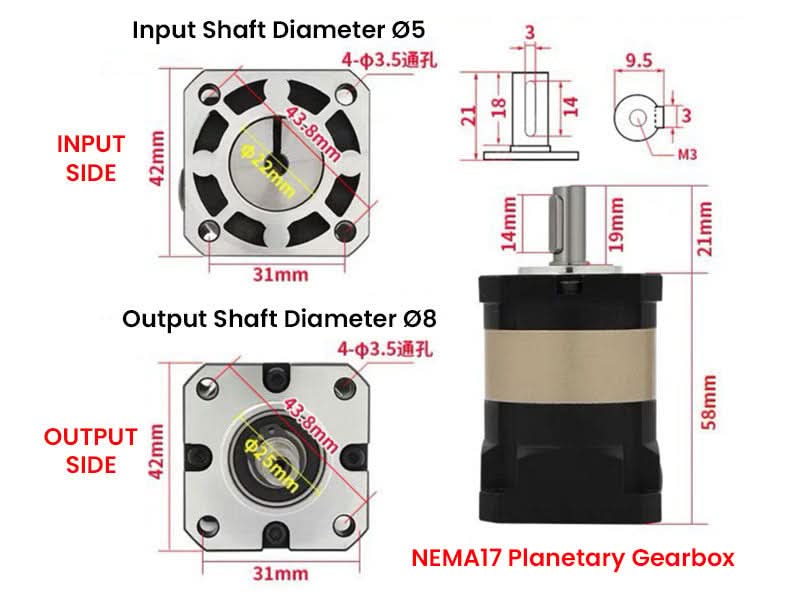

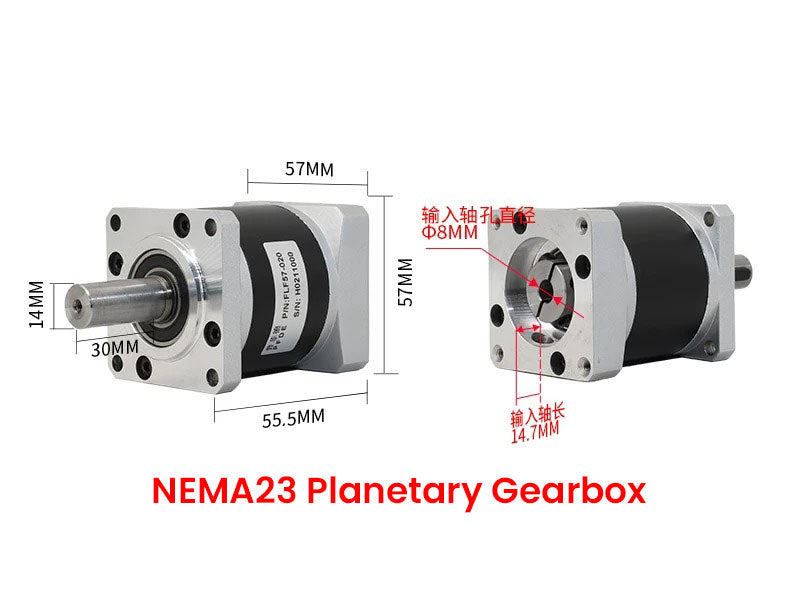

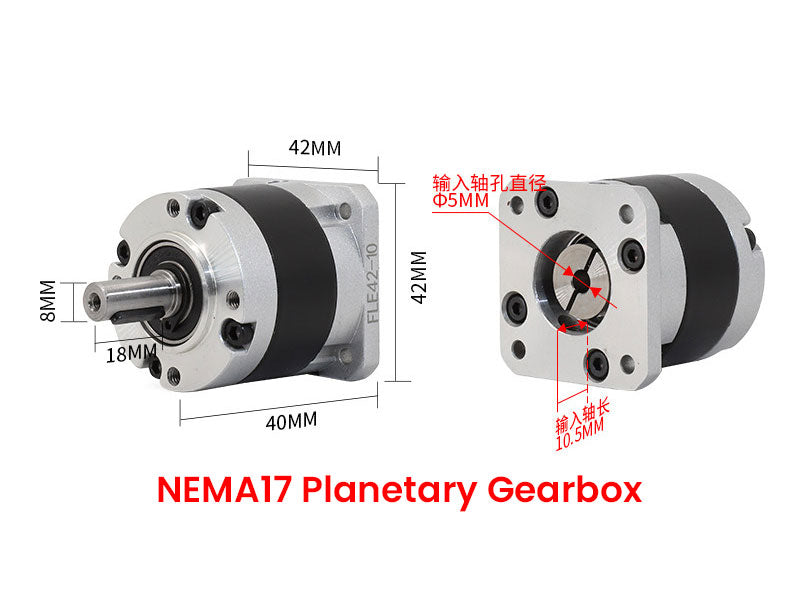

Stepper Motor Planetary Gearbox NEMA17 NEMA23

Option | NEMA17

Only 5 left!
Regular Price
$32.40
Sale Price
$32.40
Regular Price
Sold Out
Unit Price
per
Product Details
  • Variant: NEMA17
  • SKU: MOT-STE-011
  • In Stock: 5

Stepper Motor Planetary Gearbox NEMA17...

Regular Price
$32.40
Sale Price
$32.40
Regular Price
Sold Out
Unit Price
per

Option

NEMA17

DESCRIPTION

The Planetary Gearbox for NEMA 17 and NEMA 23 Stepper Motors is a high-performance speed reduction solution engineered for applications requiring extreme torque density and minimal backlash. Unlike standard spur gearboxes, the planetary design distributes the load across multiple "planet" gears, ensuring superior durability and efficiency in a compact footprint..


FEATURES

  • High Torque Density: The load is shared between several planetary gears, allowing the gearbox to handle much higher torque than a traditional inline gearbox of the same size.
  • Low Backlash: Optimized for precision positioning, our gearboxes minimize "play" in the gears, which is critical for 3D printing, laser cutting, and automated assembly.
  • NEMA Compatibility: Designed with standard mounting holes and input shaft sleeves, these gearboxes provide a "plug-and-play" fit for any standard NEMA 17 or NEMA 23 stepper motor.
  • Long-Life Lubrication: Sealed units featuring high-grade synthetic grease ensure maintenance-free operation over thousands of hours.


APPLICATIONS

  • Precision CNC Machinery: Enhanced cutting force and resolution.
  • Robotics: Compact joint actuation with high holding torque.
  • Medical Equipment: Quiet, smooth, and reliable motion.
  • Industrial Automation: Conveyor synchronization and packaging systems


TECHNICAL DETAILS

  • Speed Ratio: 5:1
  • Return Backlash: < 10' (NEMA17), < 12' (NEMA23)
  • Rated Torque: 13Nm (NEMA17), 45Nm (NEMA23)
  • Transmission Efficiency: > 95%
  • Maximum RPM: 3500
  • Weight: 0.32kg (NEMA17), 0.96kg (NEMA23)


SHIPPING LIST

  • 1x Stepper Motor Planetary Gearbox NEMA17 NEMA23
