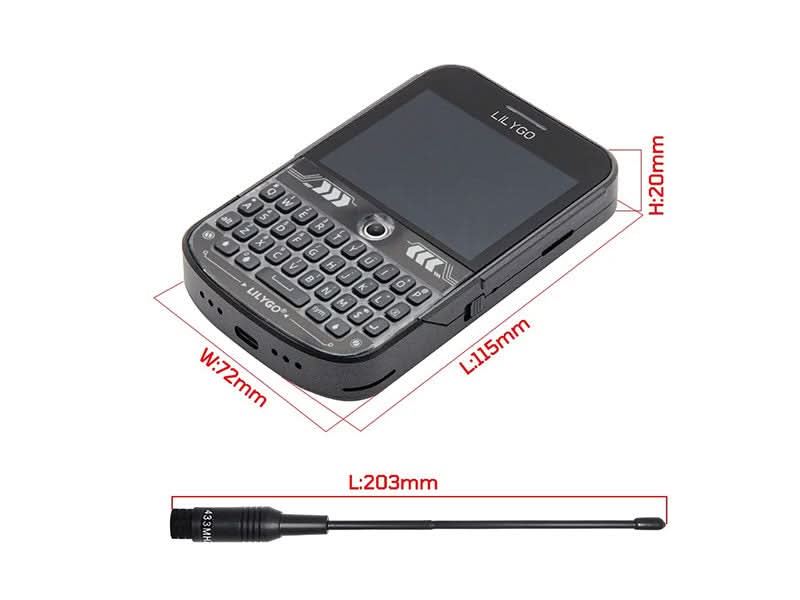

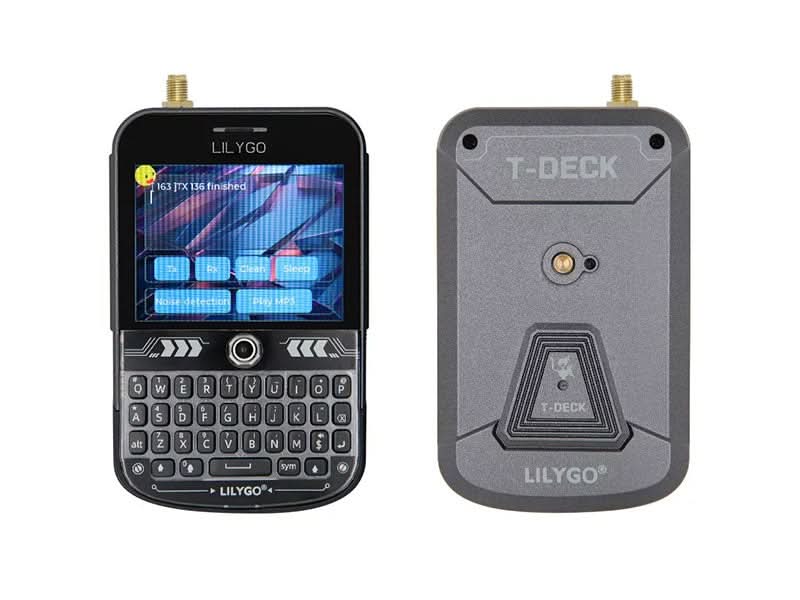

LILYGO T-Deck Plus Meshtastic – Standalone LoRa Mesh Communicator
The LILYGO T-Deck Plus is a compact, all-in-one Meshtastic handheld terminal built for off-grid, decentralised communication. Designed for makers, hobbyists, CERT volunteers, and outdoor enthusiasts in Singapore and the wider Southeast Asia region, it lets you send and receive messages across a LoRa mesh network — no SIM card, no internet, no cellular infrastructure required.
Upgraded from the standard T-Deck, the Plus adds a built-in GPS module and a 2000 mAh battery LILYGO®, making it a fully self-contained field device. Unlike most Meshtastic nodes that require a paired smartphone or laptop to interact with the network, the T-Deck Plus resolves this with an all-in-one product combining a LoRa radio, GPS, full-colour touchscreen, and a full QWERTY keyboard.
APPLICATIONS
- Meshtastic mesh networking enthusiasts and node builders
- Emergency preparedness and CERT/community resilience teams
- Hiking, trail running, and island-hopping off-grid comms (Pulau Ubin, Southern Islands)
- IoT and LoRa R&D prototyping
- Developers building on ESP32-S3 with Arduino or PlatformIO
TECHNICAL DETAILS

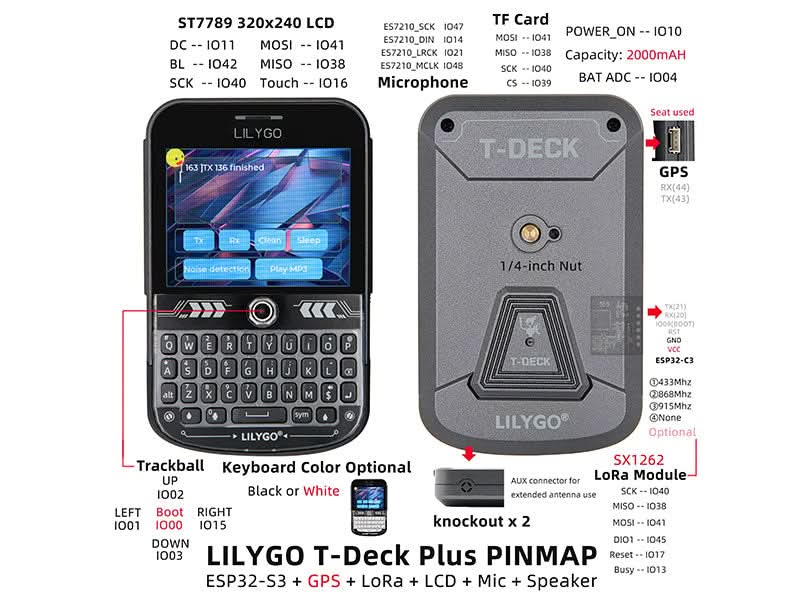

- MCU: ESP32-S3FN16R8 Dual-core LX7 microprocessor
- Wireless Connectivity: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
- Development: Arduino, PlatformlO-IDE, Micropython
- Flash: 16MB
- PSRAM: 8MB
- Battery ADC PIN: IO04
- Onboard functions : GPS, TF Card, Microphone, Speaker
2.8 inch ST7789 SPI Interface IPS LCD
- Resolution: 320 x 240 Full viewing angle
SX1262 LoRa Transceiver
- Transmit power: +22dBm
- Frequency: 915Mhz
SHIPPING LIST
- 1x T-Deck Plus Meshtastic
- 1x External Antenna
