Thermal Printer for Arduino

DESCRIPTION

The embedded thermal printer is a compact 58mm receipt printer module that prints text, graphics, barcodes and QR codes directly from your Arduino, Raspberry Pi or PC. It is ideal for makers, schools and product developers in Singapore building point-of-sale terminals, IoT data loggers, label stations and Industry 4.0 prototypes that need a hard copy of their output.

With a fast 60mm/s print speed, 203dpi resolution and a rated print head life of 50km, it delivers crisp, ink-free output. Its panel-mount design, flip cover and quick-fix latch make it easy to embed into enclosures and finished devices.

FEATURES

• Direct thermal printing: no ink or ribbon required, with low-noise operation
• Multiple interfaces: USB, TTL and RS232
• Prints text, bitmap graphics, one-dimensional barcodes and QR codes
• 203dpi resolution with 384 dots per line and a maximum print width of 58mm
• Fast 60mm/s print speed

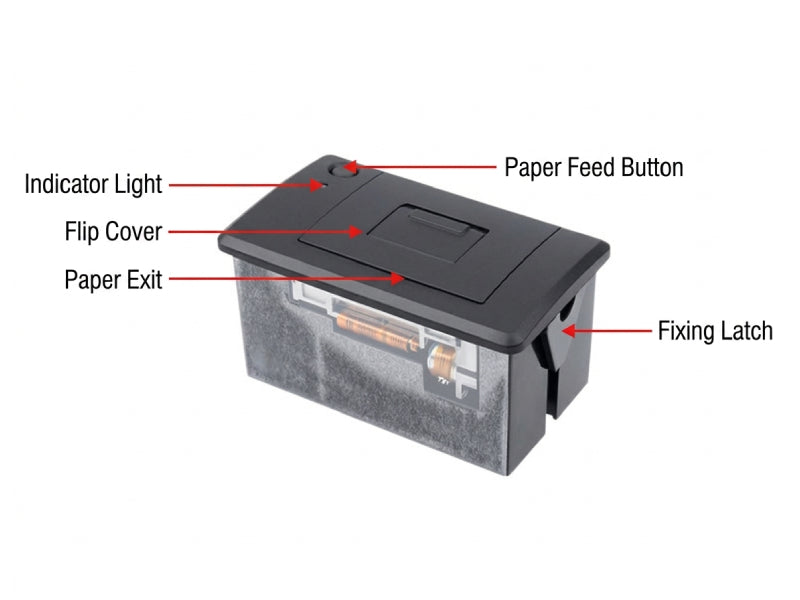

• Compact, integrated panel-mount design with fixing latch, sliding bracket and screw mounting
• Onboard paper feed button and error indicator light
• Manual tear-off paper cutting
• Rated print head life of 50km

APPLICATIONS

• Point-of-sale and receipt printing for DIY cash registers and kiosks
• Electronic weighing scales and medical devices
• IoT and sensor data loggers that need a printed record
• Ticket, queue number and label printing
• Arduino and Raspberry Pi maker projects and STEM classroom builds

TECHNICAL DETAILS

• Print Method: Direct thermal
• Print Colour: Black and white
• Resolution: 203dpi, 384 dots per line
• Print Speed: 60mm/s
• Maximum Print Width: 58mm
• Interface: USB / RS232 / TTL
• Default Baud Rate: 9600
• Operating Voltage: 9V-24V
• Operating Current: 2.5A (power supply of 2.5A or higher recommended)
• Paper Type: Thermal paper roll
• Paper Width: 58mm ±0.05mm
• Paper Thickness: 0.05mm-0.1mm
• Paper Roll Diameter: 40mm or less
• Print Head Life: 50km
• Platform Support: Windows, Linux, Android
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 20% to 80%
• Storage Temperature: -15°C to 20°C
• Storage Humidity: 45% to 75%
• Dimensions: 111 x 65 x 60mm (L x W x H)

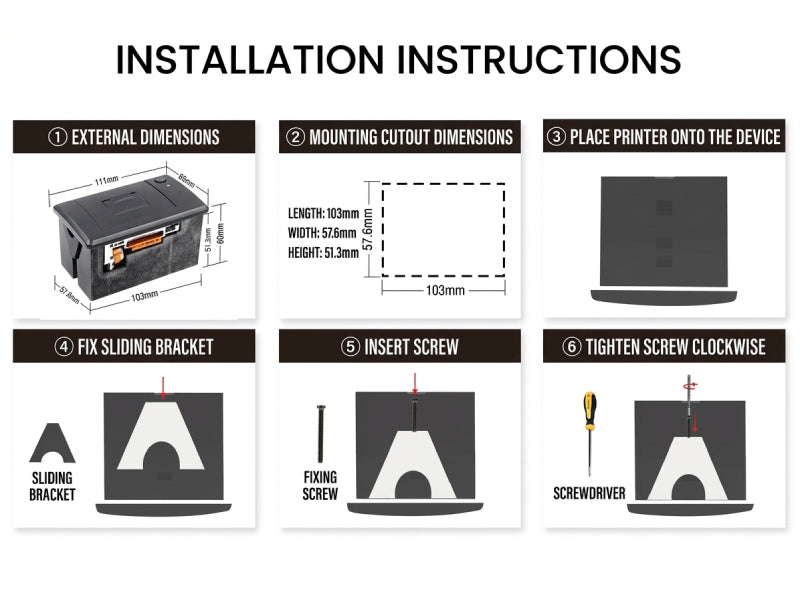

• Mounting Dimensions: 102.3 x 56.5 x 51.3mm (L x W x H)
• Colour: Black

DOCUMENTS

• EM5820
• EM5820H

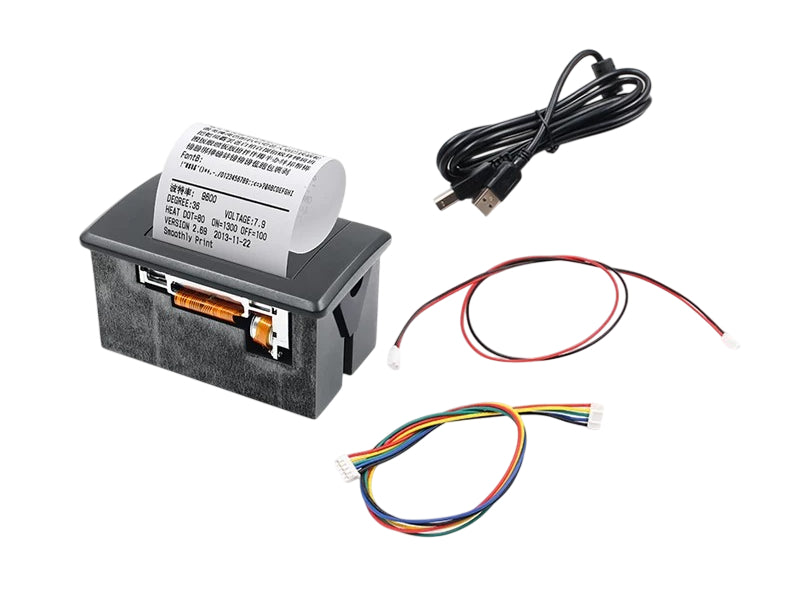

SHIPPING LIST

• 1x Thermal Printer
• 1x USB Cable
• 1x JST Cable for Power
• 1x JST Cable for Serial (TTL)
• Fixing Screw and Sliding Bracket
