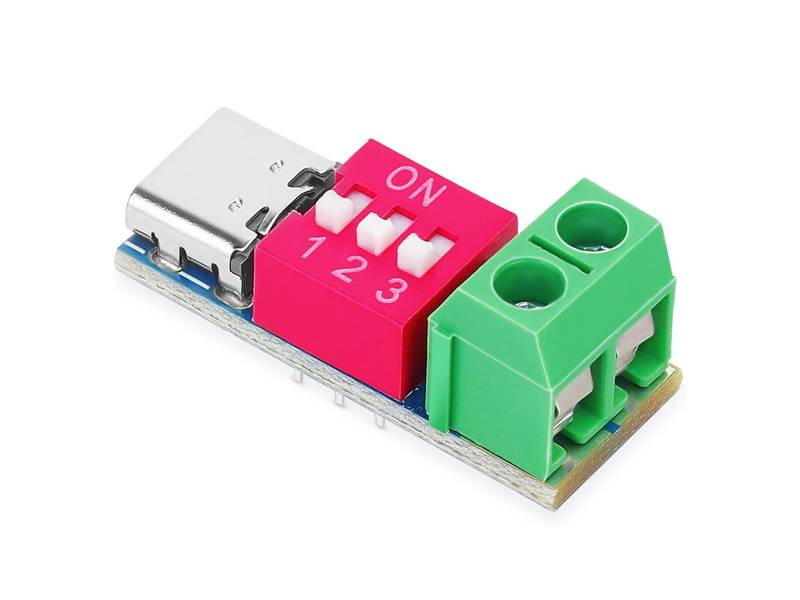

USB-C PD Trigger Module PD3.0/2.0 BC1.2 Fast Charging Protocols Adjustable Voltage 5V/9V/12V/15V/20V
USB-C PD Trigger Module PD3.0/2.0 BC1.2 Fast Charging Protocols Adjustable Voltage 5V/9V/12V/15V/20V
USB-C PD Trigger Module PD3.0/2.0 BC1.2 Fast Charging Protocols Adjustable Voltage 5V/9V/12V/15V/20V
USB-C PD Trigger Module PD3.0/2.0 BC1.2 Fast Charging Protocols Adjustable Voltage 5V/9V/12V/15V/20V

USB-C PD Trigger Module PD3.0/2.0 BC1.2 Fast Charging Protocols Adjustable Voltage 5V/9V/12V/15V/20V

$5.60
$5.60
Sold Out
Product Details
  • Variant: Default
  • SKU: MOD-MOS-012
  • In Stock: 8

DESCRIPTION

The USB-C PD Trigger Module is a compact decoy board built around the CH224K IC that negotiates a fixed DC voltage from any USB-C PD3.0/2.0 or BC1.2 fast-charging power source. A 3-position DIP switch lets you select 5V, 9V, 12V, 15V or 20V output with no soldering, firmware or programming required, making it a handy addition for makers, students and engineers across Singapore's IoT and Industry 4.0 projects.

Its onboard USB-C input and 2-pin screw terminal output make it easy to turn a standard PD charger or power bank into a compact, adjustable DC bench supply.


FEATURES

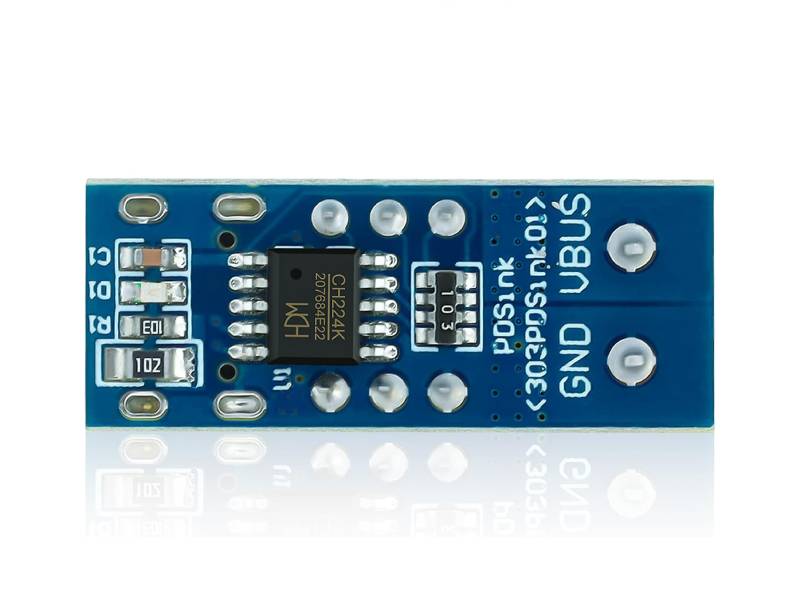

  • Built around the CH224K USB PD/QC decoy IC — negotiates voltage with no MCU or firmware needed
  • Supports USB PD 3.0, USB PD 2.0 and BC1.2 fast-charging protocols

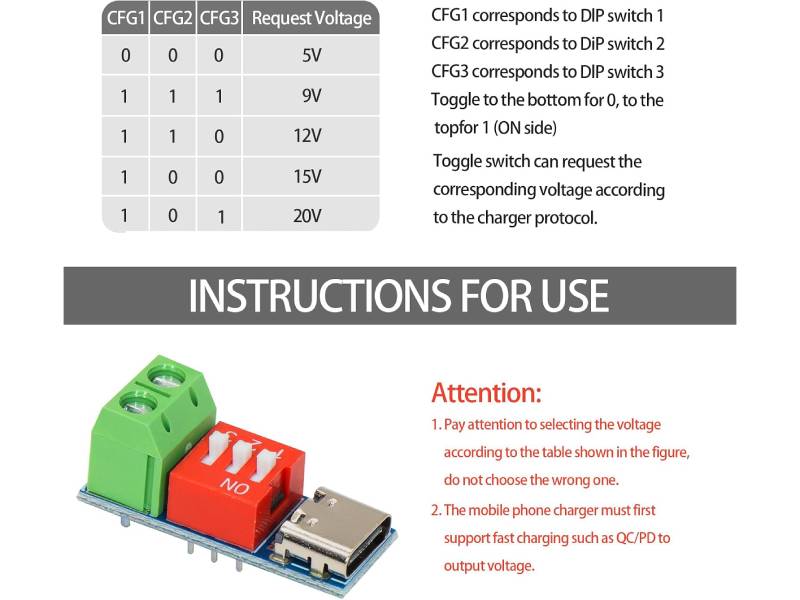

  • 3-position DIP switch (CFG1–CFG3) selects the requested output voltage
  • Selectable output voltages: 5V, 9V, 12V, 15V or 20V
  • USB Type-C input connector for direct connection to any PD charger or power bank
  • 2-pin screw terminal output (VBUS, GND) for easy wiring to your load

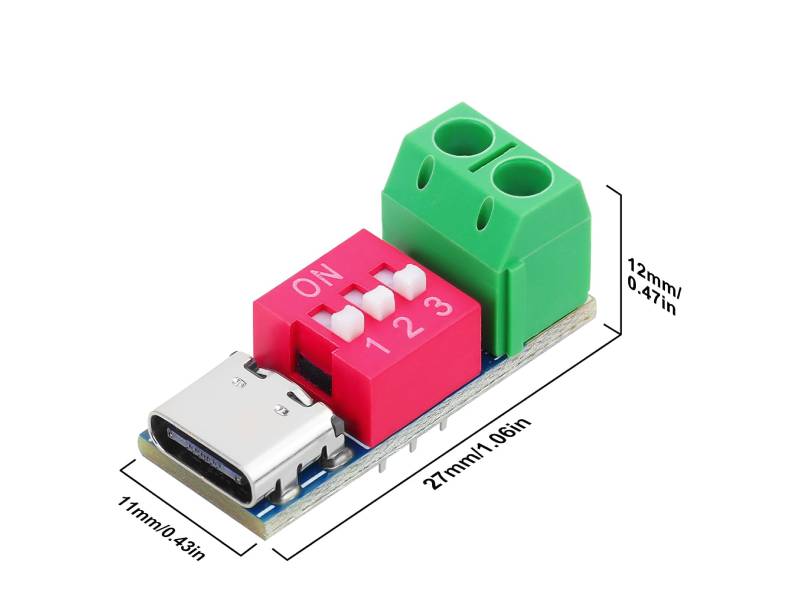

  • Compact form factor at just 27 x 11 x 12mm


APPLICATIONS

  • Turning a USB-C PD charger or power bank into a compact adjustable DC bench supply
  • Powering Arduino, ESP32, Raspberry Pi and other maker or IoT projects that need a higher-voltage rail
  • Driving USB-C PD-compatible soldering irons and heating elements that require a 20V trigger
  • Retrofitting older DC barrel-jack devices to run from USB-C PD power
  • Classroom and STEM demonstrations of USB Power Delivery voltage negotiation
  • Powering portable test and field equipment from USB-C PD power banks


TECHNICAL DETAILS

  • PD Trigger IC: CH224K
  • Input Connector: USB Type-C
  • Output Connector: 2-pin screw terminal (VBUS, GND)
  • Supported Protocols: USB PD 3.0, USB PD 2.0, BC1.2
  • Selectable Output Voltages: 5V / 9V / 12V / 15V / 20V
  • Voltage Selection: 3-position DIP switch (CFG1, CFG2, CFG3)
  • Board Dimensions: 27mm x 11mm x 12mm
  • Power Source Requirement: PD Charger


SHIPPING LIST

  • 1x USB-C PD Trigger Module
