USB Power Meter, Supports Fast Charging 5A

DESCRIPTION

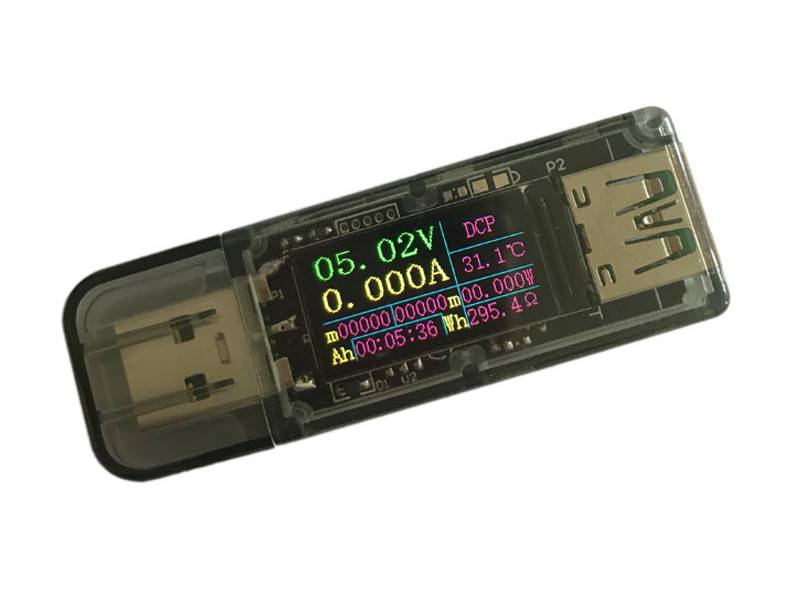

The ZK-UT USB Power Meter is a compact 5A tester that shows voltage, current, power, capacity, energy and elapsed time on a 0.96-inch IPS colour screen. It is a handy tool for checking chargers, power banks and cables, and suits makers, schools and repair benches in Singapore that need to verify what a USB device really draws.

Its 5A high-current USB interface and wide fast charging protocol recognition make it a practical diagnostic tool for modern fast-charging setups.

FEATURES

• 5A high-current USB interface for measuring up to 5A, reducing the risk of interface burnout from overheating
• Fast charging recognition for QC2.0, QC3.0, Apple 2.4A/2.1A/1A/0.5A, Android DCP, Samsung AFC, Huawei FCP and Huawei SCP

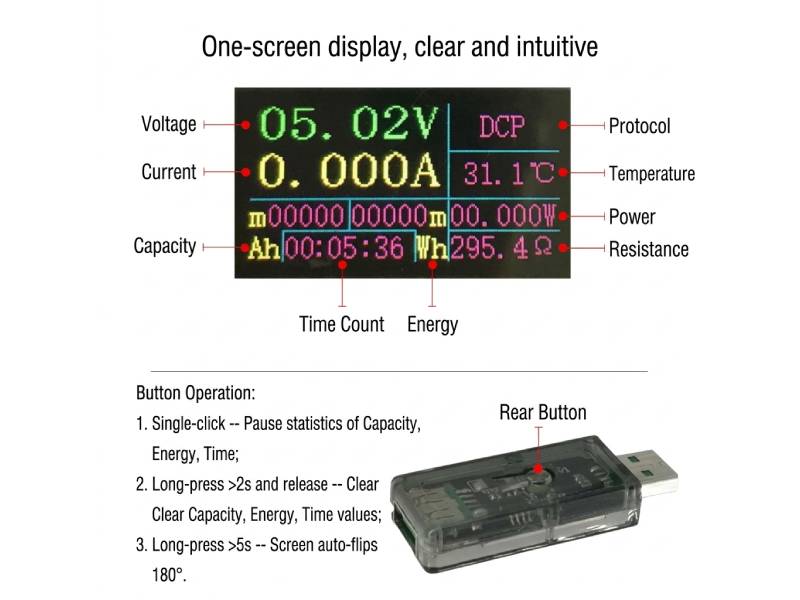

• 0.96-inch IPS colour LCD with real-time display at a 2Hz refresh rate
• Measures voltage from 3.70V to 30.00V, current up to 5.000A and power up to 150W
• Accumulates capacity (mAh), energy (mWh) and elapsed time of up to 100 hours
• Capacity, energy and time readings can be paused or reset
• Load impedance and temperature readings (0 to 80°C)

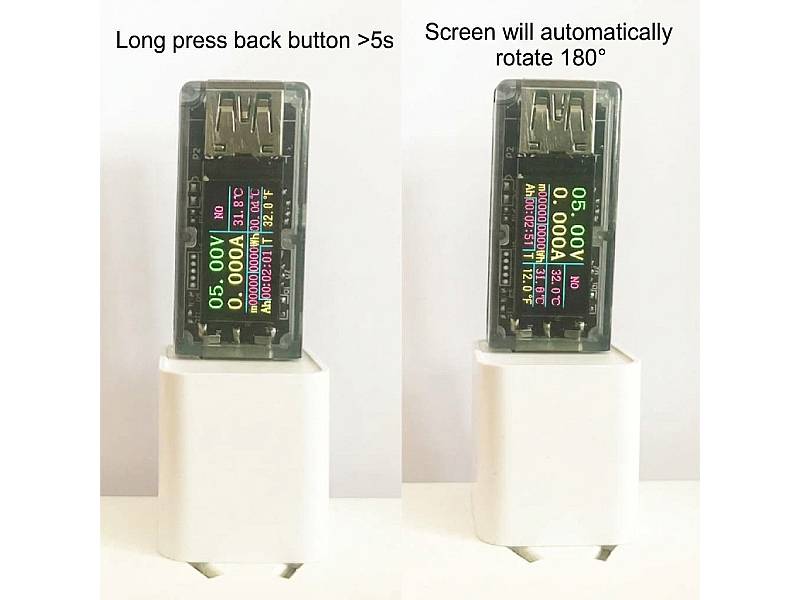

• Rotatable screen for flexible orientation

APPLICATIONS

• Testing the real output of USB chargers and power banks
• Measuring the usable capacity and energy of power banks and batteries
• Checking cable quality and voltage drop under load
• Identifying the fast charging protocol used by a charger or device
• Monitoring the power draw of Arduino, Raspberry Pi and other maker projects
• Bench diagnostics for repair work and electronics classes

TECHNICAL DETAILS

• Model: ZK-UT
• Measurement Voltage: 3.70V to 30.00V
• Measurement Current: 0.000A to 5.000A
• Power Measurement Range: 0 to 150W
• Capacity Measurement Range: 0 to 99999mAh
• Energy Measurement Range: 0 to 99999mWh
• Time Measurement Range: 00:00:00 to 99:59:59 (maximum 100 hours)
• Load Impedance Measurement Range: 0.5 to 999.90Ω
• Temperature Measurement Range: 0 to 80°C
• Temperature Measurement Error: ±3°C
• Voltage Resolution: 0.01V
• Current Resolution: 0.001A
• Voltage Accuracy: ±(1% + 2 digits)
• Current Accuracy: ±(2% + 2 digits)
• Data Refresh Rate: 2Hz
• Display: 0.96-inch IPS colour LCD
• Operating Temperature: 0 to 70°C

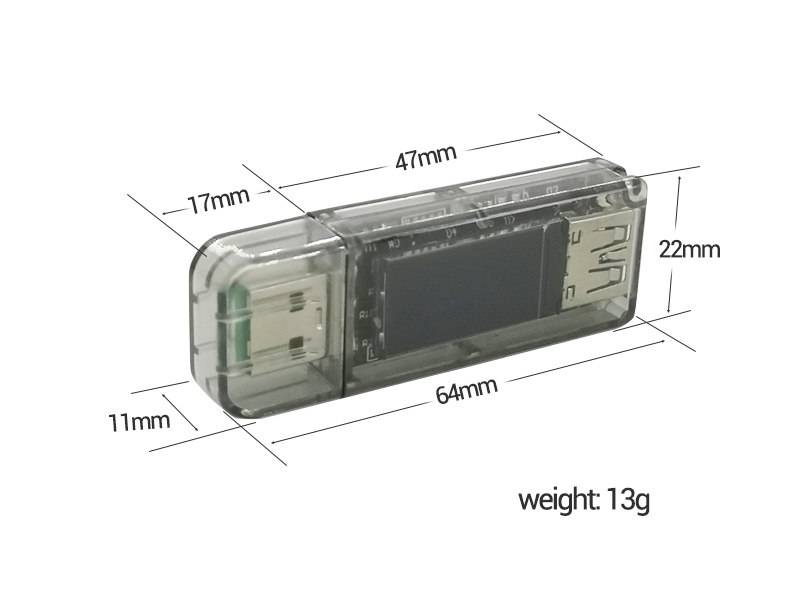

• Dimensions: 64mm x 22mm x 11mm
• Weight (with packaging): 28g

SHIPPING LIST

• 1x USB Power Meter
