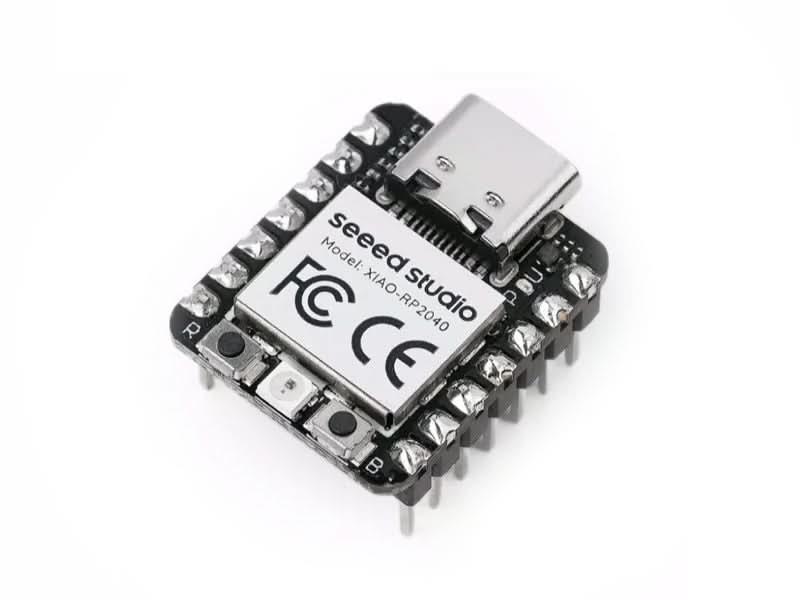

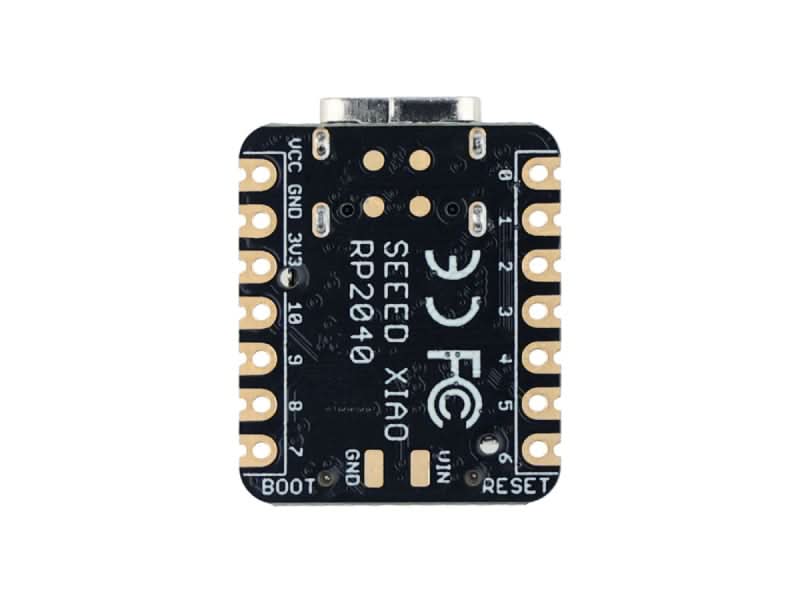

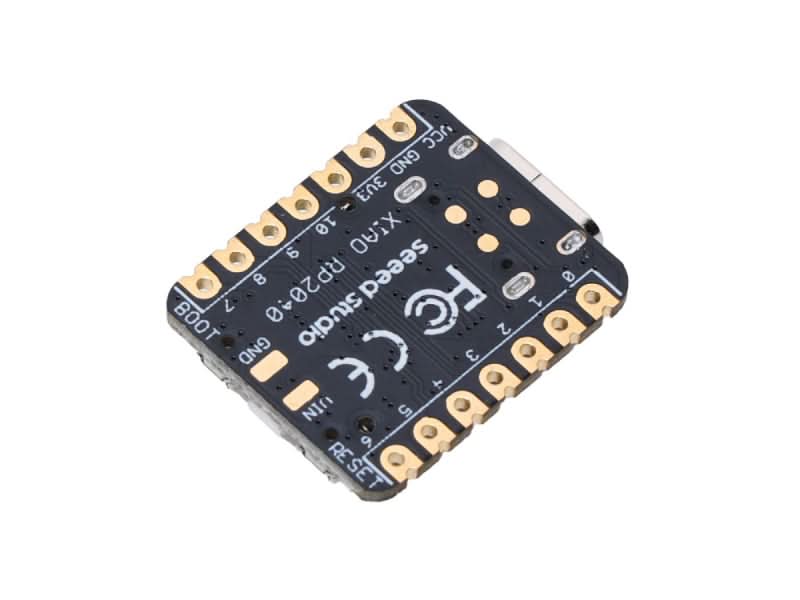

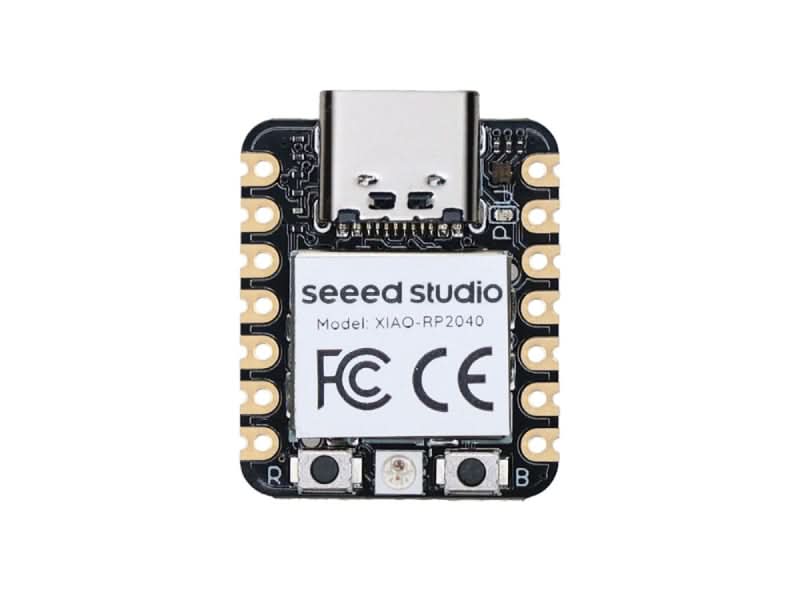

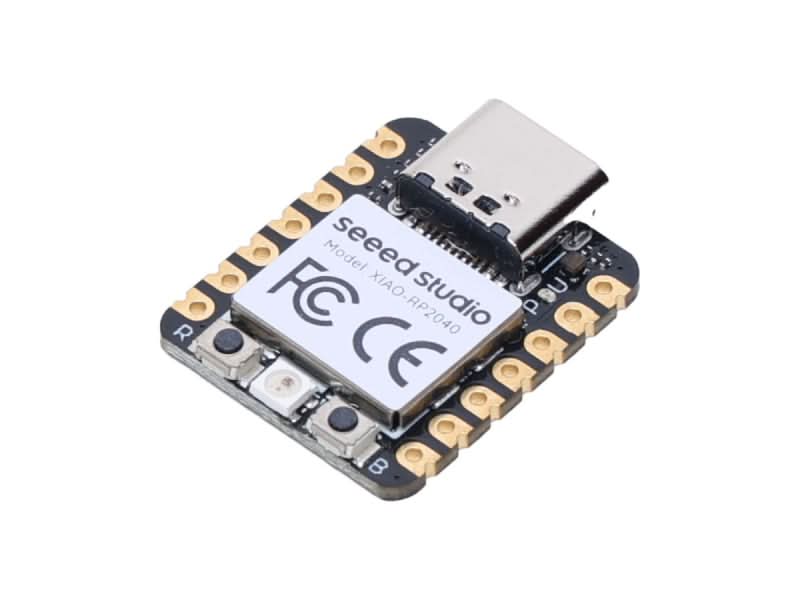

XIAO RP2040

DESCRIPTION

XIAO RP2040 is a compact, Arduino-compatible dev board based on Raspberry Pi RP2040. As the smallest Raspberry Pi Pico board, it features a thumb-sized and surface-mount design. Thanks to its compatibility with multiple programming languages (C, Python, Go, Rust) and a wide range of available libraries, it's a cost-effective and user-friendly microcontroller for learning coding and electronics basics.

FEATURES

• Perfect Toolset for Learning Coding and Electronics
  XIAO RP2040 offers an extensive development ecosystem that makes coding accessible for beginners while providing powerful tools for experienced developers. Code with Arduino IDE for rapid prototyping, utilize C/C++ SDK for optimal performance, explore MicroPython/CircuitPython for quick scripting, or develop with Rust and Go for modern applications. Backed by comprehensive documentation and an active Raspberry Pi community, you'll find abundant examples and resources to kickstart your projects. The board features both a 3-color User LED and an RGB LED, making it easy to add visual indicators or stunning light effects to enhance both functionality and creativity.

• Classic Form Factor and Extensive Seeed Studio XIAO Ecosystem
  Launched in 2021, XIAO RP2040 with the classic XIAO compact design of 21 x 17.8mm. Its native compatibility with the comprehensive XIAO Add-on ecosystem - from expansion boards, sensors and displays to connectivity modules and actuators (Grove Expansion, CAN-Bus, LoRa module, LED Matrix, Vision AI Sensor, Round Display, L76K GSP module, 2-Mic Array, ePaper Displays, mmWave sensor, AC relay, Bus Servo Driver and many more) - makes it versatile for any project, no matter how simple or complex.

HARDWARE OVERVIEW

APPLICATIONS

• Learning & Education - Arduino, MicroPython, CircuitPython, TinyGo, Rust, embedded systems basics
• USB HID Devices - Custom keyboards, stream decks, arcade controllers, MIDI interfaces
• Wearable Projects - Smart accessories, LED clothing, wrist devices, sensor wearables
• IoT & Sensors - Environmental monitoring, smart home panels, weather stations, MQTT
• Display Projects - LED matrices, POV displays, rotating LED spheres
• Development - Rapid prototyping, hardware testing, PCB validation
• Robotics - Basic motor control, sensor integration, automation
• Audio/Video - Sound processing, media controls, visualizations

TECHNICAL DETAILS

• Chipest: Raspberry Pi 2040
• Processor: Dual Cortex M0+ processor running at up to 133 MHz
• RAM: 264KB SRAM
• Flash: 2MB Onboard Flash
• Interface: GPIO Pin x14, Digital Pin x11, Analog Pin x4, I2C x1, UART x1, SPI x1, PWM x11
• Onboard: User LED (3 Colors) x1, Power LED x1, RGB LED x1, Reset Button x1, Boot Button x1
• Power: Input Voltage (Type-C): 5V, lnput Voltage (BAT): 5V
• Software Compatibility: Arduino, PlatformIO, MicroPython, CircuitPython, tinyGo, Rust, Zephyr, and more to come
• Working Temperature: -20°C-70°C

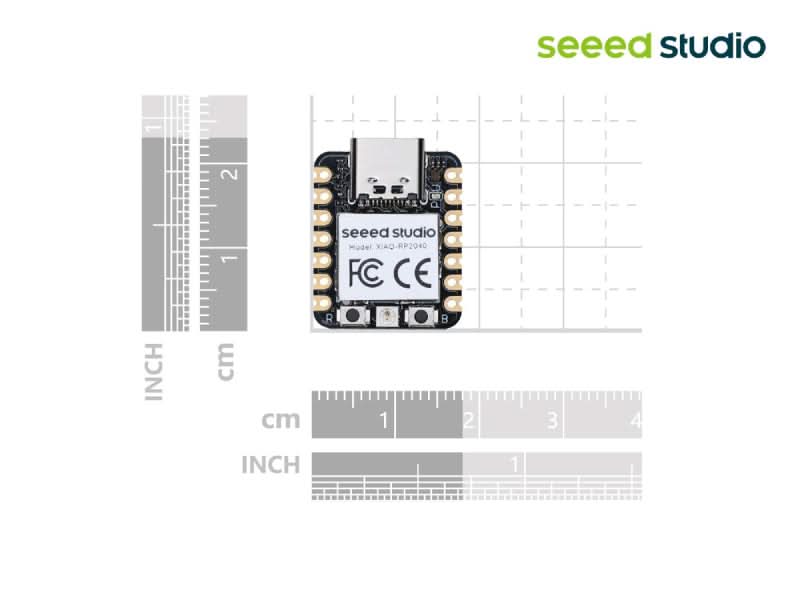

• Dimensions: 21x17.8mm

DOCUMENTS

• Wiki-XIAO RP2040 Resources

SHIPPING LIST

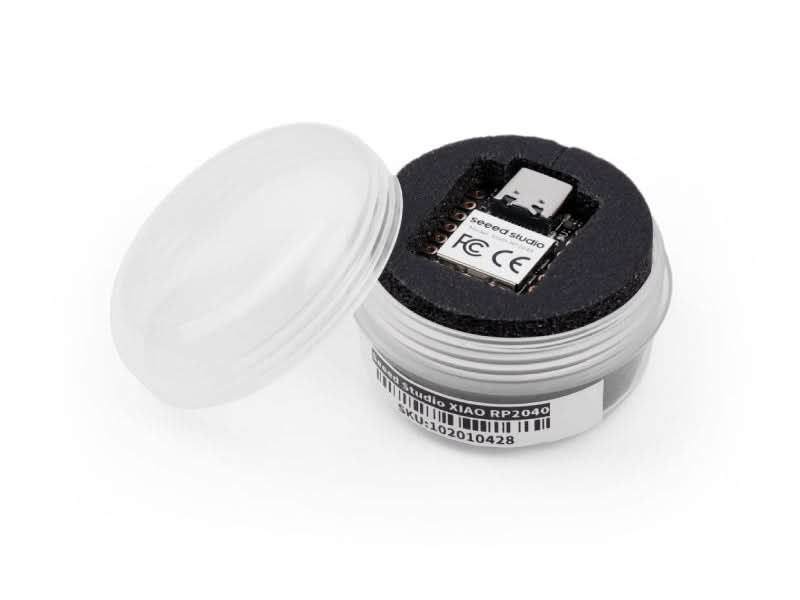

• 1x XIAO RP2040 Soldered
