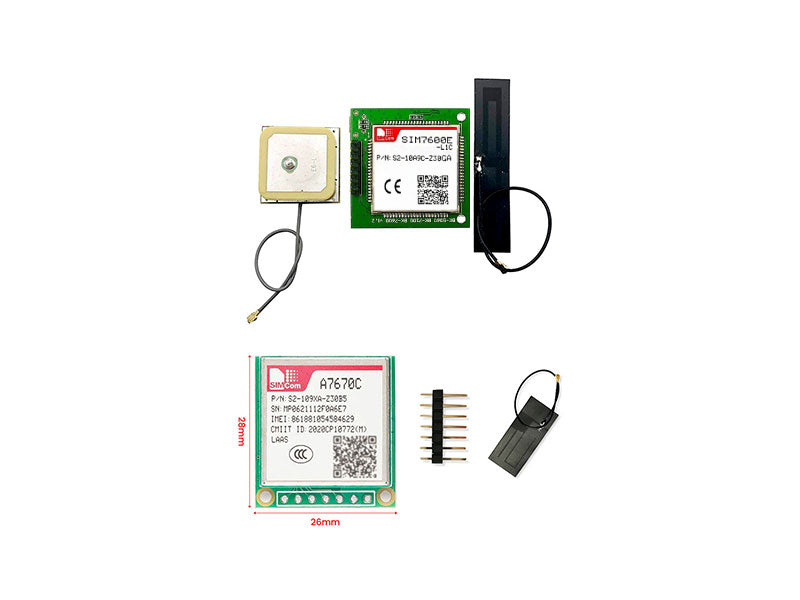

4G 3G GPS GSM Module SIM7600E-L1C A7670C

DESCRIPTION

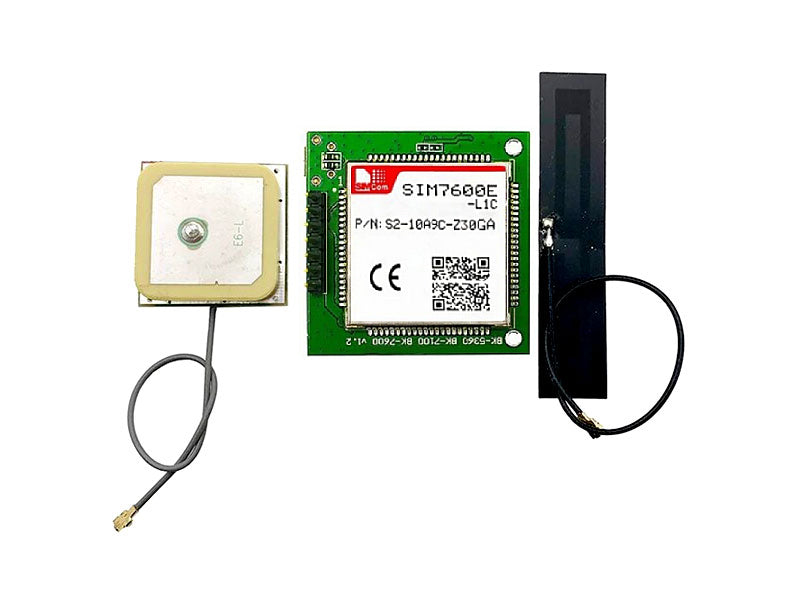

SIM7600E-L1C is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCC type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. Designed in the compact and unified form factor, SIM7600E-L1C is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600E-H module.

A7670C is a 4G LTE Breakout Board which supports wireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The A7670 series adopts LGA form factor and is compatible with SIM7000/SIM7070 series (NB-IoT/Cat M) and SIM800A/SIM800F (2G). AT commands are compatible with SIM7500/SIM7600 series modules.

This GSM module can be used in Singapore.

SIM7600E-L1C:

• LTE-TDD B38/B40/B41

• LTE-FDD B1/B3/B5/B7/B8/B20

• UMTS/HSPA+ B1/B5/B8

• GSM/GPRS/EDGE B3/B8

• LTE CAT1

  • Uplink up to 5Mbps

  • Downlink up to 10Mbps

• HSPA+

  • Uplink up to 5.76Mbps

  • Downlink up to 42Mbps

• UMTS

  • Uplink/Downlink up to 384Kbps

• EDGE

  • Uplink/Downlink up to 236.8Kbps

• GPRS

  • Uplink/Downlink up to 85.6Kbps

A7670C:

• Frequency Band: GSM 900/1800MHz, LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41

• Form Factor: LGA, 24.0mm x 24.0mm x 2.3mm

• Interface: UART, USB, I2C, GPIO

• Data Transfer LTE (mbps): 10 Downlink, 5 Uplink

• EDGE (kbps): 236.8 Downlink, 236.8 Uplink

• GPRS (kbps): 85.6 Downlink, 85.6 Uplink

• Protocol: TCP/IP/IPV4/IPV6/Multi PDP/FTP/FTPS/HTTP/DNS

TECHNICAL DETAILS

• Control Via AT Commands
• Input Voltage 5V
• Logic Level: 3.3V
• Default Baud Rate: 115200
• Operation temperature: -40°C to +85°C

SHIPPING LIST

• 1x GSM Module
• 1x GPS Antenna (SIM7600 only)
• 1x GSM Antenna
