DESCRIPTION

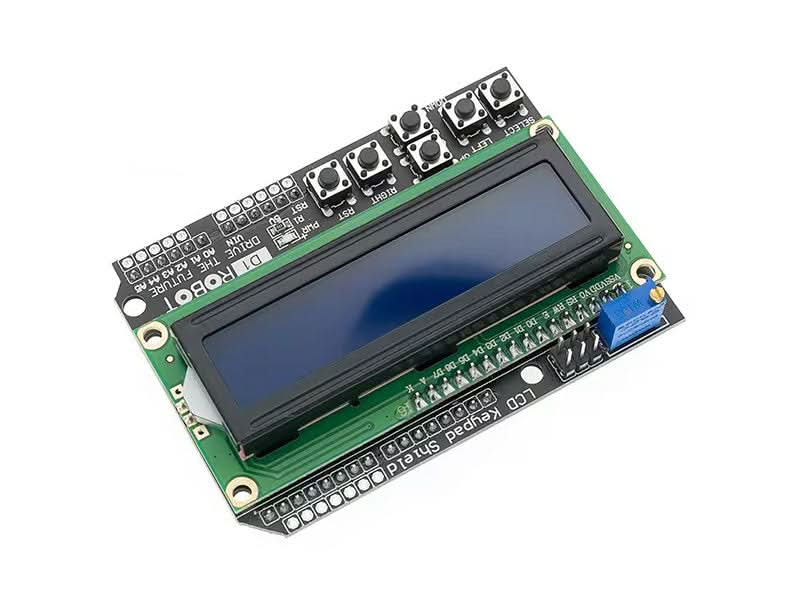

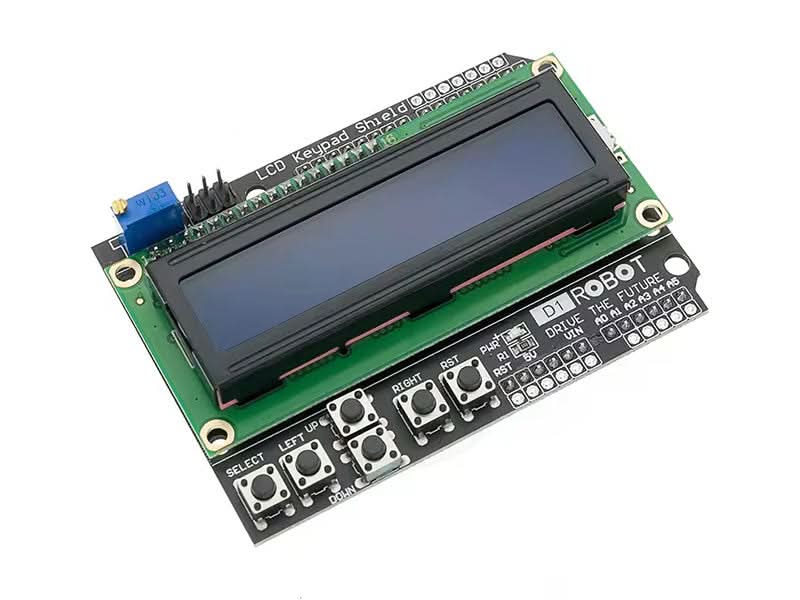

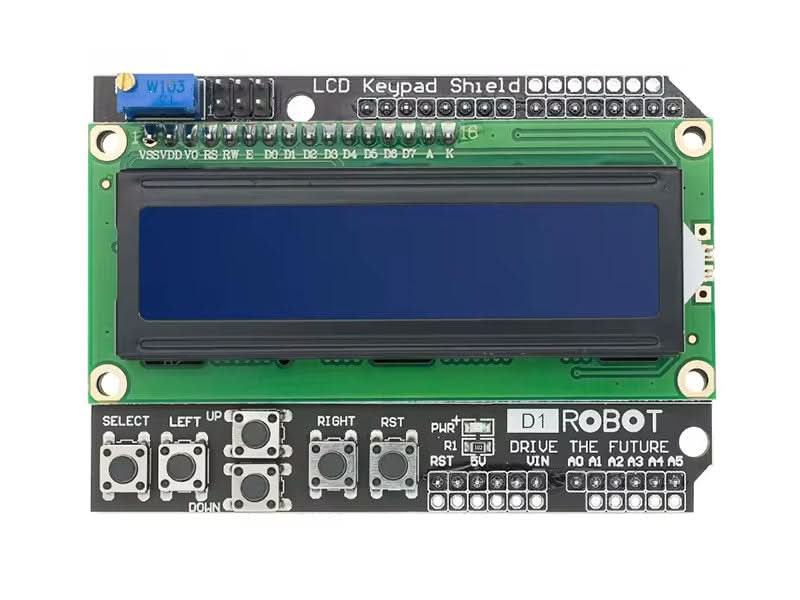

The LCD Keypad Shield is an essential plug-and-play interface module designed for Arduino Uno, Mega, Leonardo, and compatible boards. Ideal for makers, students, and engineers across Singapore, this shield eliminates the complexity of breadboard wiring by integrating a 16x2 character LCD display and a 6-button navigation keypad onto a single stackable PCB — ready to use straight out of the box.
The shield consists of a 1602 white character, blue backlight LCD, with a keypad featuring five directional keys — Select, Up, Right, Down, and Left — making it perfect for building menu-driven interfaces in embedded projects. To conserve digital I/O pins, the keypad interface uses only one ADC channel (Analog Pin A0) to read all push buttons, freeing up resources for sensors, actuators, and other peripherals.
An on-board potentiometer allows contrast adjustment, and a dedicated Arduino reset button enables fast debugging without disconnecting your board. Backlight brightness is controlled via Pin D10, supporting both full on/off switching and PWM-based dimming for power-sensitive applications.
Whether you are building a temperature monitor, a data logger, a smart home controller, or a robotics project, the LCD Keypad Shield provides a clean, professional user interface with minimal setup time. It is widely used in Singapore polytechnic and ITE maker labs, hackathon prototyping, and DIY electronics projects.
Compatible with the standard Arduino LiquidCrystal library and requires no soldering — simply stack onto your Arduino board and start coding.
TECHNICAL DETAILS
- Display Type: 1602 LCD (16 columns × 2 rows character display)
- Backlight: Blue background with white characters
- Operating Voltage: 5V DC
- LCD Control Pins: D4, D5, D6, D7 (data); D8 (RS); D9 (EN)
- Backlight Control Pin: D10 (PWM-capable for brightness dimming)
- Button Input Pin: Analog A0 (all 5 navigation buttons multiplexed)
- Buttons: 5 navigation keys (Right, Up, Down, Left, Select) + 1 Reset button
- Contrast Adjustment: On-board potentiometer
- Power Indicator: On-board LED
- Form Factor: Arduino shield (stackable, no soldering required)
- Compatible Boards: Arduino Uno, Mega, Leonardo, Diecimila, Duemilanove, Freeduino
- Library Support: Arduino LiquidCrystal
