DESCRIPTION
Accelerate your AI edge computing projects with this fully equipped NVIDIA Jetson Orin Nano Super Developer Kit bundle, purpose-built for engineers, researchers, and developers in Singapore's fast-growing deep tech and smart nation ecosystem.

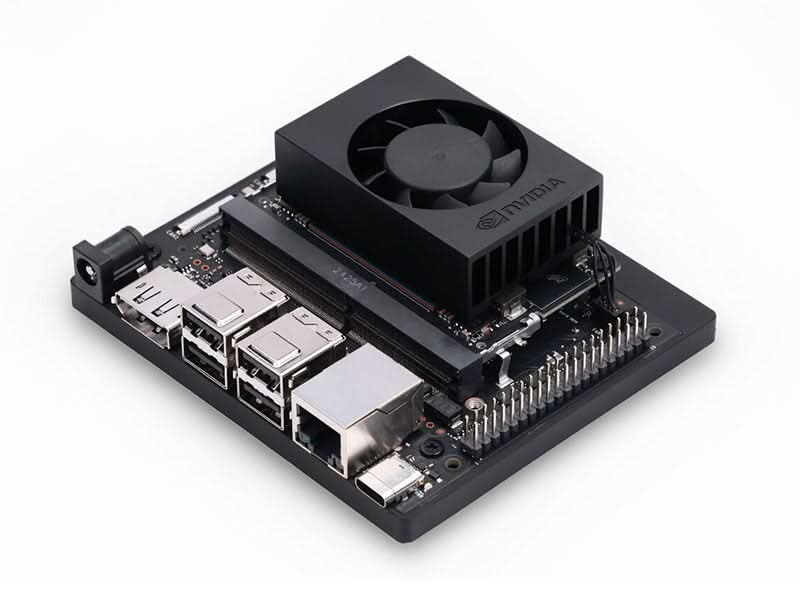

At the heart of this bundle is the NVIDIA Jetson Orin Nano Super Developer Kit (8GB), delivering up to 67 TOPS of AI performance — a dramatic leap over its predecessor — making it ideal for robotics, computer vision, natural language processing, and industrial IoT applications. Whether you're prototyping autonomous systems, deploying inference workloads at the edge, or building smart surveillance solutions, this kit provides the compute headroom to get the job done.
Storage performance is handled by a 256GB NVMe M.2 PCIe Gen3x4 2280 SSD, ensuring fast OS boot times, rapid dataset access, and smooth multitasking across AI frameworks such as TensorRT, PyTorch, and ROS 2.
Wireless connectivity is powered by the RTL8822CE Wireless NIC, supporting 2.4GHz/5GHz dual-band WiFi 5 (802.11ac) and Bluetooth 5.0 — fully compatible with the Jetson Orin platform. Signal reach and stability are further enhanced by the included 2.4G/5G external antenna featuring an RP-SMA male connector and a 130mm 1.13 coaxial cable, ideal for deployment in workshops, labs, and embedded enclosures where internal antennas fall short.
Powering the entire system is a dedicated 19V 4.74A (90W) power adapter with a 3-pin plug and power cord, providing stable, reliable power delivery suited to the Jetson Orin Nano's thermal and performance requirements.
This bundle ships ready to use — no compatibility guesswork, no missing components. It is an ideal starting point for NUS/NTU research labs, SGInnovate-backed startups, IMDA sandbox projects, and MNC R&D centres across Singapore.
TECHNICAL DETAILS
Compute Module — NVIDIA Jetson Orin Nano Super Developer Kit
- AI Performance: Up to 67 TOPS
- GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
- Memory: 8GB 128-bit LPDDR5
- Memory Bandwidth: 68 GB/s
- Storage Interface: M.2 Key M NVMe (PCIe Gen3x4)
- Video Encode/Decode: NVENC / NVDEC hardware accelerators
- Camera: Up to 4x MIPI CSI-2 cameras
- Display: HDMI 2.1, DisplayPort 1.4
- USB: USB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A, USB 2.0 Type-A, USB-C (UFP)
- Networking: Gigabit Ethernet (RJ45), M.2 Key E (PCIe/USB for wireless NIC)
- Operating System: Ubuntu 20.04 LTS (JetPack SDK)

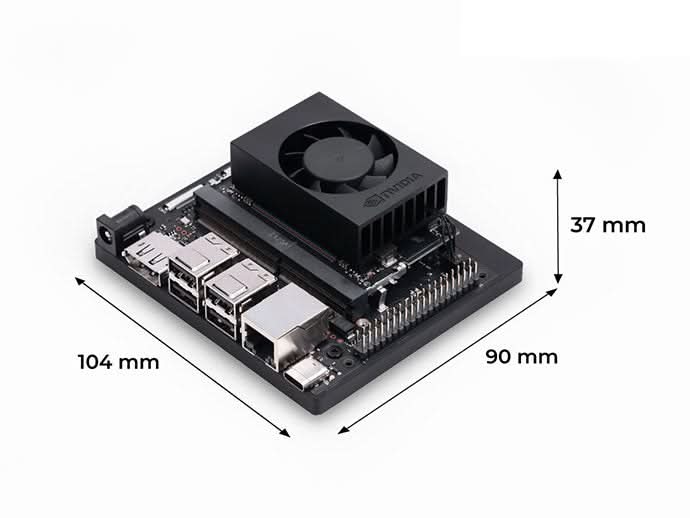

- Form Factor: Developer Carrier Board
- Power: 7W – 25W configurable
Storage — NVMe SSD
- Capacity: 256GB
- Interface: M.2 2280, PCIe Gen3x4 NVMe
- Form Factor: M.2 2280 (80mm)
Wireless NIC — RTL8822CE
- Chipset: Realtek RTL8822CE
- WiFi Standards: IEEE 802.11a/b/g/n/ac (WiFi 5)
- Frequency Bands: 2.4GHz / 5GHz dual-band
- Bluetooth: Bluetooth 5.0
- Interface: M.2 Key E (PCIe + USB)
- Compatibility: Jetson Orin Nano / NX platforms
External Antenna
- Connector Type: RP-SMA Male
- Frequency Support: 2.4GHz / 5GHz
- Cable Type: 1.13 Coaxial
- Cable Length: 130mm
- Compatible With: RTL8822CE and standard RP-SMA wireless NICs
Power Adapter
- Output Voltage: 19V DC
- Output Current: 4.74A
- Output Power: ~90W
- Connector: Barrel jack (Jetson Orin compatible)

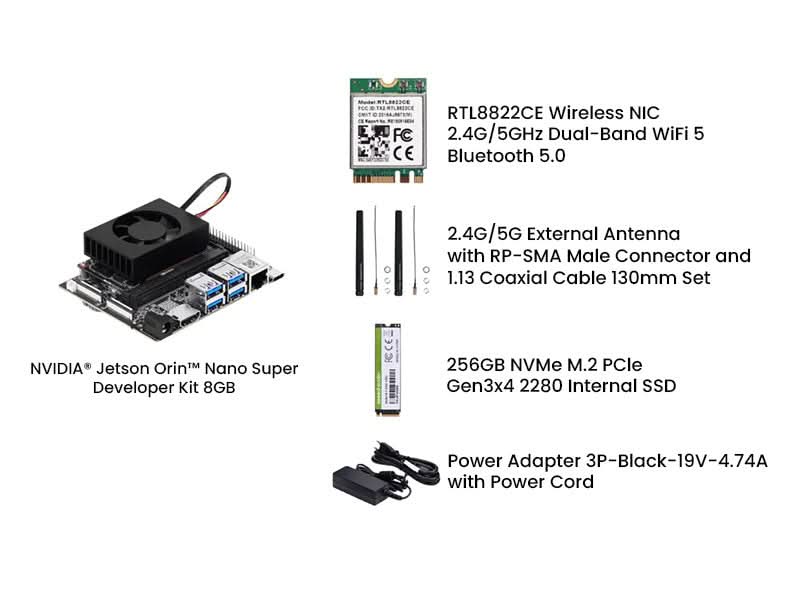

SHIPPING LIST

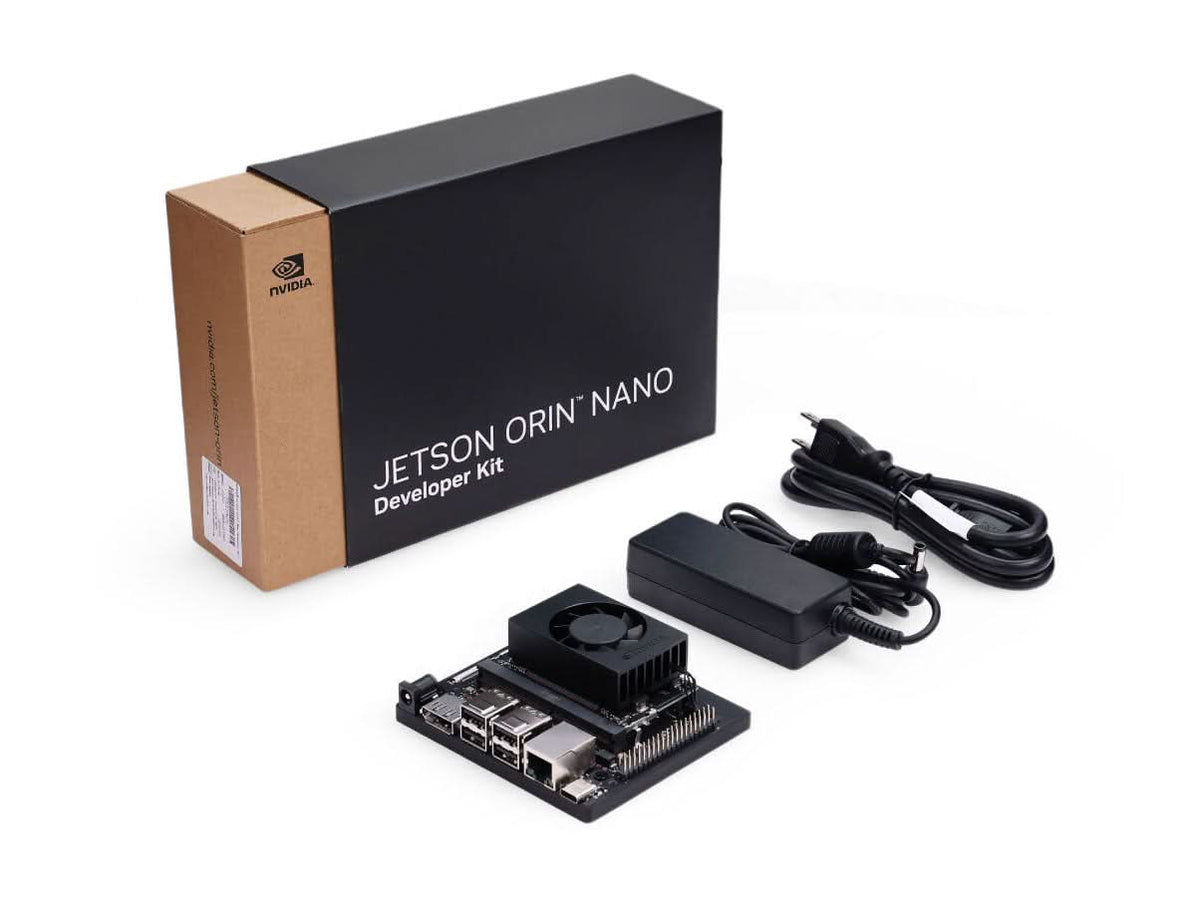

- 1x NVIDIA® Jetson Orin™ Nano Super Developer Kit 8GB
- 1x 2.4G/5G External Antenna with RP-SMA Male Connector and 1.13 Coaxial Cable 130mm Set
- 1x 256GB NVMe M.2 PCle Gen3x4 2280 Internal SSD
- 1x RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0
- 1x Power Adapter 3P-Black-19V-4.74A with Power Cord
