DESCRIPTION

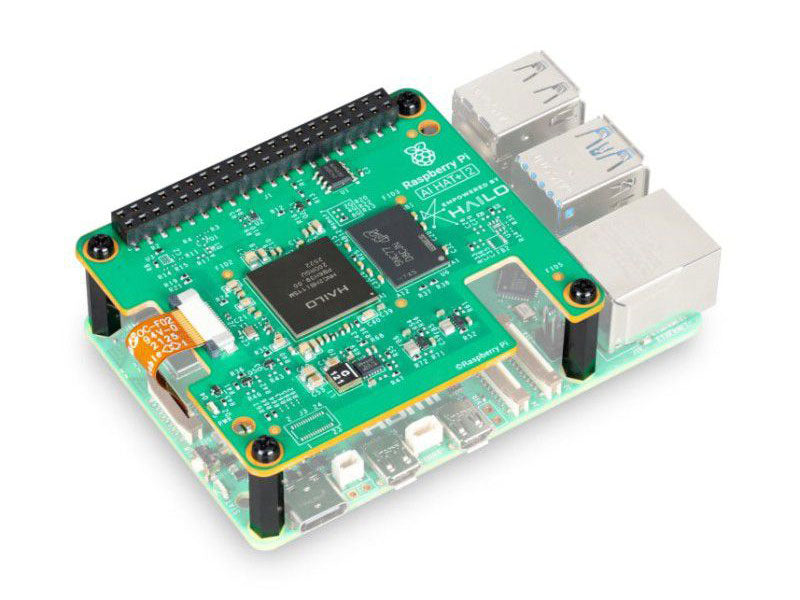

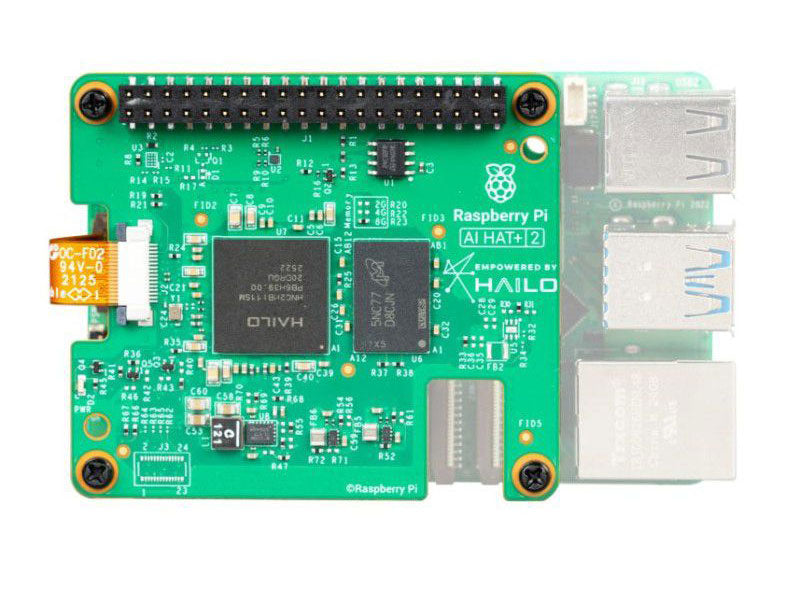

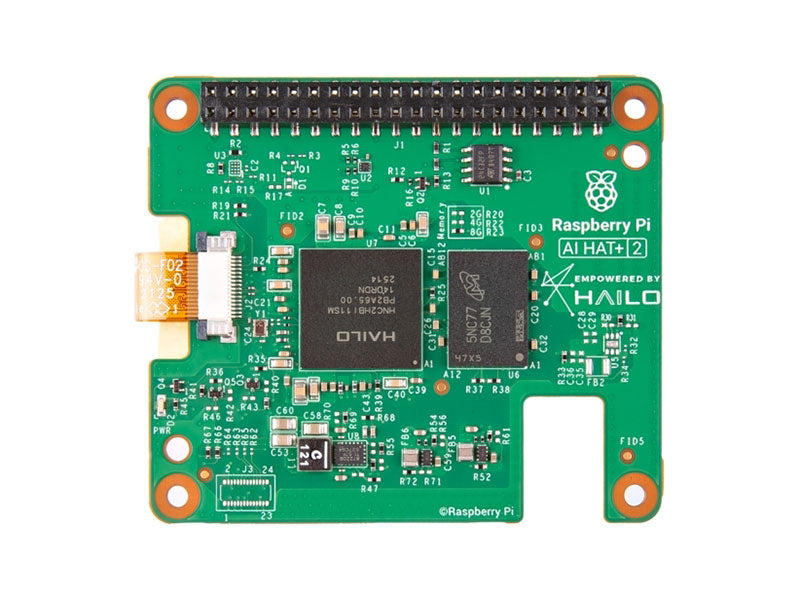

The Raspberry Pi AI HAT+ 2 is a powerful AI accelerator add-on board for Raspberry Pi 5, built around the Hailo-10H neural processing unit. Designed for makers, educators, and industry developers in Singapore and beyond, it enables real-time edge AI applications — from intelligent vision systems to IoT automation and Industry 4.0 inferencing — without relying on cloud connectivity.
Delivering 40 TOPS of INT4 inferencing performance and equipped with 8GB of dedicated LPDDR4X-4267 on-board RAM, the AI HAT+ 2 can run large language models (LLMs) and vision-language models (VLMs) directly on-device, leaving the host Raspberry Pi 5 CPU free for other tasks.
FEATURES
- Powered by the Hailo-10H NPU with 40 TOPS of INT4 inferencing performance
- 8GB LPDDR4X-4267 SDRAM dedicated on-board — offloads AI workloads from the host CPU
- Supports local generative AI: run LLMs and vision-language models (VLMs) on-device
- Connects via PCIe to Raspberry Pi 5 for high-bandwidth, low-latency data transfer
- Compatible exclusively with Raspberry Pi 5
- Includes heatsink, PCIe flex cable, stacking GPIO header, and all mounting hardware
- Compact form factor: 66 mm × 56.5 mm — fits neatly atop Raspberry Pi 5
APPLICATIONS
- On-device large language model (LLM) and chatbot inference
- Real-time computer vision and object detection at the edge
- Vision-language model (VLM) applications without cloud dependency
- Smart home automation with local AI processing
- Industrial edge AI and Industry 4.0 quality inspection systems
- Educational AI research and prototyping platforms
TECHNICAL DETAILS
- AI Accelerator: Hailo-10H NPU
- Performance: 40 TOPS (INT4 inferencing)
- On-Board RAM: 8GB LPDDR4X-4267 SDRAM
- Host Interface: PCIe (via Raspberry Pi 5 PCIe connector)
- Compatible With: Raspberry Pi 5 only
- Board Dimensions: 66 mm × 56.5 mm
SHIPPING LIST
- 1x Raspberry Pi AI HAT+ 2 (with pre-installed PCIe flex cable)
- 1x 16mm stacking GPIO header
- 1x Heatsink
- 4x 16mm black nylon standoffs/spacers
- 4x 5mm M2.5 black nylon screws
- 4x 8mm M2.5 black nylon screws
