The latest Raspberry Pi 5 now comes with a pair of FPC connectors, in the space formerly occupied by the four-pole jack and camera connector. These are four-lane MIPI interfaces, using the same higher-density pinout found on various generations of Compute Module I/O board and they are bi-directional (transceiver) interfaces, meaning that each one can connect either to a CSI-2 camera or to a DSI display! You also should try using two cameras with the new MIPI interfaces.

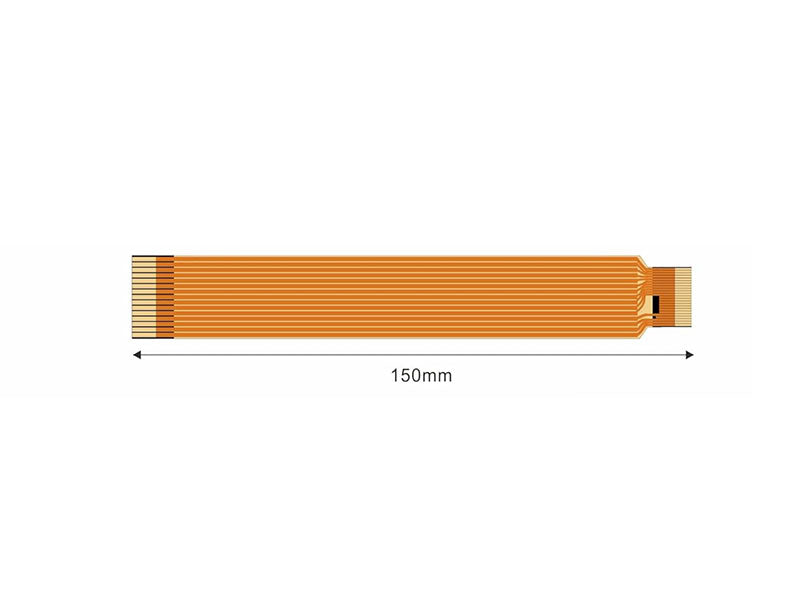

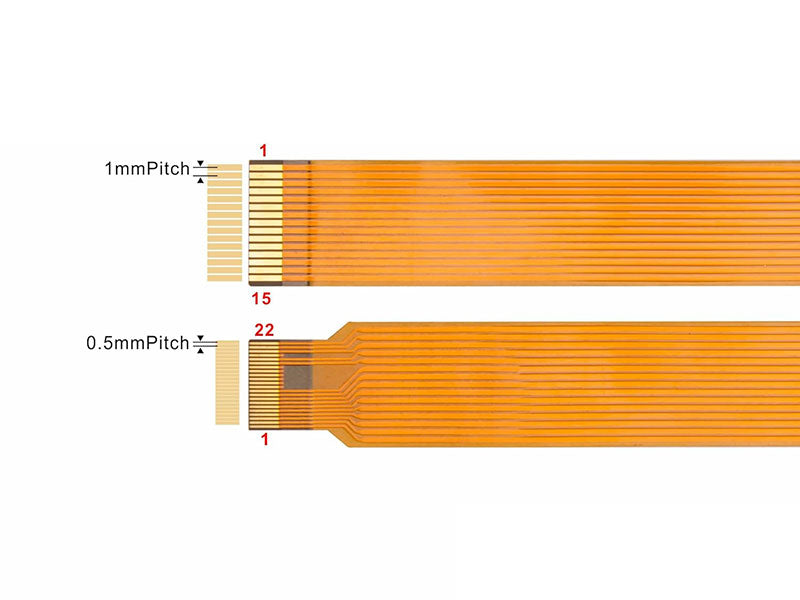

It features a 15-way connector with a 1mm pitch connecting to the camera or display and a 22-way connector with a 0.5mm pitch connecting to the Raspberry Pi 5. Wrapped with black EMI shielding film on both sides, ensuring more stable signal transmission and enhancing anti-interference performance.

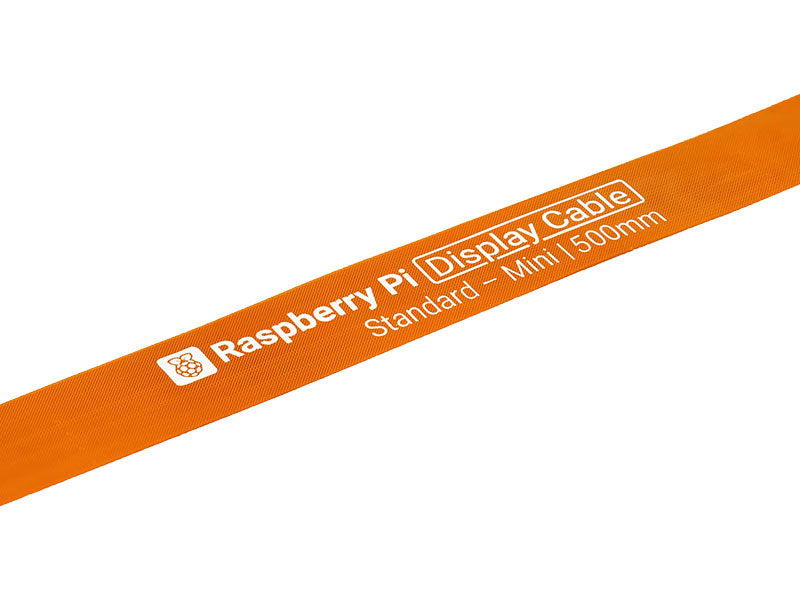

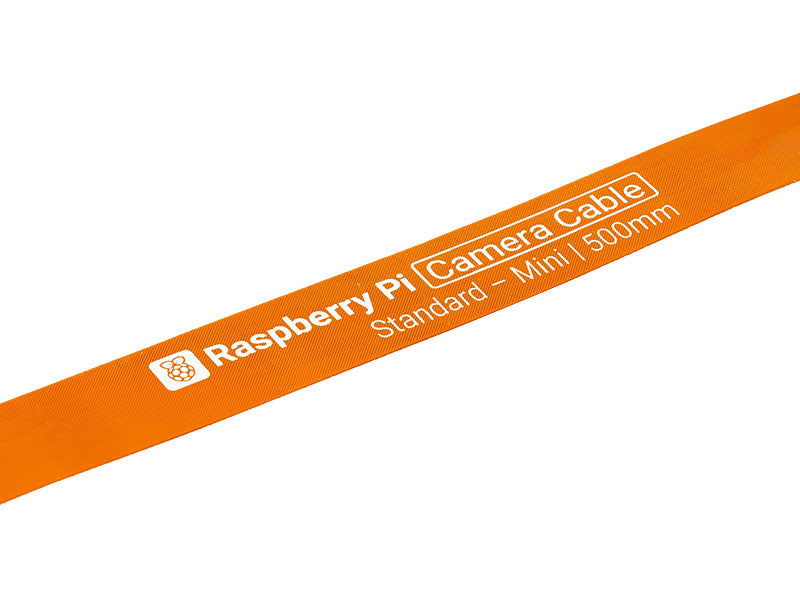

Note: CSI and DSI cables are *NOT* interchangeable. CSI cable is for camera only and DSI cable is for display only.

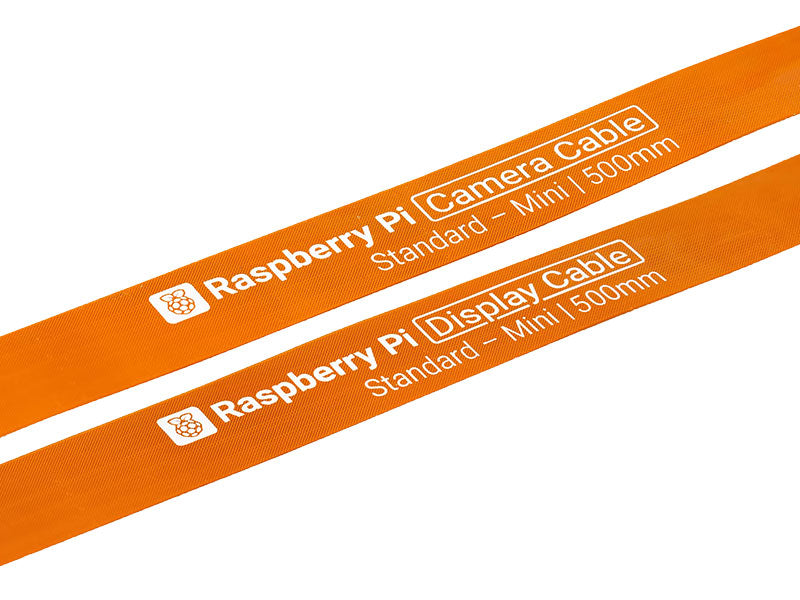

- 1x Raspberry Pi 5 CSI DSI FFC FPC Cable for Camera and Display
