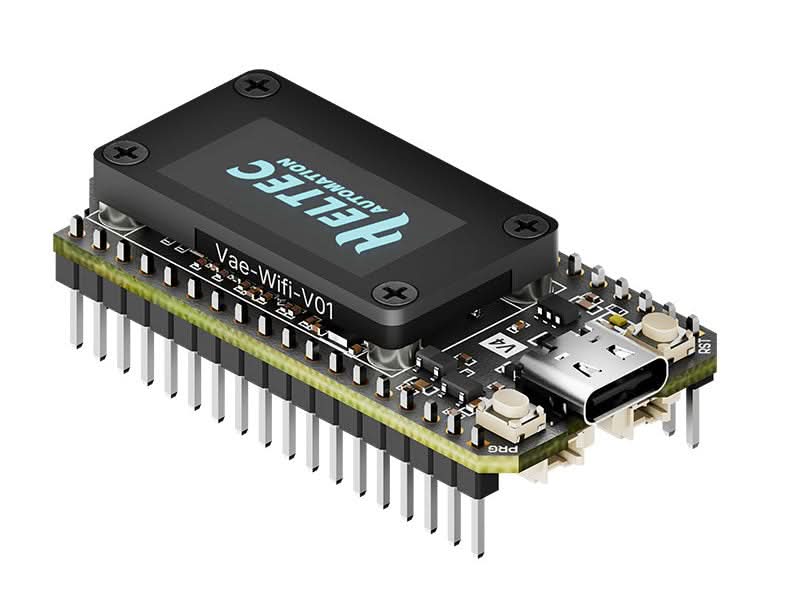

WiFi LoRa 32(V4.3.1), ESP32S3 + SX1262 LoRa Node, Meshtastic and LoRaWAN Compatible

DESCRIPTION

The WiFi LoRa 32 V4, the next gen to the Heltec V3, is a powerful, high-efficiency IoT maker board featuring an ESP32S3 MCU and SX1262 LoRa Node chip; retaining the V3’s size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output power, and a protected OLED display; its superior RF and stable system design ensure it’s ready-to-use and highly beginner-friendly, supporting development via Arduino, PlatformIO, ESP-IDF, and MicroPython; making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore in applications such as smart cities and industrial control, with custom hardware available on the Heltec MQB platform.

FEATURES

• Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
• 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
• LoRa Transmit Power: High-power version 28 dBm, Low-power version 22 dBm

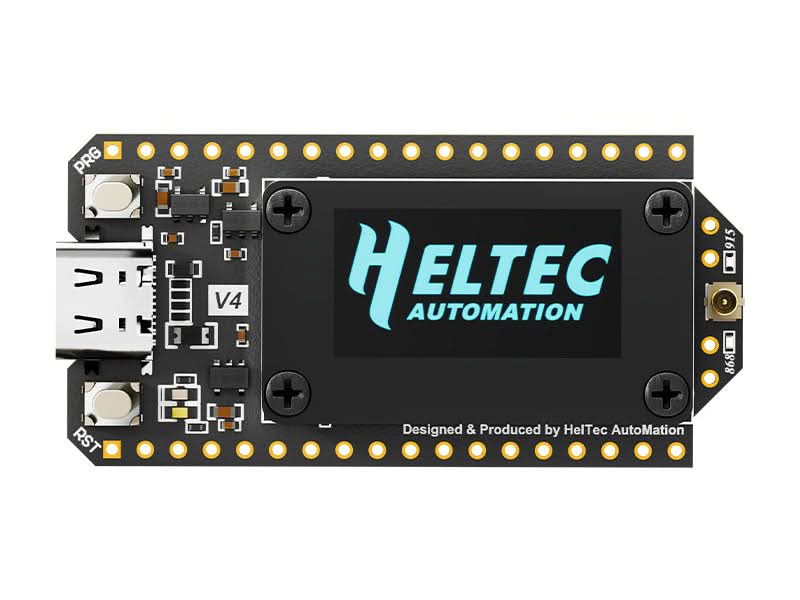

• PC casing protects the screen and integrates FPC 2.4G antenna.
• Form factor and pin compatibility with WiFi LoRa 32 V3.
• PC casing protects the screen and integrates FPC 2.4G antenna.
• Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
• Optimized lithium battery management.
• Low power consumption is less than 20μA.


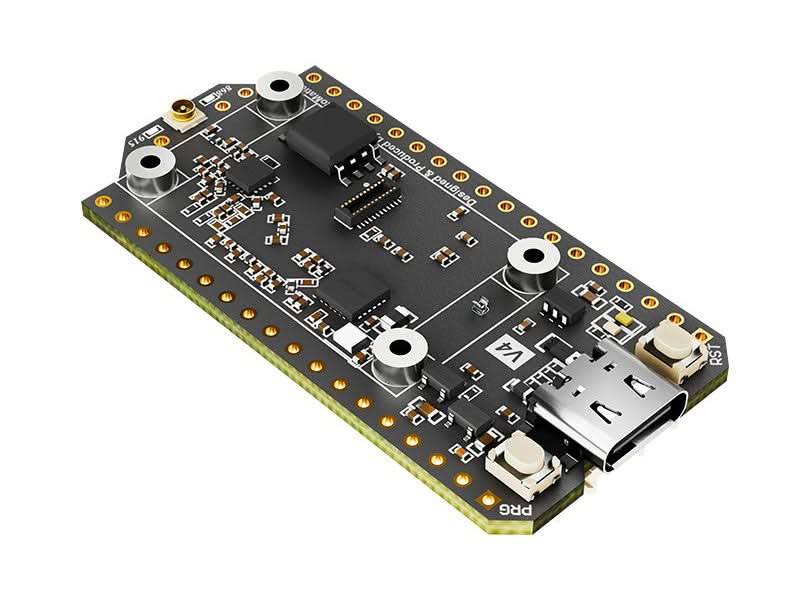

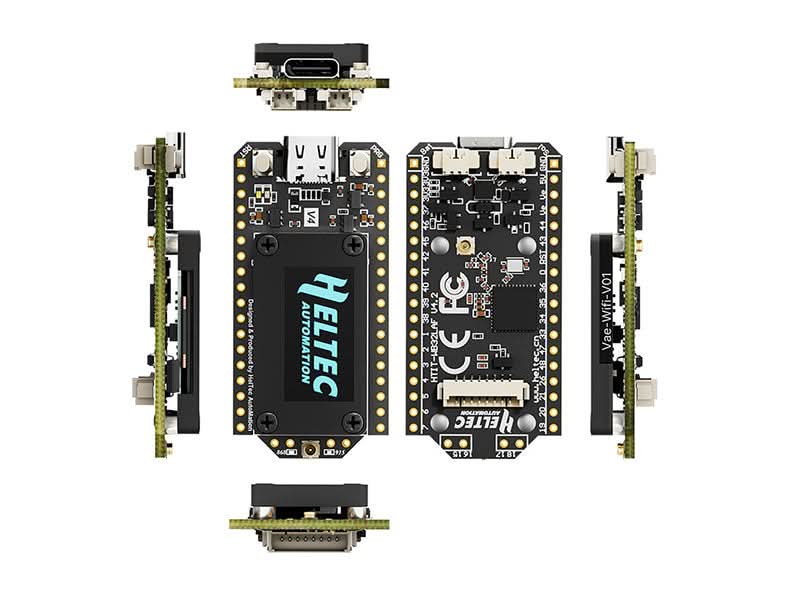

PRODUCT DETAILS

APPLICATIONS

• Wearable devices
• Wireless connect
• Embedded machine learning projects
• Perfect for mini Arduino projects
• Tiny Machine Learning application

TECHNICAL DETAILS

• MCU: ESP32-S3R2 (Xtensa®32-bit lx7 dual core processor)
• Flash: 16MB (external)
• USB to Serial Chip: Removed CP2102
• Power Management: Upgraded IC supporting solar input
• Solar Input: Added 1.25-2P interface
• LoRa TX Power: 28±1dBm
• 2.4G Antenna: FPC antenna + IPEX connector

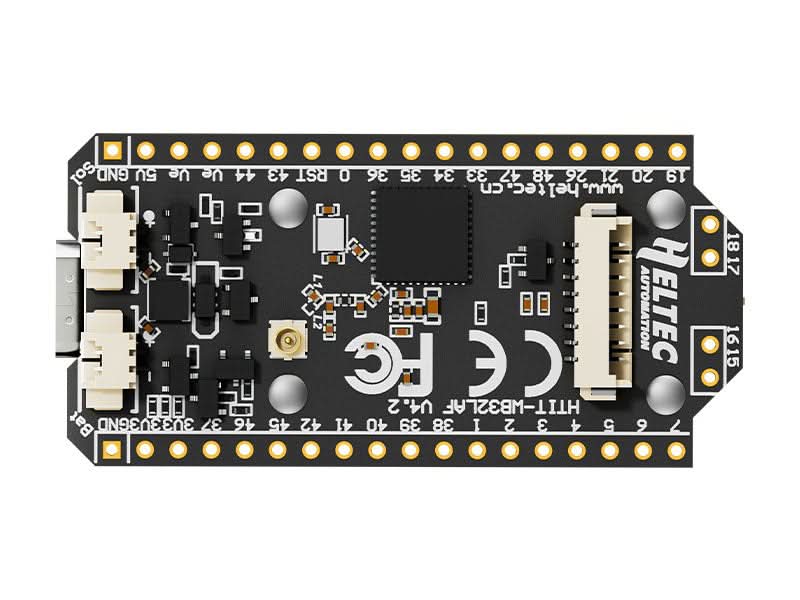

• GPS Interface: Added 1.25-8Pin interface
• Peripheral I/F: 40-pin
• Screen Connection: Soldered + B2B connector
• Pin Craft: Gold-plated
• Screen Bracket: Full protection
• LoRa Chip: SX1262
• Frequency: 863-928MHz
• Max TX Power: 28 ±1 dBm
• Max. Receiving Sensitivity: -137dBm@SF12 BW=125KHz
• Wi-Fi: 802.11 b/g/n, up to 150Mbps
• Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
• Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
• Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB Flash
• Interface: Type-C USB; 1.25*2 Pin lithium battery interface; 1.25*2 Pin Solar interface; 1.25*8 Pin interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0)
• Battery Applicable: 3.3-4.4V lithium battery
• Operating Temperature: -20°C ~ 70°C
• Dimensions: 51.7 * 25.4* 10.7mm

DOCUMENTS

• [Docs] — User Manual


SHIPPING LIST

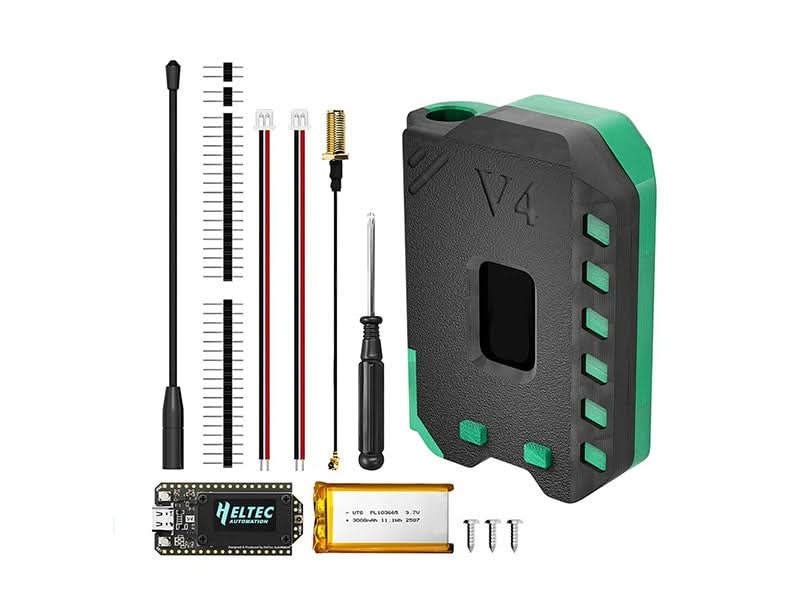

• 1x WiFi LoRa 32 (V4)
• 1x LoRa Antenna
• 2x 1.25×2 Connector (for battery & solar)
• 2x 2.54*18 Header Pin
• 2x 2.54*2 Header Pin
