3.7V Li-Po Lithium Polymer Battery 100mAh 400mAh 600mAh 700mAh 900mAh 1200mAh 1600mAh 2500mAh 2800mAh 4400mAh

Option | 100mAh 23*12*5mm

$6.00
$6.00
Sold Out
Product Details
  • Variant: 100mAh 23*12*5mm
  • SKU: BAT-REC-008
  • In Stock: 31

DESCRIPTION

The 3.7V Li-Po Lithium Polymer Battery with PH2.0 connector is a compact, rechargeable power source for Arduino, ESP32 and other IoT builds. Available from 100mAh to 4500mAh, it suits maker projects, school STEM builds and portable battery-powered devices around Singapore.

Every battery comes with a built-in protection board, which helps guard against overcharging, over-discharging, over-current and short circuits for safer, longer-lasting use.


FEATURES

  • Comes with a protection board for overcharge, over-discharge, over-current and short-circuit protection
  • Rechargeable 3.7V Lithium Polymer (Li-Po) cell, reusable for hundreds of charge cycles
  • PH2.0 connector for plug-and-play use with FireBeetle, Arduino MKR and similar boards
  • 11 capacity options from 100mAh to 4500mAh to match your size and runtime needs
  • Slim, lightweight pouch format that fits tight enclosures and wearables
  • Higher discharge rate than comparable Li-ion cells, suited to bursts of power
  • Optional TP4056 Type-C charging module available as a separate option


APPLICATIONS

  • Portable and battery-powered ESP32 / Arduino projects
  • IoT sensor nodes and remote data loggers
  • Wearables and compact handheld devices
  • Small robots, RC models and drones
  • Backup power for DIY electronics and school STEM projects


TECHNICAL DETAILS

  • Nominal Voltage: 3.7V
  • Full-Charge Voltage: 4.2V
  • Battery Type: Lithium Polymer (Li-Po)
  • Protection: Built-in protection board (overcharge, over-discharge, over-current, short circuit)
  • Connector: PH2.0
  • Capacity and Size:
    • 100mAh: 23 x 12 x 5mm
    • 400mAh: 48 x 16 x 5mm
    • 600mAh: 37 x 25 x 7mm
    • 700mAh: 60 x 16 x 7.5mm
    • 800mAh: 60 x 16 x 7.5mm
    • 1100mAh: 43 x 25 x 10mm
    • 1200mAh: 78 x 30 x 5.2mm
    • 1600mAh: 53 x 34 x 8mm

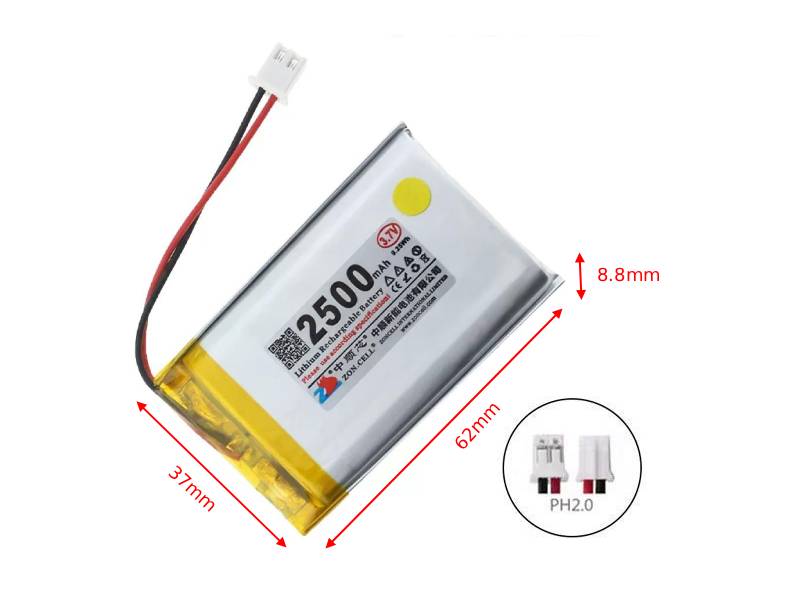

    • 2500mAh: 62 x 37 x 8.8mm
    • 2800mAh: 131 x 43 x 4mm
    • 4500mAh: 75 x 46 x 12mm


SHIPPING LIST

  • 1x 3.7V Li-Po Lithium Polymer Battery (with protection board)
