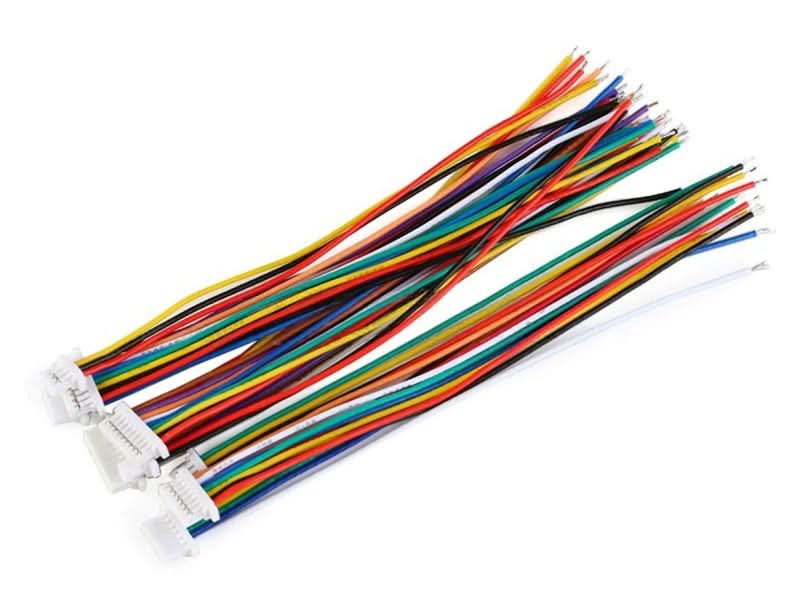

JST SH 1.0 Wire 2/3/4/5/6 Plug
JST SH 1.0 Wire 2 Plug
JST SH 1.0 Wire 3 Plug
JST SH 1.0 Wire 4 Plug
JST SH 1.0 Wire 5 Plug
JST SH 1.0 Wire 6 Plug

JST SH 1.0 Wire 2/3/4/5/6 Plug, Qwiic & STEMMA QT Compatible

Option | 2 Pin

$1.00
$1.00
Sold Out
Product Details
  • Variant: 2 Pin
  • SKU: CAB-JST-045
  • In Stock: 50

JST SH 1.0 Wire 2/3/4/5/6...

$1.00
$1.00
Sold Out

Option

2 Pin

DESCRIPTION

The JST SH 1.0mm pitch crimp-style wire plug is a compact, high-reliability wire-to-board connector designed for space-constrained electronics applications. Available in 2, 3, 4, 5, and 6-pin configurations, each assembly features a 10cm (100mm) AWG28 pre-crimped lead wire, making it ready for immediate integration without additional tooling.



Qwiic & STEMMA QT Compatible

The 4-pin variant is fully compatible with SparkFun's Qwiic and Adafruit's STEMMA QT ecosystems, both of which use the JST SH 1.0mm pitch connector as their standard interface. This makes it ideal for plug-and-play I2C connectivity between sensors, displays, microcontrollers, and breakout boards — with no soldering required. Note: compatibility is with STEMMA QT (1.0mm pitch) only, not the larger STEMMA standard which uses JST PH 2.0mm.


TECHNICAL DETAILS

  • Pitch: 1.0mm
  • Pin count: 2P / 3P / 4P / 5P / 6P
  • Wire gauge: AWG28 (stranded copper)
  • Wire length: 10cm (100mm)
  • Current rating: 1.0A (AWG28)
  • Voltage rating: 50V AC/DC
  • Operating temperature: -25°C to +85°C


SHIPPING LIST

  • 1x JST SH 1.0 Wire Plug
