JST VH 3.96mm Connector Kit

DESCRIPTION

The JST VH 3.96mm Connector Kit is a comprehensive assortment of JST VH series connectors and sockets, ideal for wiring harnesses and power interconnections in electronics projects. With a 3.96mm pitch and robust phosphor bronze contacts, this kit is well-suited for robotics, power distribution boards, and IoT systems where reliable, high-current connections are required.

Rated at 7A and 300V AC/DC, the JST VH series delivers dependable performance across a wide temperature range, making it a go-to choice for engineers and makers throughout Singapore's hardware community.

FEATURES

• 3.96mm pitch JST VH series connectors and sockets
• Includes 2P, 3P, and 4P variants — 60 pieces total
• Rated current: 7A AC/DC (AWG#18)
• Rated voltage: 300V AC/DC
• Operating temperature: -20°C to +85°C
• Phosphor bronze contacts plated with tin for reliable conductivity
• High insulation resistance: 1000MΩ min
• Withstand voltage: 1500V AC/minute

APPLICATIONS

• Robotics motor and actuator wiring harnesses
• Power distribution and battery connection boards
• Industrial automation and control panels
• IoT device and sensor power interconnects
• DIY electronics and prototyping projects

TECHNICAL DETAILS

• Series: JST VH
• Pitch: 3.96mm
• Configurations: 2P, 3P, 4P
• Rated current: 7A AC/DC (AWG#18)
• Rated voltage: 300V AC/DC
• Temperature range: -20°C to +85°C
• Applicable conductor range: AWG #22–#18
• Contact resistance: 20 MΩ max
• Insulation resistance: 1000MΩ min
• Withstand voltage: 1500V AC/minute
• Contact material: Phosphor bronze plated with tin
• Package quantity: 60 pieces (10 connectors + 10 sockets each for 2P, 3P, 4P)

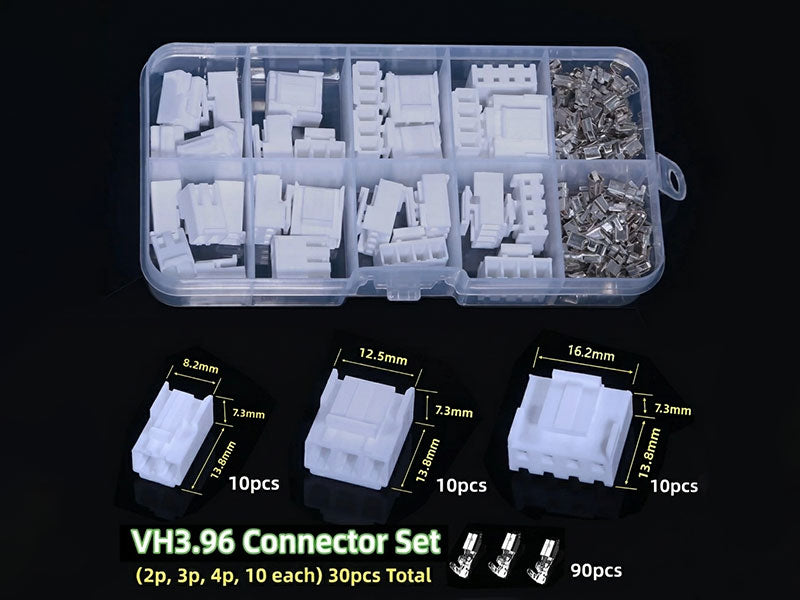

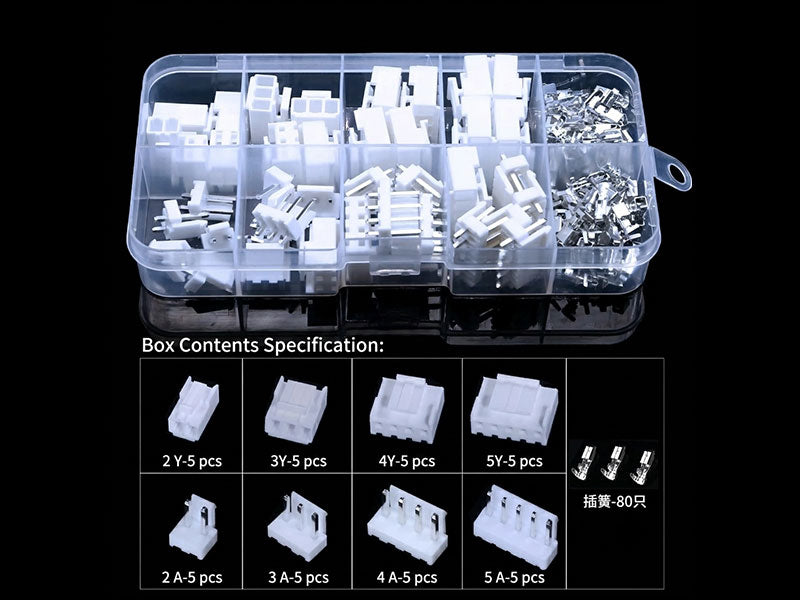

SHIPPING LIST

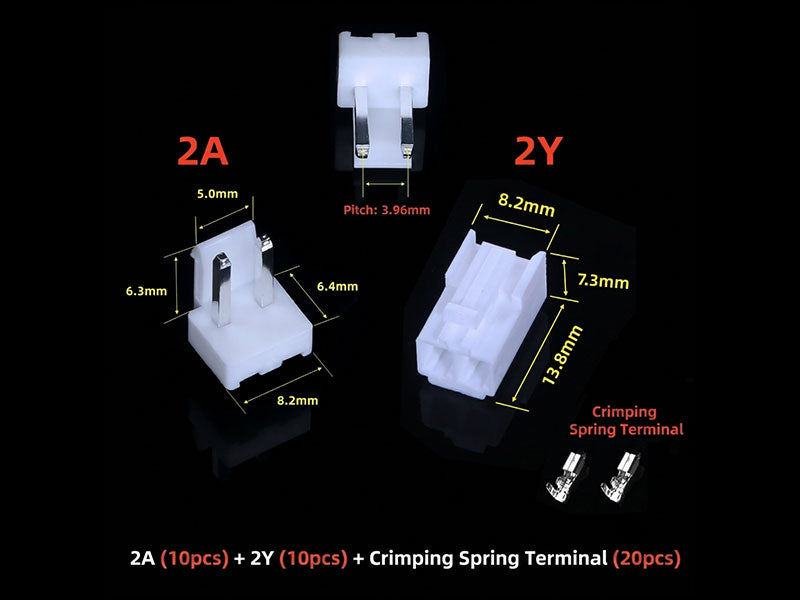

• 10x JST VH 3.96mm Connector 2P
• 10x JST VH 3.96mm Socket 2P

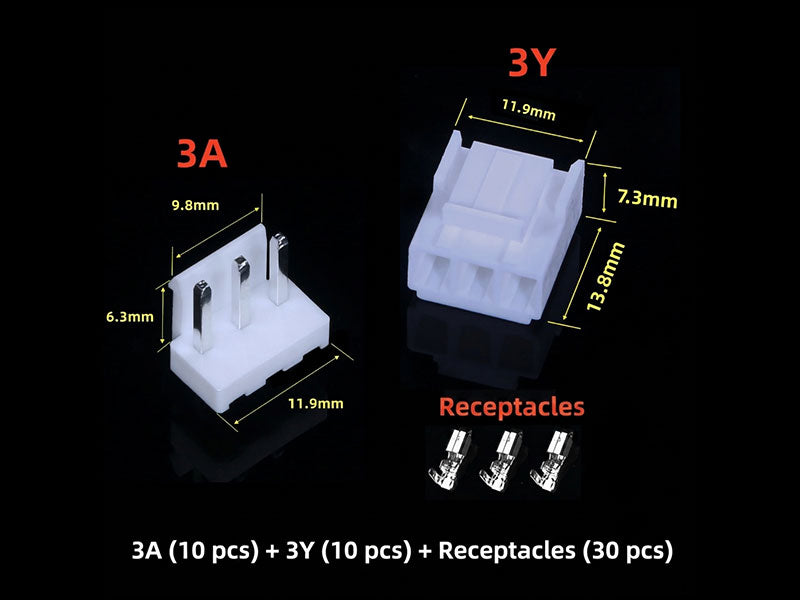

• 10x JST VH 3.96mm Connector 3P
• 10x JST VH 3.96mm Socket 3P

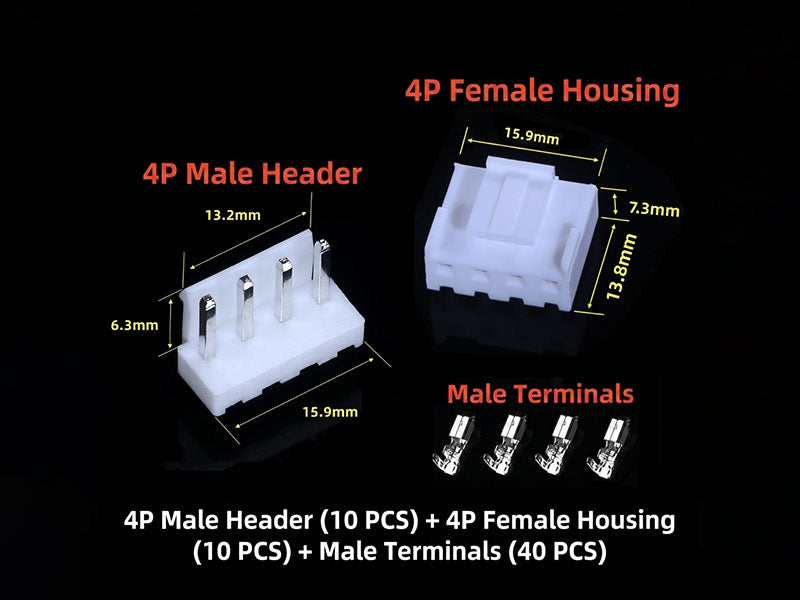

• 10x JST VH 3.96mm Connector 4P
• 10x JST VH 3.96mm Socket 4P
