DESCRIPTION

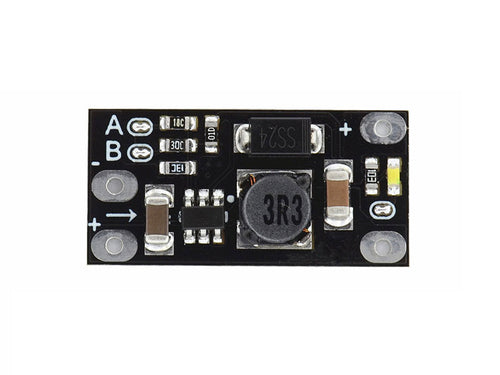

The DC-DC Step Up Boost Converter is a compact and efficient power conversion module that utilizes a step-up (boost) converter topology to convert the input voltage to either 8V, 9V, or 12V, making it compatible with a wide range of Arduino, ESP82666, and ESP32 projects providing reliable power supply for your electronic projects.
The DC-DC Step Up Boost Converter outputs a wide voltage range. This allows flexibility in selecting the power output and makes it compatible with various power supply options commonly used in Arduino, ESP8266, and ESP32 projects.
Refer to the silk screen printing table at the back of the module to select your output voltage. The default configuration is 12V output. Cut the A and B traces accordingly to set the output voltage.
TECHNICAL DETAILS
- Input Voltage: 2.5V - VOUT
- Output Voltage: 5V / 8V / 9V / 12V Selectable (Default 12V)
- Output Current:
- 3.7V Input: 5V 1A / 8V 0.5A / 9V 0.45A / 12V 0.3A
- 5V Input: 8V 0.7A / 9V 0.7A / 12V 0.5A
- Dimensions: 22mm x 11mm x 3.6mm
SHIPPING LIST
- 1x DC-DC Step Up Boost Converter 2.5 - VOUT to 5 - 12V (1A) 5W
