Fingerprint Sensor Module AS608

Only 4 left!

Regular Price
$20.00
Sale Price
$20.00
Regular Price
Sold Out
Unit Price
per

Product Details
  • SKU: SEN-FIN-004
  • In Stock: 4

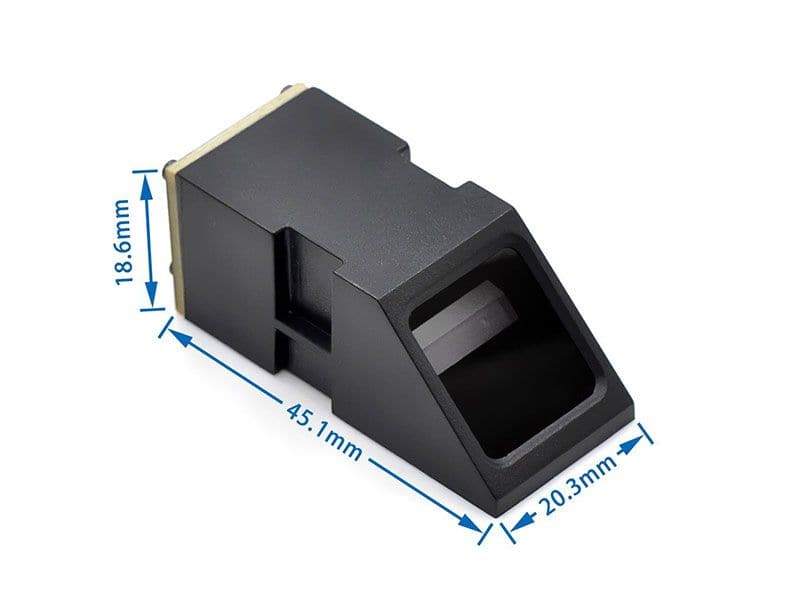

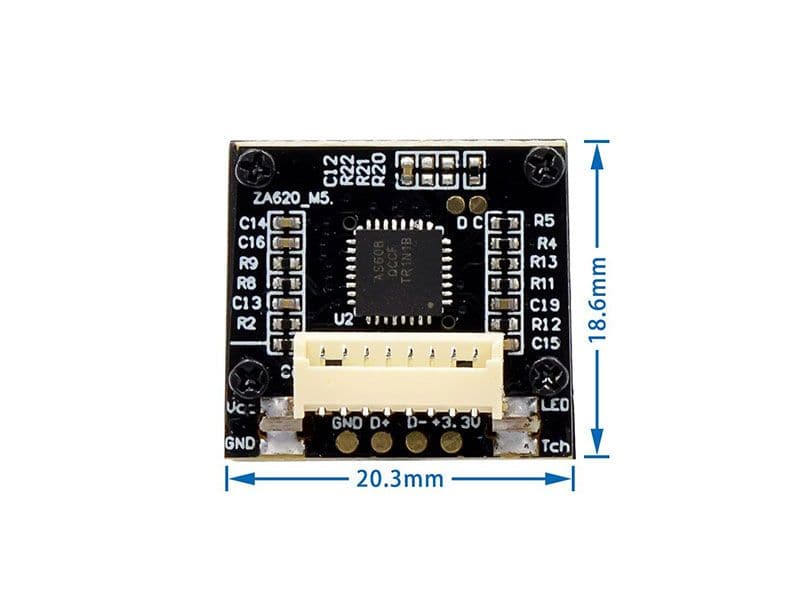

Fingerprint Sensor Module AS608

Regular Price
$20.00
Sale Price
$20.00
Regular Price
Sold Out
Unit Price
per

DESCRIPTION

Fingerprint processing: the fingerprint registration process and the fingerprint matching process (fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

When registering fingerprints, two fingerprints are required for each entry. When matching a fingerprint, you can either match with a module specified in the fingerprint sensor (fingerprint comparison mode, ie, 1:1 mode) or match with multiple modules (fingerprint search mode, ie 1:N mode, the module gives the matching result pass/fail).


TECHNICAL DETAILS

  • Operating Voltage: 3.3V
  • Operating Current: < 60mA
  • Peak Current: < 70mA
  • Resolution: 500dpi
  • Fingerprint Image Entry Time: < 1.0 seconds
  • Signature File: 256 bytes
  • Template File: 512 bytes
  • Storage Capacity: 162 templates
  • Communication Interface: UART
  • Baud Rate: 9600, 19200, 28800, 38400, 57600(default)
  • Operating Temperature: -20°C to +50°C
  • Backlight Colour: Blue
  • Window Area: 15.3mm x 18.2mm


SHIPPING LIST

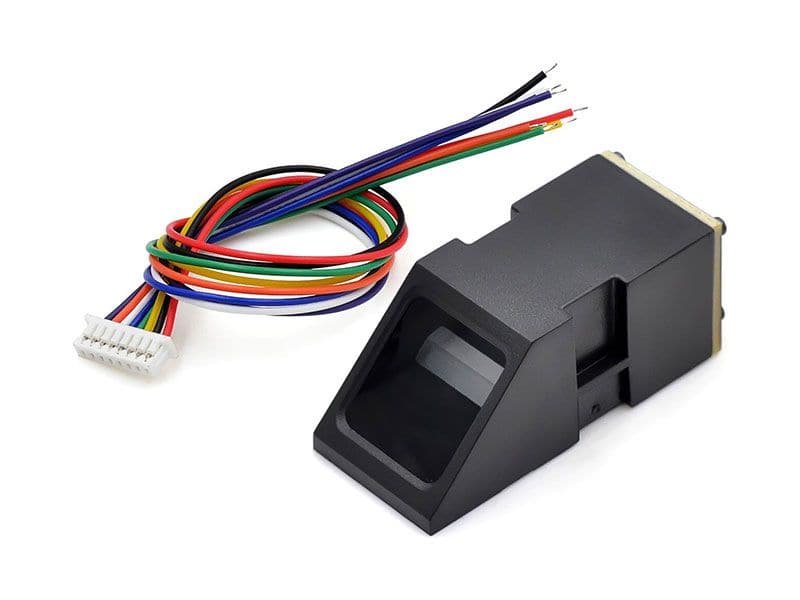

  • 1x Fingerprint Sensor Module AS608
  • 1x 6-Pin Connector
>
