DESCRIPTION

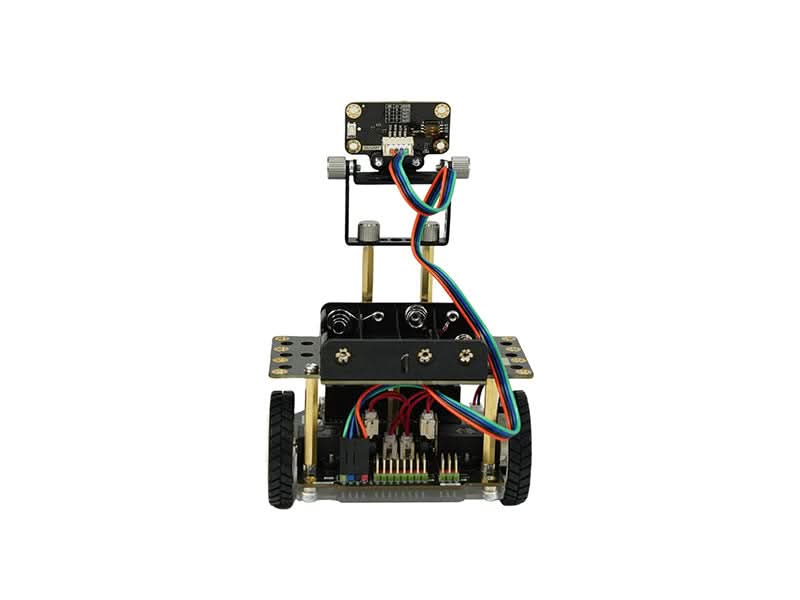

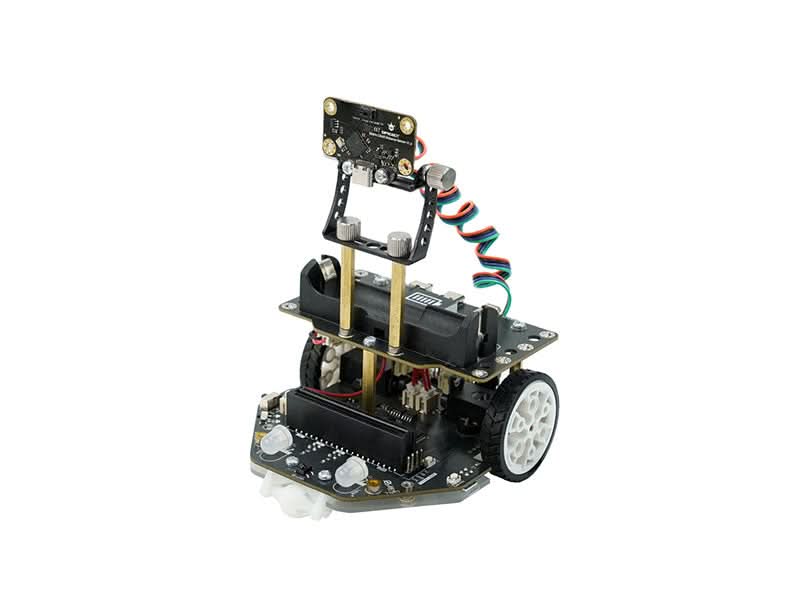

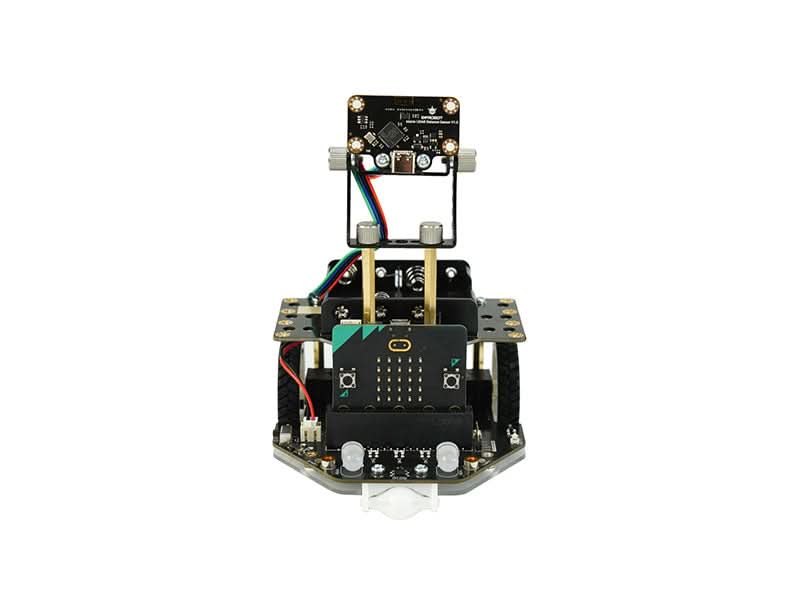

The Maqueen Plus V3 is an advanced educational robot engineered to revolutionize STEM robot education and competitions for primary and secondary school students. The Maqueen Plus V3 operates by integrating a sophisticated suite of sensors and control mechanisms. It leverages a powerful matrix laser ranging sensor for environmental perception, high-precision motor encoders with PID control for accurate movement, and built-in algorithms for complex tasks such as line-tracking and intersection recognition. These capabilities allow for more dynamic and intricate applications in educational settings.
Precision Navigation with Matrix Laser Ranging

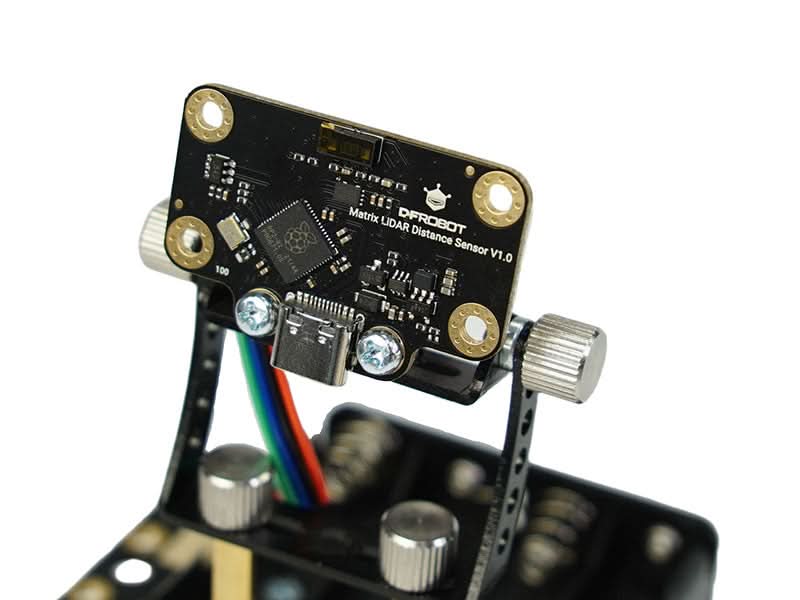

The Maqueen Plus V3 features a cutting-edge matrix laser ranging sensor, a significant leap from standard ultrasonic sensors. This provides superior accuracy (e.g., ±11mm for white targets at 20-200mm) and rapid response (up to 60Hz in 4x4 mode) over a 60-degree field of view. This enables the robot to not only detect distances but also pinpoint obstacle positions, facilitating intelligent route planning and sophisticated obstacle avoidance for advanced autonomous movement.
Simplified Advanced Tasks with Built-in Algorithms
Mastering line-tracking and intersection navigation is streamlined with algorithms integrated directly into the robot's core. The onboard line-tracking significantly lowers the entry barrier to this fundamental skill, allowing students to focus on higher-level strategies. Furthermore, the innovative built-in intersection recognition identifies various junction types (crossroads, T-junctions, etc.) in real time, enabling the creation of complex map-based challenges and enriching competition diversity. These functions operate independently, freeing the main controller for other tasks.
Figure: Maqueen Plus V3 Built-in Line-tracking Algorithms
Figure: Maqueen Plus V3 Built-in Intersection Recognition Algorithms
Accurate Movement with Motor Encoders & PID Control
Unlike many educational robots lacking precise motion capabilities, the Maqueen Plus V3 incorporates high-precision motor encoders with PID (Proportional-Integral-Derivative) control. This allows for exact control over travel distance and steering angles without cumbersome trial-and-error debugging. Expect reliable and repeatable performance in tasks demanding accurate navigation, a crucial advantage in both educational settings and competitive arenas.
Figure: Motor Encoders & PID Control makes Maqueen Plus V3 More Accurate
Enhanced Light Interaction
Enhanced interaction comes from dual light intensity sensors for applications like light-seeking or automatic headlights, complemented by vibrant, programmable RGB headlights and ambient lights that spark creativity and make learning more engaging.
Figure: Maqueen Plus with Dual Light Intensity Sensors
Detachable Metal Motor Components
The Maqueen Plus V3 is equipped with finely parameter-matched metal motors, selected after rigorous testing and verification of over 30 motor samples to ensure optimal performance, reliability, and speed, resulting in smooth rotation without stalling. The motors are holistically protected to minimize the risk of debris entering and damaging the gearbox. Recognizing the frequent use and potential wear (e.g., brush wear, damage from accidental drops or squeezing) in advanced teaching and competitions, the robot features a detachable motor design. This allows for quick replacement of damaged motors, preventing disruptions to educational activities and competitions.
Additionally, a dedicated voltage-stabilizing chip for the motors ensures consistent running speed, unaffected by battery voltage decline, allowing programs to run reliably without parameter modifications.
APPLICATIONS
- STEM Robot Education
- Robotic Competition
TECHNICAL DETAILS
Power Supply
- Battery Version: 3.5V - 6V (Requires 4x AA batteries - 1.5V dry cells or 1.2V Ni-MH rechargeable), or 18650 battery
- Protection: Battery reverse connection protection supported
Onboard Sensors & Perception
- Line-Tracking System:
- Sensors: 5
- Calibration: Dedicated button
- Output: Digital / Analog
- Built-in Intersection Recognition: 4 types (Crossroad, T-shaped, Right turn & Straight, Left turn & Straight)
- Built-in Algorithm Speed: 5 adjustable levels
- Matrix Laser Ranging Sensor:
- Interface: I2C / UART / USB (PH2.0-4P & TYPE-C)
- Matrix Resolution: 8x8 (64 points)
- Modes: Matrix measurement / Intelligent obstacle avoidance
- I2C Address: 4 selectable (0x30 - 0x33)
- Ranging Update Rate: 15Hz - 60Hz
- Ranging Range: 20mm - 4000mm
- Accuracy (20-200mm): ±11mm (white targets), ±12mm (gray targets)
- Accuracy (200-4000mm): ±5% (white targets), ±6% (gray targets)
- Detection Angle: 60° H x 60° V (90° Diagonal)
- Laser Safety: Class 1 compliant
- Firmware Update: Supported via USB
- Light Sensors:
- Quantity: 2
- Data Range: 0 - 1023
- Infrared Receiver: 1
Motors & Motion Control
- Motors: 2x N20 Metal Motors:
- Interface: PH2.0 - 2P
- Power Supply: Independent 5V regulated
- Mounting: Screw-fixed, detachable
- Encoders & PID Control:
- Encoders: 2 (Magnetic induction, 4-line resolution)
- PID Control: For precise distance and angle control
- Speed Measurement Unit: Centimeters per minute (Note: Consider "cm/s" for more conventional robotics speed representation)
Lighting & Audio Indication:
- RGB LEDs:
- Ambient Lights: 4x WS2812 (Full R255 G255 B255 color spectrum)
- Car Headlights: 2x Programmable RGB (Red, Green, Yellow, Blue, Purple, Cyan, White)
- Buzzer: 1
Mechanical, Expansion & Other Features:
- Mounting & Adjustment:
- Metal Bracket Parts: 2
- Bracket Adjustment: 1-axis, 270° range (M3 thumb screws)
- PCB Threaded Interfaces: 2
- Expansion: 14x Extended GPIOs
- Protection: Bottom acrylic protection plate
- Firmware Upgrade: Dedicated interface and button
DOCUMENTS

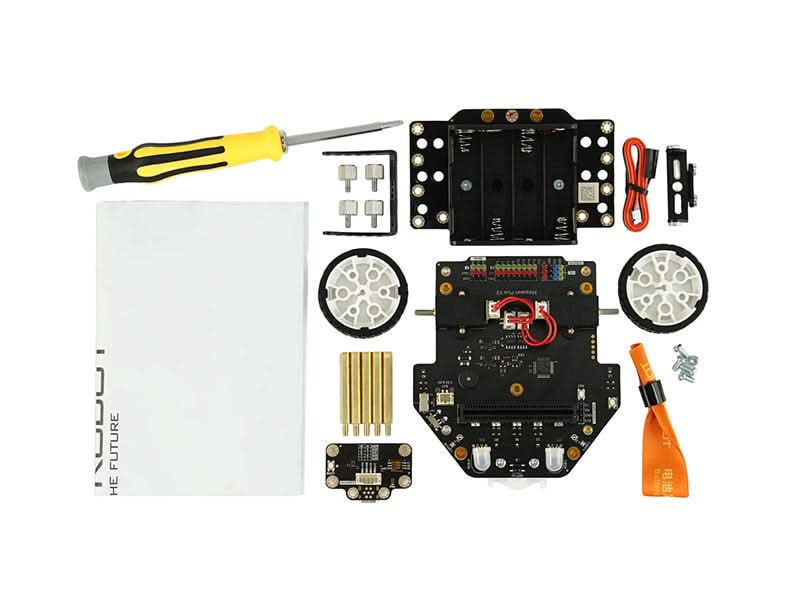

SHIPPING LIST

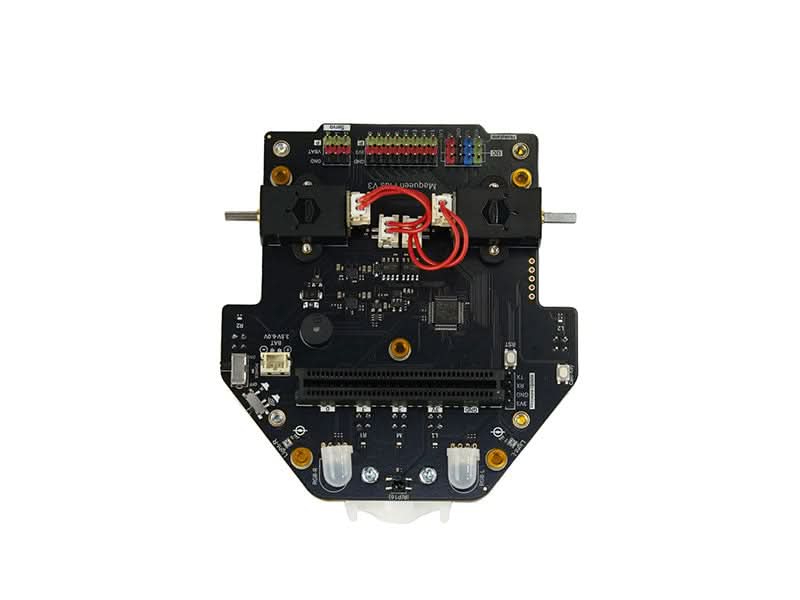

- 1x Maqueen Plus V3 Baseboard x1
- 2x Metal Motor with Encoder and Connection Cable (already installed on the baseboard)
- 1x AA Battery Board
- 1x Matrix Laser Ranging Sensor
- 1x PH2.0 - 4P Sensor Connection Cable
- 2x Wheels
- 1x Line-Tracking Map
- 1x Screwdriver
- 1x Metal Support Frame
- 1x Metal Mounting Bracket
- 5x 35mm Mounting Copper Pillars
- 5x M3 Mounting Screws
- 4x M3 Thumb Screws
