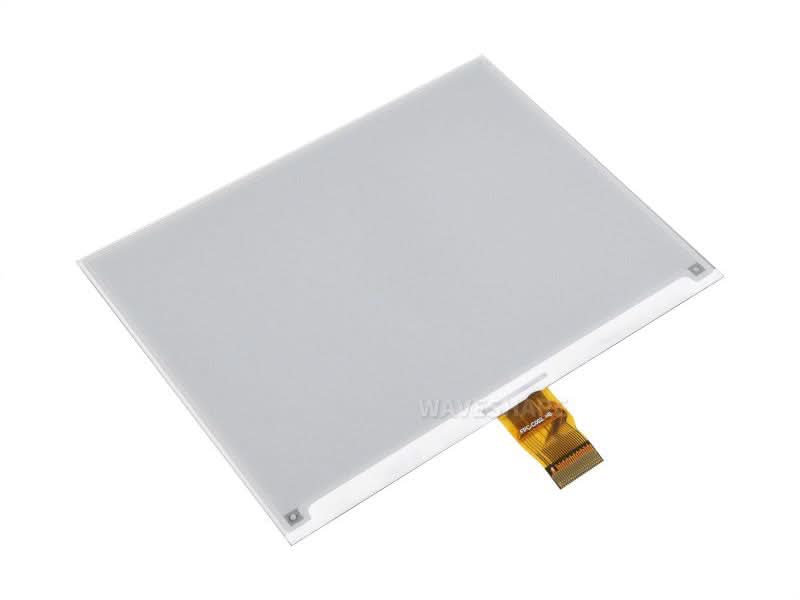

DESCRIPTION
Low power consumption, wide viewing angle, paper-like displaying without electricity. Ideal for price tags, shelf labels, industrial instruments.
| Size | Resolution | Viewing Angle | Display Color | Grey Scale |
 |
 |
 |
 |
 |
| 5.83" | 648×480 | 170° | Black / White | 2 |
| Communication | Display Panel | Experience | Environment | Display Type |
 |
 |
 |
 |
 |
| SPI | E-paper | Paper-like | Ambient Light Required | Passively Reflective |
FEATURES AT A GLANCE
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
ADVANTAGES OF E-INK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
STANDARD RASPBERRY PI 40 PIN GPIO HEADER

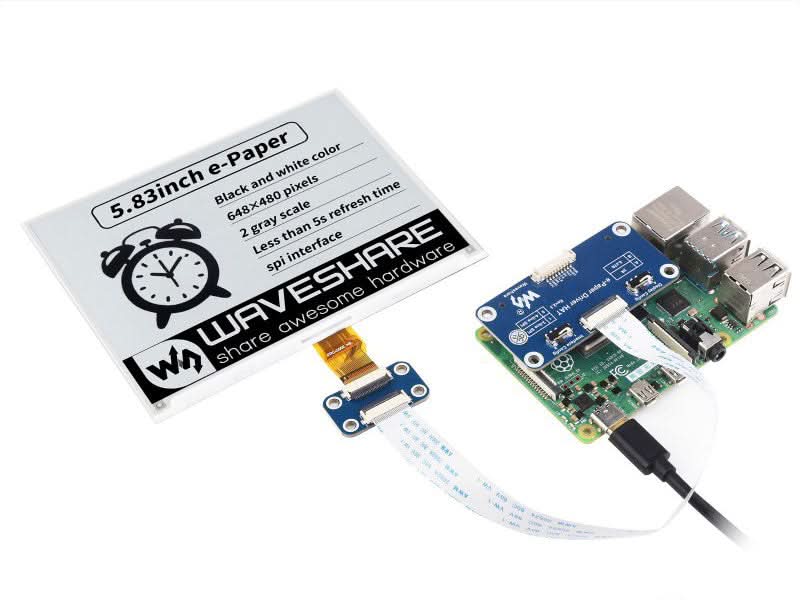

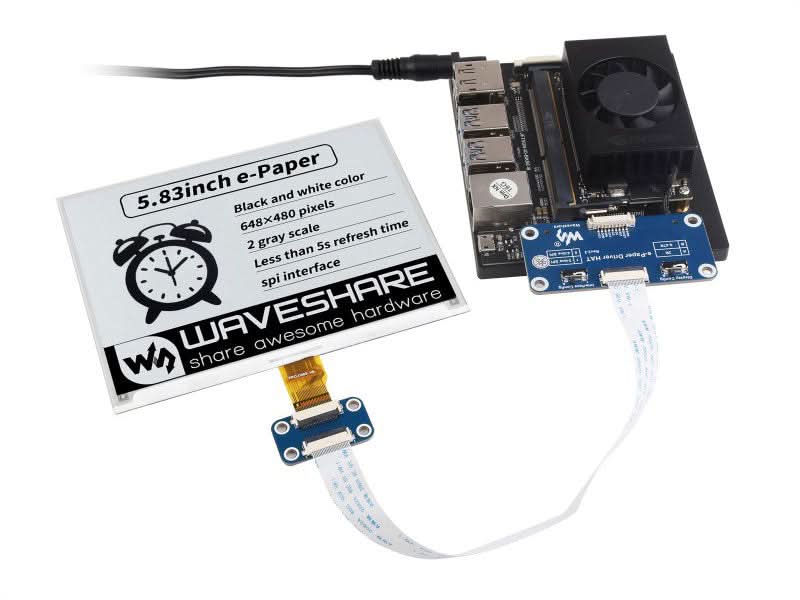

Compatible with Raspberry Pi series boards, Jetson Nano
ONBOARD SPI CONTROL INTERFACE
For use with other controller boards like Raspberry Pi/Jetson Nano/STM32/Arduino
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output
PWR Power on/off control
APPLICATION EXAMPLES
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags

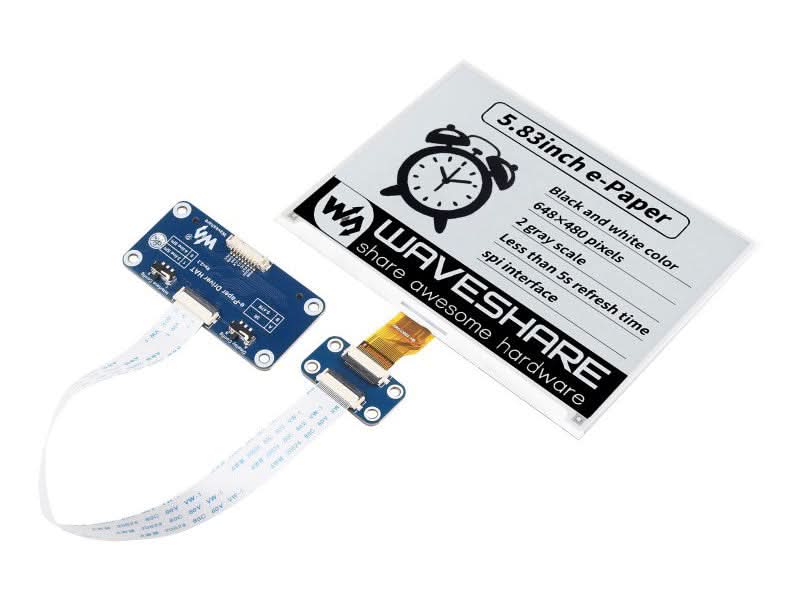

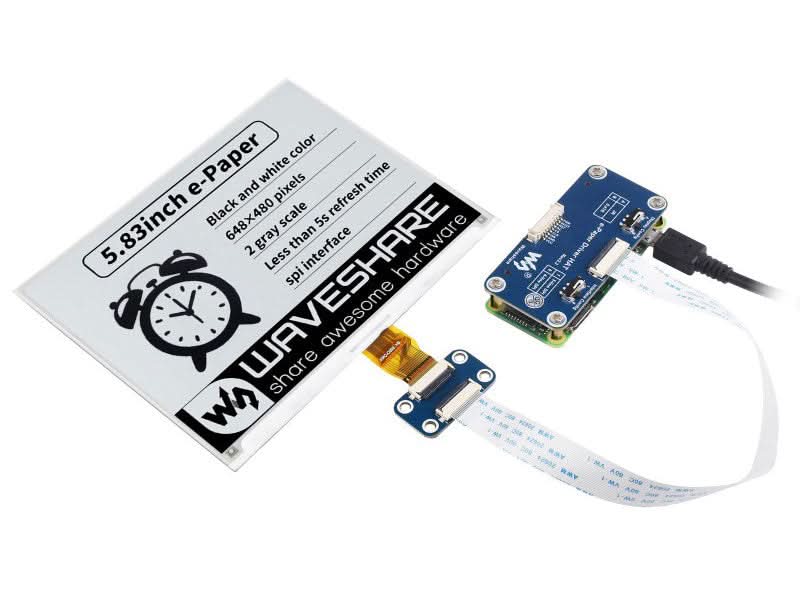

PRODUCT SHOW
OUTLINE DIMENSIONS
DOCUMENTS
- Wiki: 5.83inch_e-Paper_HAT
TECHNICAL DESCRIPTION
- Operating Voltage: 3.3V/5V
- Display Color: black, white
- Interface: 3-wire SPI, 4-wire SPI
- Grey Scale: 2
- Outline Dimensions: 125.40 × 99.50mm
- Full Refresh Time: 5s
- Display Size: 119.232 × 88.320mm
- Refresh Power: 26.4mW(typ.)
- Dot Pitch: 0.184 × 0.184mm
- Standby Current: <0.01uA (almost none)
- Resolution: 648 × 480 pixels
- Viewing Angle: >170°
SHIPPING LIST
- 1x 5.83inch e-Paper
- 1x e-Paper Driver HAT
- 1x RPi screws pack (2pcs)
- 1x GH1.25 9PIN cable ~20cm
