DESCRIPTION

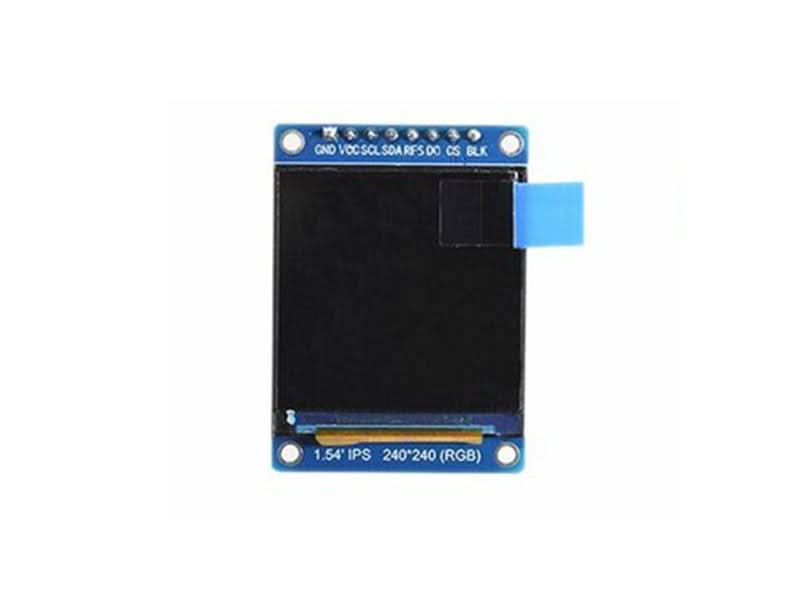

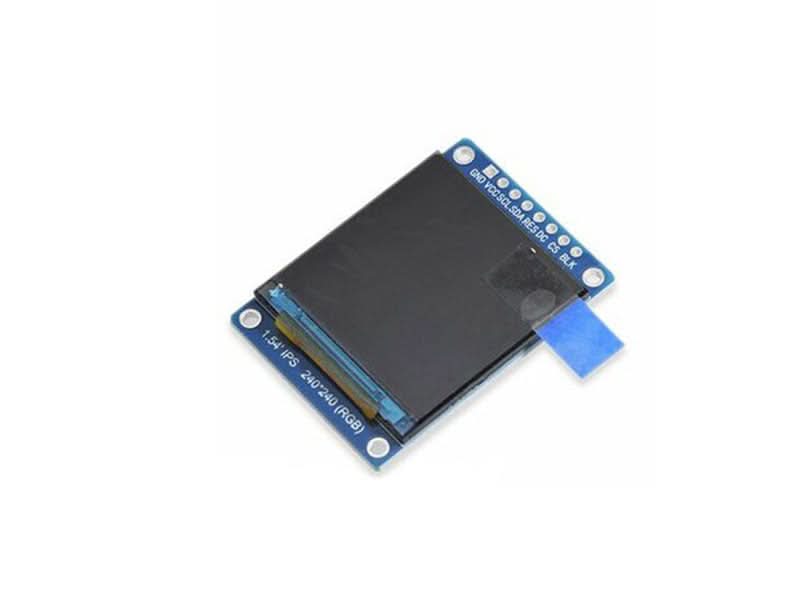

The LCD TFT 1.54" ST7789 is a compact and versatile display module that is designed to be easily integrated with Arduino and ESP32 microcontrollers. It features a 1.54-inch color TFT LCD screen with a resolution of 240x240 pixels. The display utilizes the ST7789 controller chip, which provides efficient and fast communication between the microcontroller and the display.
The ST7789 controller supports a wide range of display functions, including pixel-level addressing, display rotation, and scrolling. It also includes built-in memory that allows for smooth animation and graphical effects. The display supports 65K colors, offering vibrant and high-quality visuals.
If you are controlling with an Arduino, make sure to use a level shifter to interface with the TFT signals as the logic level is 3.3V.
TECHNICAL DETAILS
- Operating Voltage: 3.3V
- Logic Level: 3.3V
- Display: HD IPS Colour Screen
- Resolution: 240 x 240
- Chipset: ST7789
- Interface: SPI
- Display Area: 27.72mm x 27.72mm
- Dot Pitch: 0.1155mm x 0.1155mm
- Dimensions: 32mm x 43.72mm
- Viewing Direction: All View
- Operating Temperature: -20°C to +70°C
SHIPPING LIST
- 1x LCD TFT 1.54" ST7789
