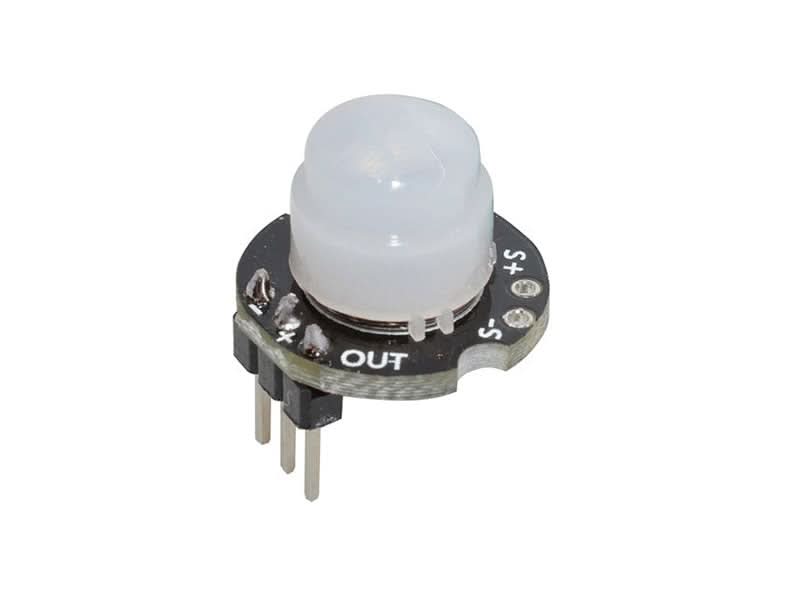

DESCRIPTION
This PIR / Motion Sensor can be used to detect movement or motion within the range of 5m. After every detection, there is a blocking time of 2s. During this period, the sensor will not respond to any movement or motion. The sensor has an operating voltage of 3.3 - 15V, and only consumes 20uA when in "sleep" mode, which is perfect for battery operating devices.
TECHNICAL DETAILS
- Input Voltage: 3.3 - 15V
- Quiescent Current: 20uA

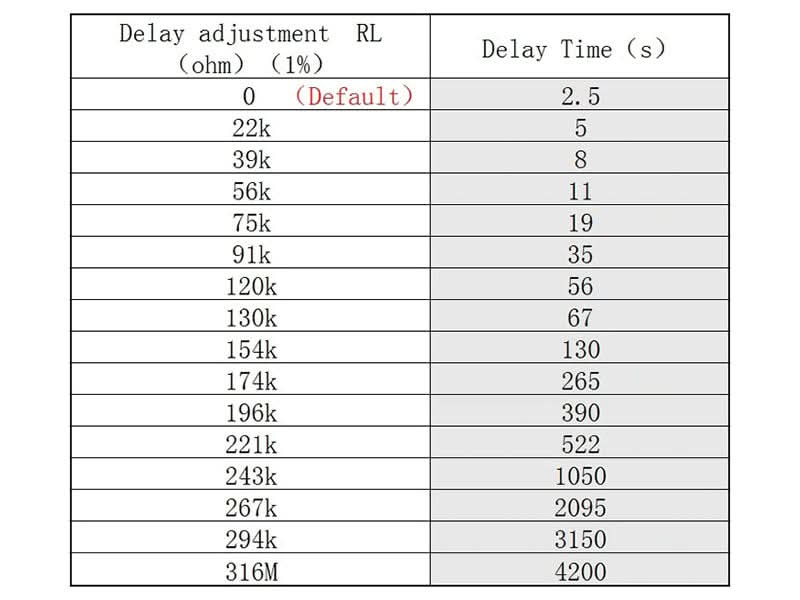

- Delay Time: 2.5s
- Blockade Time: 2s
- Trigger: High
- Detection Angle: 100°
- Detection Distance: Up to 5m
- Operating Temperature: -15°C to 70°C
SHIPPING LIST
- 1x PIR Motion Sensor SR602
>
