DESCRIPTION

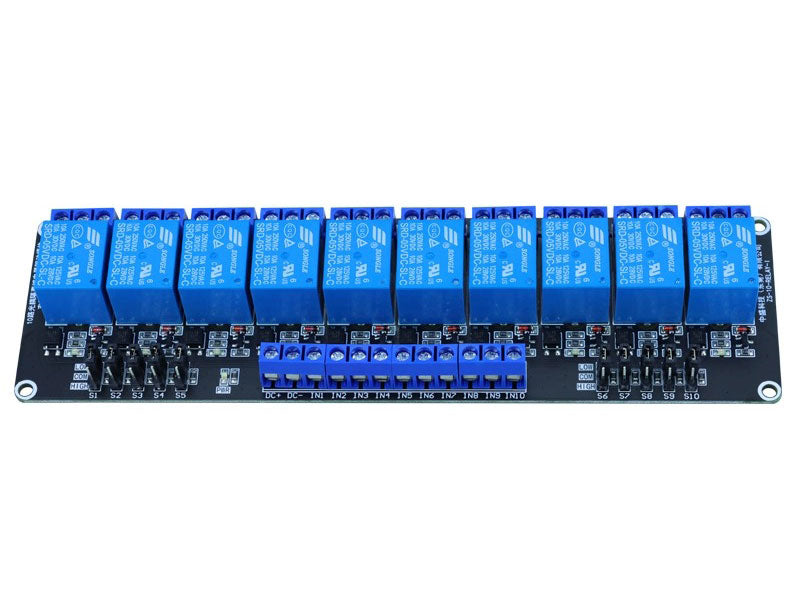

This relay module can be signal triggered low or high, selectable from the jumper pin on-board. It can be controlled directly by the microcontroller from a 3.3V signal, 5V signal, or a 12V signal depending on which model you have. The inputs are opto-isolated to protect any delicate control circuitry. An LED indicator will turn on together with the relay when triggered.
The relay module is able to control various appliances and other equipment with a large current. Relay output maximum contact is AC 250V 10A or DC 30V 10A. Each channel consumes about 15 - 20mA current when active.
3.3V microcontrollers such as Raspberry Pi, ESP8266, ESP32, 3.3V Arduino boards can directly use the 3.3V relay without a logic level shifter.
TECHNICAL DETAILS
- Input Voltage: 3.3V / 5V / 12V / 24V
- Input Signal: 3.3V / 5V / 12V / 24V
- Relay Rating: DC 30V / AC 250V 10A
- Current Rating: 15 - 20mA per Channel
SHIPPING LIST
- 1x Relay Module 8 Channel
>
