Solenoid 12V 20N 40N 65N

Option | 20N 10mm Stroke

Only 8 left!

Regular Price
$13.20
Sale Price
$13.20
Regular Price
Sold Out
Unit Price
per

Product Details
  • Variant: 20N 10mm Stroke
  • SKU: COM-SOL-002
  • In Stock: 8

Solenoid 12V 20N 40N 65N

Regular Price
$13.20
Sale Price
$13.20
Regular Price
Sold Out
Unit Price
per

Option

20N 10mm Stroke

DESCRIPTION

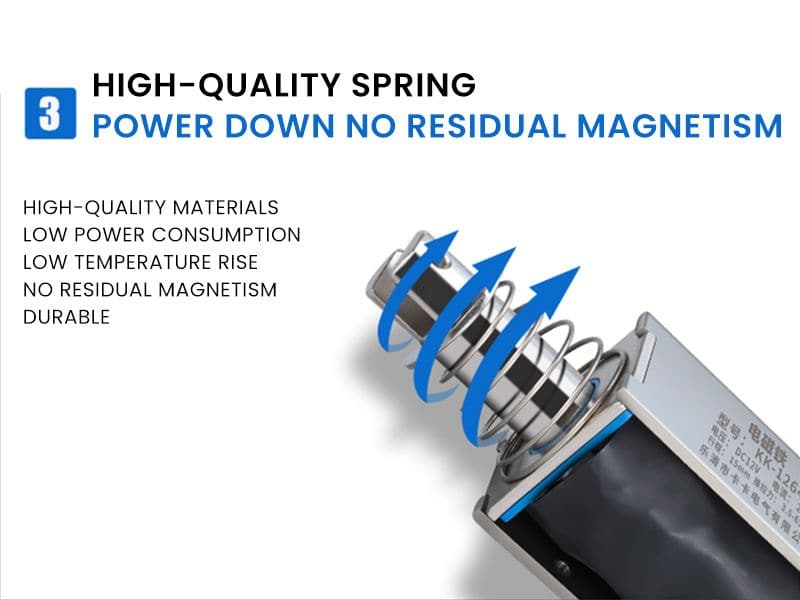

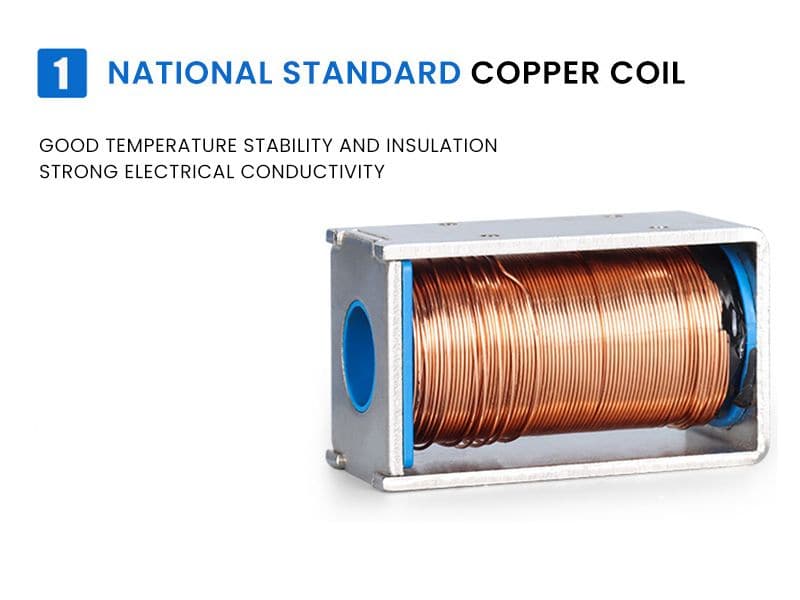

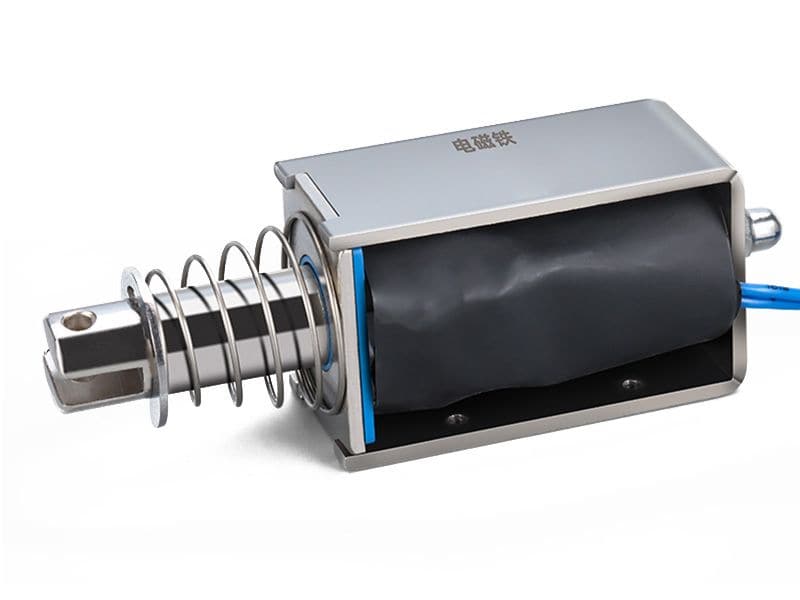

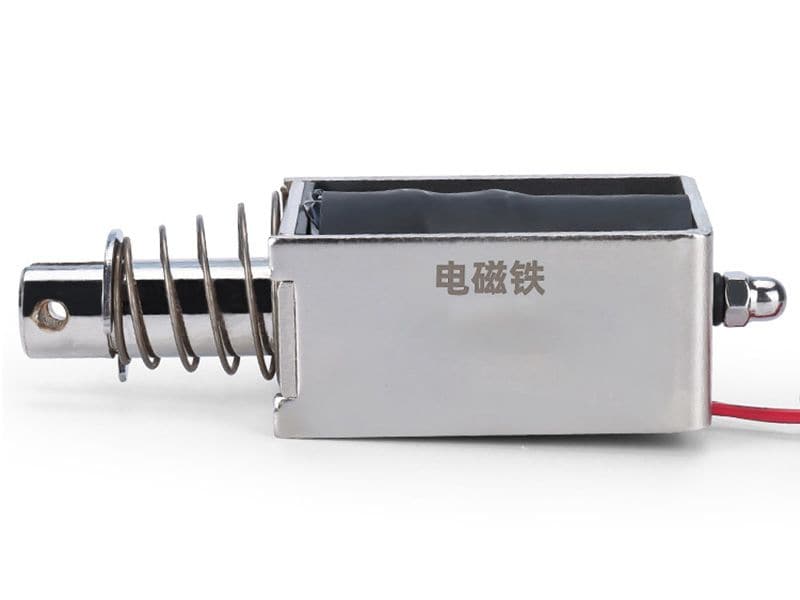

The solenoid is essentially an electromagnet with a metal slug in the center. When voltage is supplied, the slug will push forward. Attached is a spring on the end so the slug can return to its original position when power is removed. There are mounting holes on the body so you can secure the solenoid to your structure.

Please note that when the solenoid is activated for long periods of time it will become very hot, and can even burn when touching. The correct way to use a solenoid is to activate only when required, not for prolonged periods of time.


TECHNICAL DETAILS

  • Input Voltage: 12V
  • Operating Current: 2A

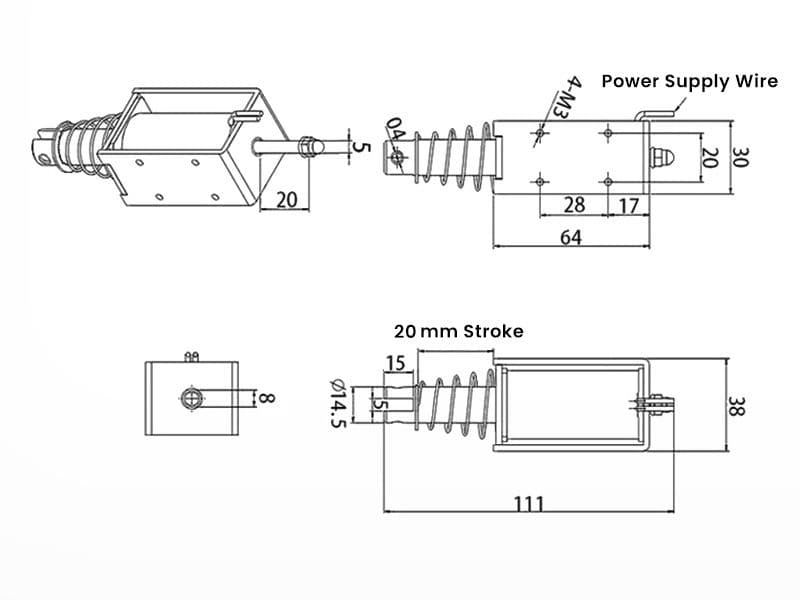

  • Stroke Movement: 20mm
  • Thrust: 3.5 - 65N


SHIPPING LIST

  • 1x Solenoid 12V
>
