DESCRIPTION

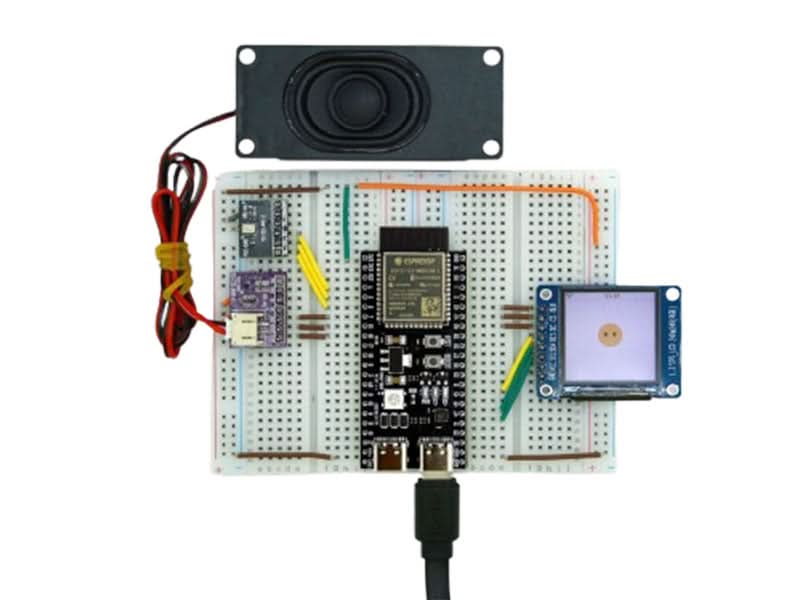

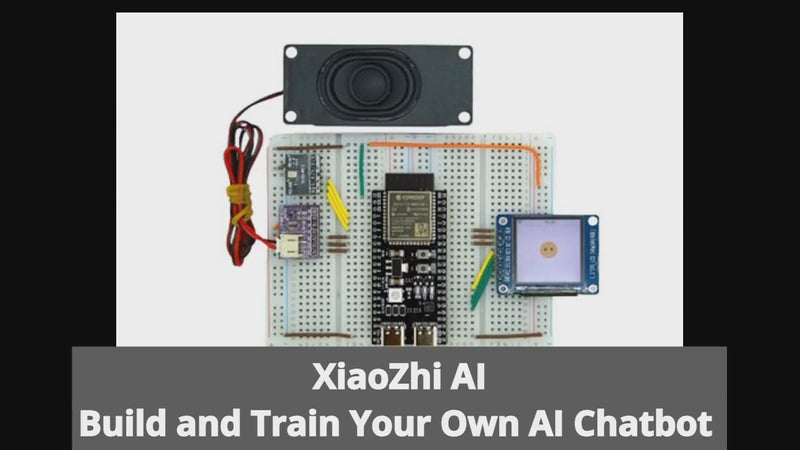

The Xiaozhi AI Kit with ESP32-S3 is a powerful, feature-rich development board designed for AI and IoT applications. Built around the ESP32-S3 chip, this kit delivers high-performance edge AI computing with dual-core processing, Wi-Fi & Bluetooth 5 (BLE) connectivity, and extensive GPIO support—perfect for machine learning (ML), computer vision, voice recognition, and smart device prototyping.
This is an open-source ESP32 project, released under the MIT license, allowing anyone to use it for free, including for commercial purposes.
As a voice interaction entry, the XiaoZhi AI chatbot leverages the AI capabilities of large models like Qwen / DeepSeek, and achieves multi-terminal control via the MCP protocol.
For beginners, it is recommended to use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Personal users can register an account to use the Qwen real-time model for free.
👉 Beginner's Firmware Flashing Guide
FEATURES
- Wi-Fi / ML307 Cat.1 4G
- Offline voice wake-up ESP-SR
- Supports two communication protocols (Websocket or MQTT+UDP)
- Uses OPUS audio codec
- Voice interaction based on streaming ASR + LLM + TTS architecture
- Speaker recognition, identifies the current speaker 3D Speaker
- OLED / LCD display, supports emoji display
- Battery display and power management
- Multi-language support (Chinese, English, Japanese)
- Supports ESP32-C3, ESP32-S3, ESP32-P4 chip platforms
- Device-side MCP for device control (Speaker, LED, Servo, GPIO, etc.)
- Cloud-side MCP to extend large model capabilities (smart home control, PC desktop operation, knowledge search, email, etc.)

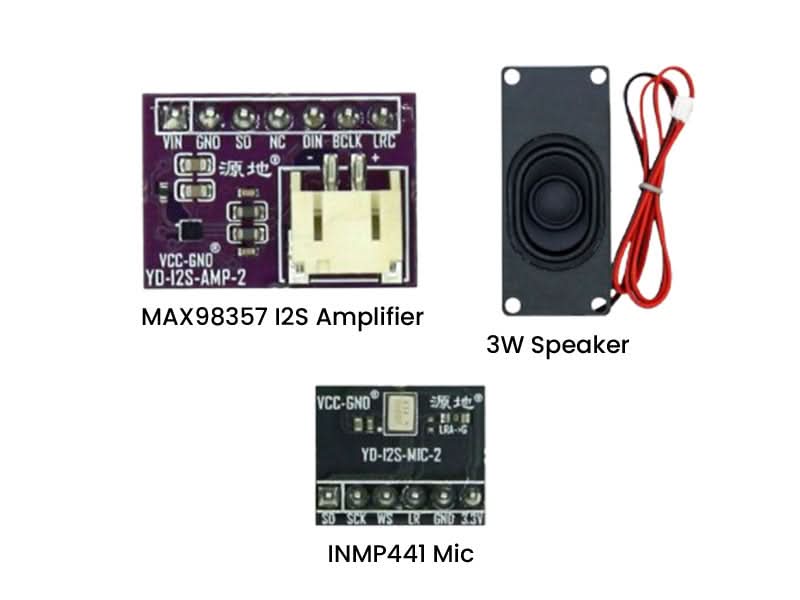

TECHNICAL DETAILS
- Microphone: INMP441
- Audio Amplifier: MAX98357
- Speaker: 3W
- TFT LCD: 1.3" ST7789
- MCU: ESP32-S3-16MB
DOCUMENTS

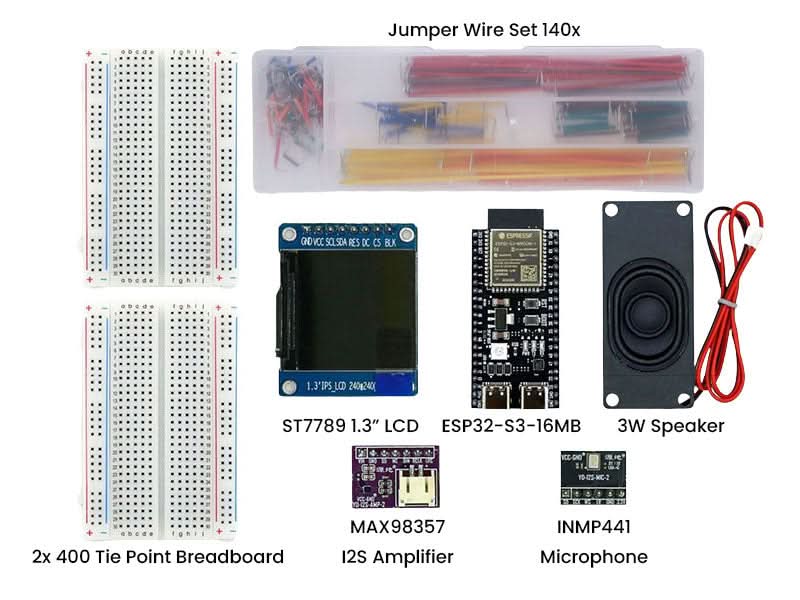

SHIPPING LIST
- 1x WiFi Bluetooth Module ESP32-S3 16MB Flash 2MB PSRAM
- 1x LCD TFT 1.3" ST7789
- 1x INMP441 Omnidirectional Microphone
- 1x Audio Amplifier I2S MAX98357 Class D
- 1x Speaker 8 ohm 3W with JST PH2.0
- 1x Jumper Wire Set 140x
- 2x Solderless Breadboard 400 Tie Point
