Flame Sensor

Only 24 left!

Regular Price
$5.00
Sale Price
$5.00
Regular Price
Sold Out
Unit Price
per

Product Details
  • SKU: SEN-TEM-032
  • In Stock: 24

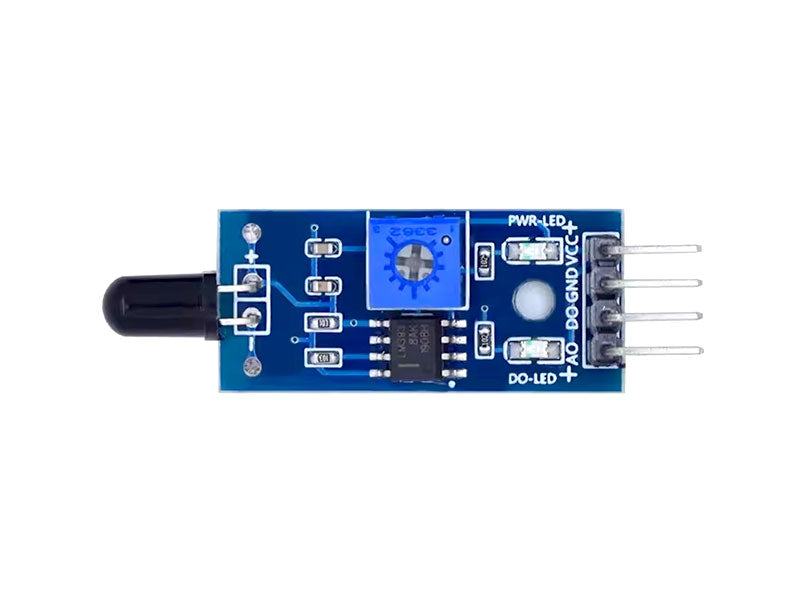

Flame Sensor

Regular Price
$5.00
Sale Price
$5.00
Regular Price
Sold Out
Unit Price
per

DESCRIPTION

The Flame Sensor can detect up to 80cm away with flame or light sources within the wavelength of 760nm to 1100nm. The larger the flame, the further the detection distance will be. Sensitivity can be adjusted with the on-board potentiometer. The output signal can drive up to 15mA load.


TECHNICAL DETAILS

  • Operating Voltage: 3.3V - 5V
  • Output: Digital and Analog
  • Detection Angle: 60°C
  • Dimensions: 27mm x 14mm
  • Fixed Hole Diameter: 3mm


SHIPPING LIST

  • 1x Flame Sensor
>
