DESCRIPTION
Upgrade your automation project with this heavy-duty 12V DC linear actuator, available in four precise stroke lengths — 50mm, 100mm, 150mm, and 200mm — to suit a wide range of industrial, commercial, and home automation applications across Singapore.
Driven by a permanent magnet DC motor with a precision screw mechanism, this linear actuator converts rotary motion into smooth, controlled linear movement. The telescopic rod extends and retracts without rotation, ensuring consistent positioning accuracy for every application.
The built-in limit switches at both ends prevent overextension, while the self-locking function allows the rod to hold its position at any point along the stroke — even when power is cut. Reversing motor polarity instantly changes direction, giving you full bidirectional control.
The robust aluminium alloy housing provides a high strength-to-weight ratio, while the IP54 rating protects against dust ingress and water splashing — making it suitable for both indoor installations and semi-exposed environments common in Singapore's humid tropical climate.
TECHNICAL DETAILS
- Rated Power: 10W
- Rated Voltage: 12V
- No-Load Current: 0.4A
- Material: Aluminium Alloy + Plastic
- Speed: 15mm/s

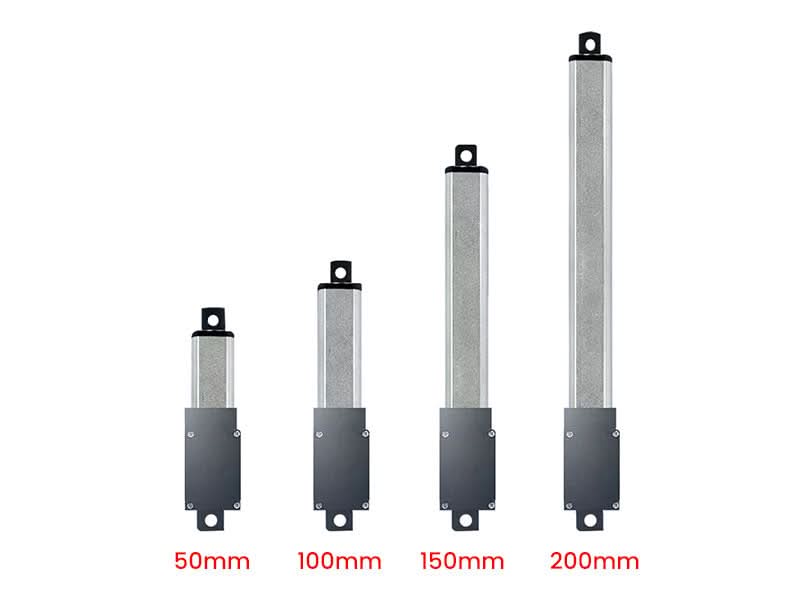

- Travel Range: 50mm / 100mm / 150mm / 200mm
- Protection Rating: IP54
- Operating Temperature: -26°C to +85°C
