Arduino Mega 2560 Original
Arduino Mega 2560 Original
Arduino Mega 2560 Original
Arduino Mega 2560 Original

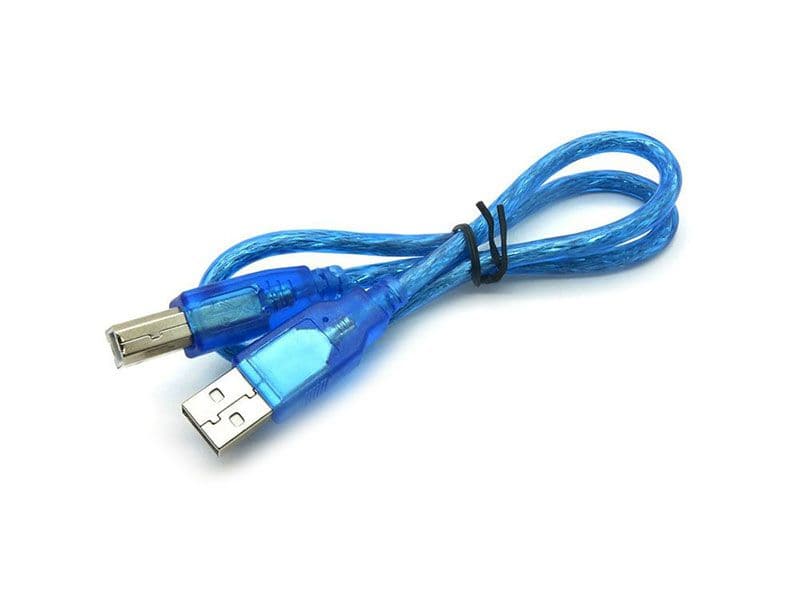

USB A-B Cable 50cm

Arduino Mega 2560 Original

Option | Arduino Mega 2560

$68.80
$68.80
Sold Out
Product Details
  • Variant: Arduino Mega 2560
  • SKU: A000067
  • In Stock: 8

Arduino Mega 2560 Original

$68.80
$68.80
Sold Out

Option

Arduino Mega 2560

DESCRIPTION

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.


TECHNICAL DETAILS

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
LED_BUILTIN 13
Length 101.52 mm
Width 53.3 mm
Weight 37 g


PINOUT DIAGRAM


SHIPPING LIST

  • 1x Arduino Mega 2560 Original
