Power Supply 5V 40A / 12V 17A / 24V 8.8A

Option | 5V 40A

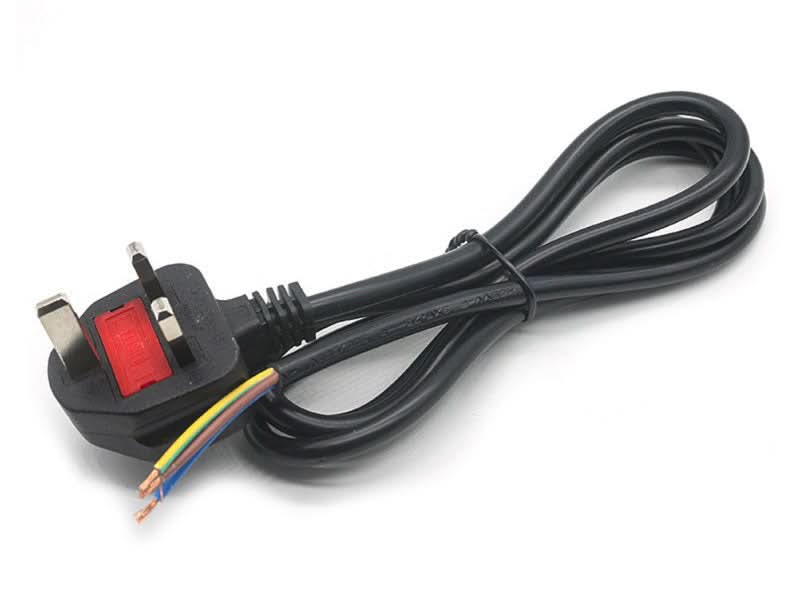

UK Plug Cable | With Cable 1.5m

Only 3 left!

Regular Price
Sale Price
Regular Price
Sold Out
Unit Price

Product Details
  • Variant: 5V 40A / With Cable 1.5m
  • SKU: LRS-200-5
  • In Stock: 3

Power Supply 5V 40A /...

Regular Price
Sale Price
Regular Price
Sold Out
Unit Price


5V 40A

UK Plug Cable

With Cable 1.5m


At the heart of every successful project lies a robust power supply, and Mean Well delivers nothing short of excellence. Engineered with precision and built to endure, our power supplies are trusted by professionals worldwide for their unparalleled reliability and unwavering performance.


  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • No load power consumption<0.5W
  • High efficiency, long life, and high reliability
  • 3 years warranty



  • DC Voltage: 5V, 12V, 24V
  • Rated Current: 40A, 17A, 8.8A
  • Current Range: 0 ~ 40A
  • Rated Power: 200W
  • Ripple & Noise (max) [Note 2]: 150mVp-p
  • Voltage Adj. Range: 4.5 ~ 5.5V
  • Voltage Tolerance [Note 3]: ±2.0%
  • Line Regulation [Note 4]: ±0.5%
  • Load Regulation [Note 5]: ±2.0%
  • Setup, Rise Time: 1200ms, 50ms/230VAC; 1300ms, 50ms/115VAC at full load
  • Hold Up Time (Typ.): 16ms/230VAC; 12ms/115VAC at full load


  • Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC by switch; 240 ~ 370VDC (switch on 230VAC)
  • Frequency Range: 47 ~ 63Hz
  • Efficiency (Typ.): 87.0%
  • AC Current (Typ.): 4A/115VAC; 2.2A/230VAC
  • Inrush Current (Typ.): COLD START 60A/115VAC 60A/230VAC
  • Leakage Current: <2mA / 240VAC


  • Overload: 110 ~ 140% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed
  • Over Voltage: 5.75 ~ 6.75V; Protection type: Hiccup mode, recovers automatically after fault condition is removed


  • Working Temperature: -25 ~ +70°C (Refer to "Derating Curve")
  • Working Humidity: 20 ~ 90% RH non-condensing
  • Storage Temperature, Humidity: -40 ~ +85°C, 10 ~ 95% RH
  • Temperature Coefficient: ±0.03%/°C (0 ~ 50°C)
  • Vibration: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along the X, Y, and Z axes

SAFETY & EMC [Note 6]:

  • Safety Standards: UL60950-1, BSMI CNS14336-1, EAC TP TC 004 approved
  • Withstand Voltage: I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
  • EMC Emission: Compliance to BSMI CNS13438, EAC TP TC 020
  • EMC Immunity: Compliance to EAC TP TC 020


  • MTBF: 347.5Khrs min. MIL-HDBK-217F (25°C)
  • Dimension: 215*115*30mm (L*W*H)
  • Weight: 0.66kg


  1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature
  2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor
  3. Tolerance: includes set up tolerance, line regulation, and load regulation
  4. Line regulation is measured from low line to the high line at rated load
  5. Load regulation is measured from 0% to 100% rated load
  6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to an increase of the set-up time.
  7. The 150% peak load capacity is built in for up to 1 second for 12~48V. LRS-200 will enter hiccup mode if the peak load is delivered for over 1 second and will recover once it resumes to the rated current level (115VAC/230VAC)
  8. The ambient temperature derating of 5°C/1000m is needed for operating altitude higher than 2000m(6500ft)
  9. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions:
    • the end devices are used by the European Union, and
    • the end devices are connected to the public main supply with 220VAC or greater rated nominal voltage, and
    • the power supply is:
      • installed in end-devices with average or continuous input power greater than 75W, or
      • belong to part of a lighting system
  10. Exception:
    • Power supplies used within the following end devices do not need to fulfill EN61000-3-2
      • professional equipment with a total rated input power greater than 1000W;
      • symmetrically controlled heating elements with a rated power less than or equal to 200W


  • 1x Power Supply 5V 40A / 12V 17A / 24V 8.8A
